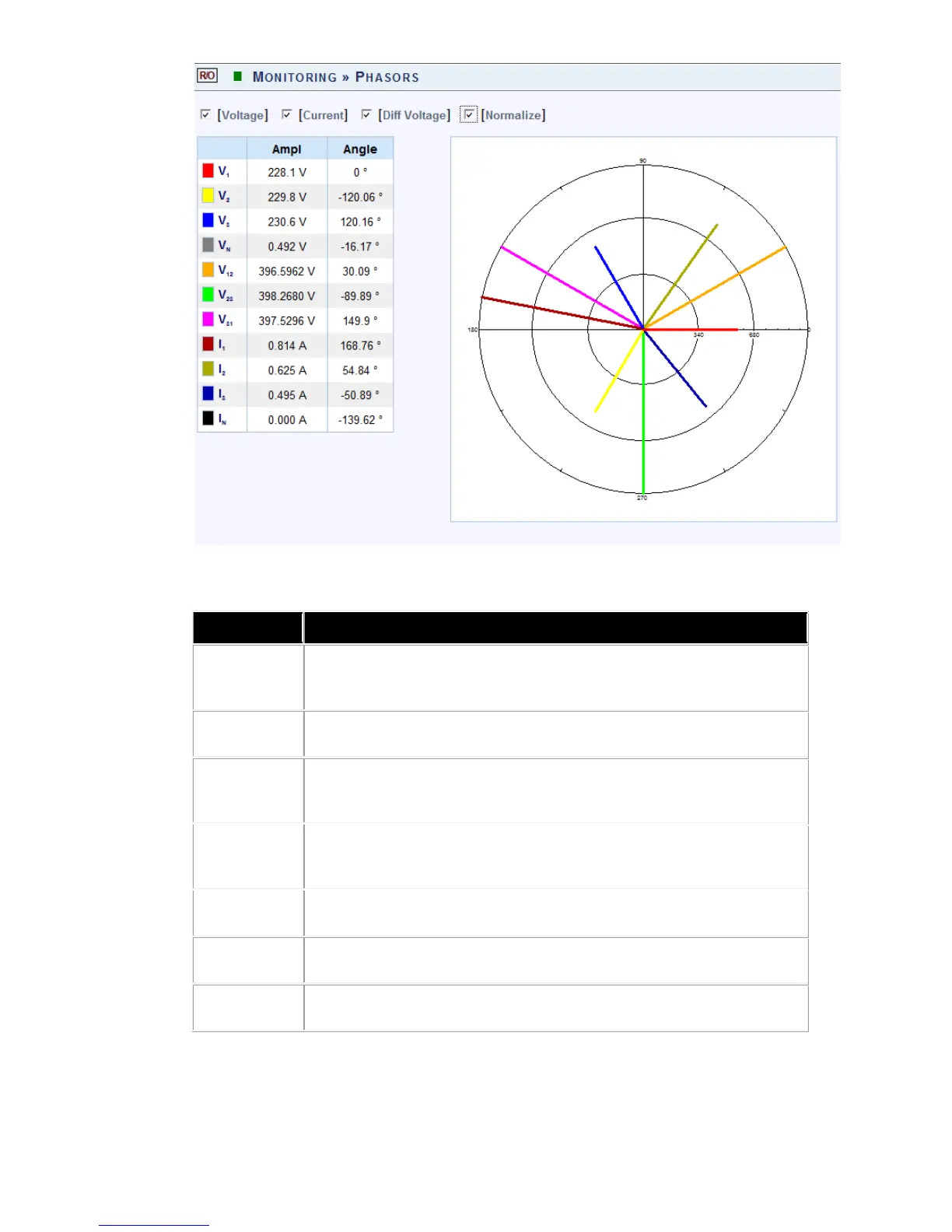

The Phasor Window will now open:
The table outlines the sections' Parameter options (for your selection)
including their Definition:
Displays Voltage Phase to Neutral Phasor (only present with
WYE 4 Wire configuration)
Current Displays Phase Current
Diff
Voltage
Displays the Phase to Neutral Voltages Phasor
Diff
Current
Displays the Phase to Phase Current (only present with Delta
3 Wire configuration)
Normalize Displays the all vector as part of the largest vector
Ampl The Amplitude of each Phasor
Angle V1 /V12 is at 0
0
, all other vectors are in relation to V1 /V12
