3. Grasp the lower cover by the ODD bay (B) and lift the upper cover up to release the latches securing
it to the lower cover. (Figure 3-18)

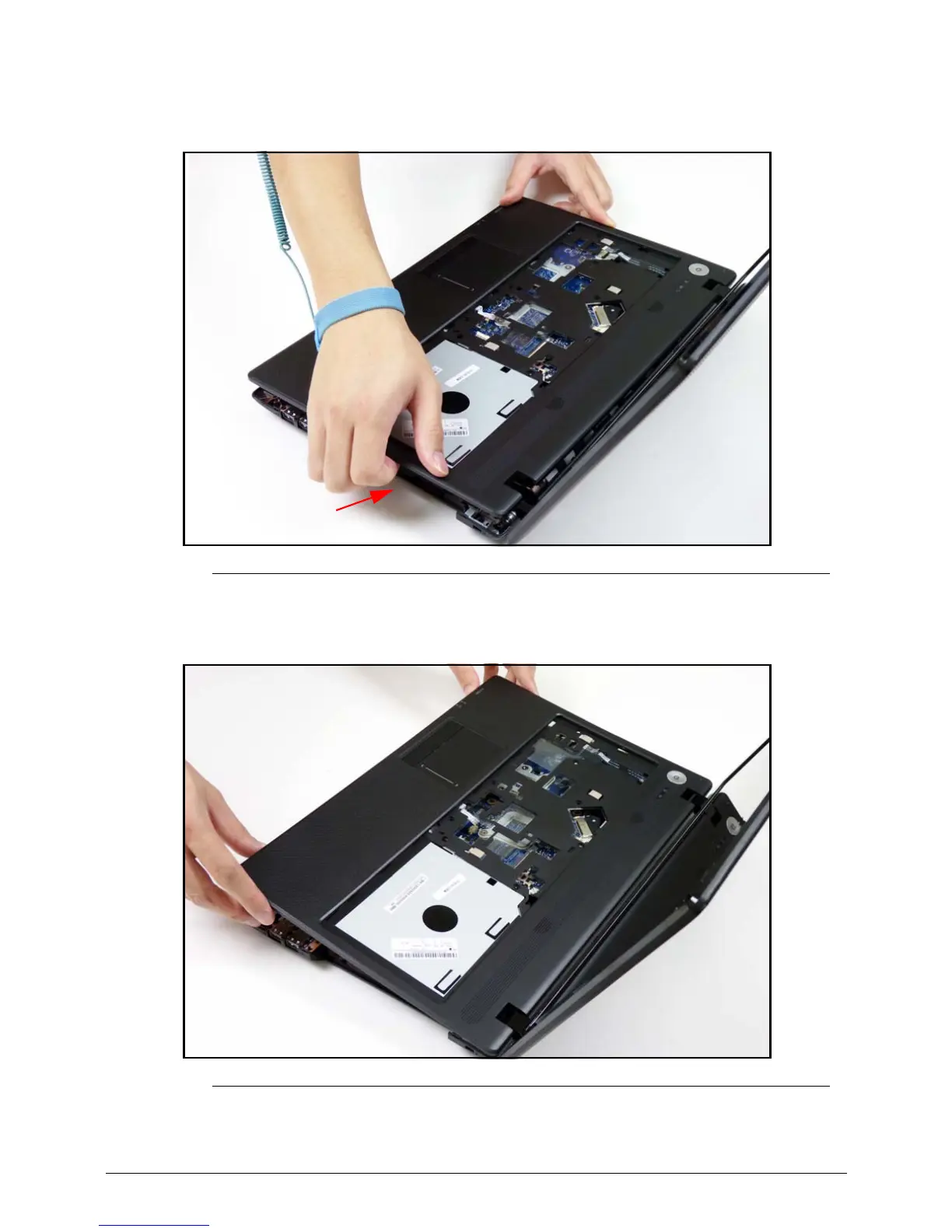

Figure 3-18. Lower Cover Removal
4.
Continue lifting along the edges of the upper cover to release the latches. (Figure 3-19)
Figure 3-19. Lower Cover Removal
5. Remove the upper cover from the lower cover.
