Machine Maintenance Procedures 3-31
Bluetooth Board Removal 0
Prerequisite:
Upper Cover Removal
1. Find Bluetooth board (B) on upper cover. (Figure 3-24)
2. Disconnect Bluetooth cable (B) from Bluetooth board connector (A). (Figure 3-27)

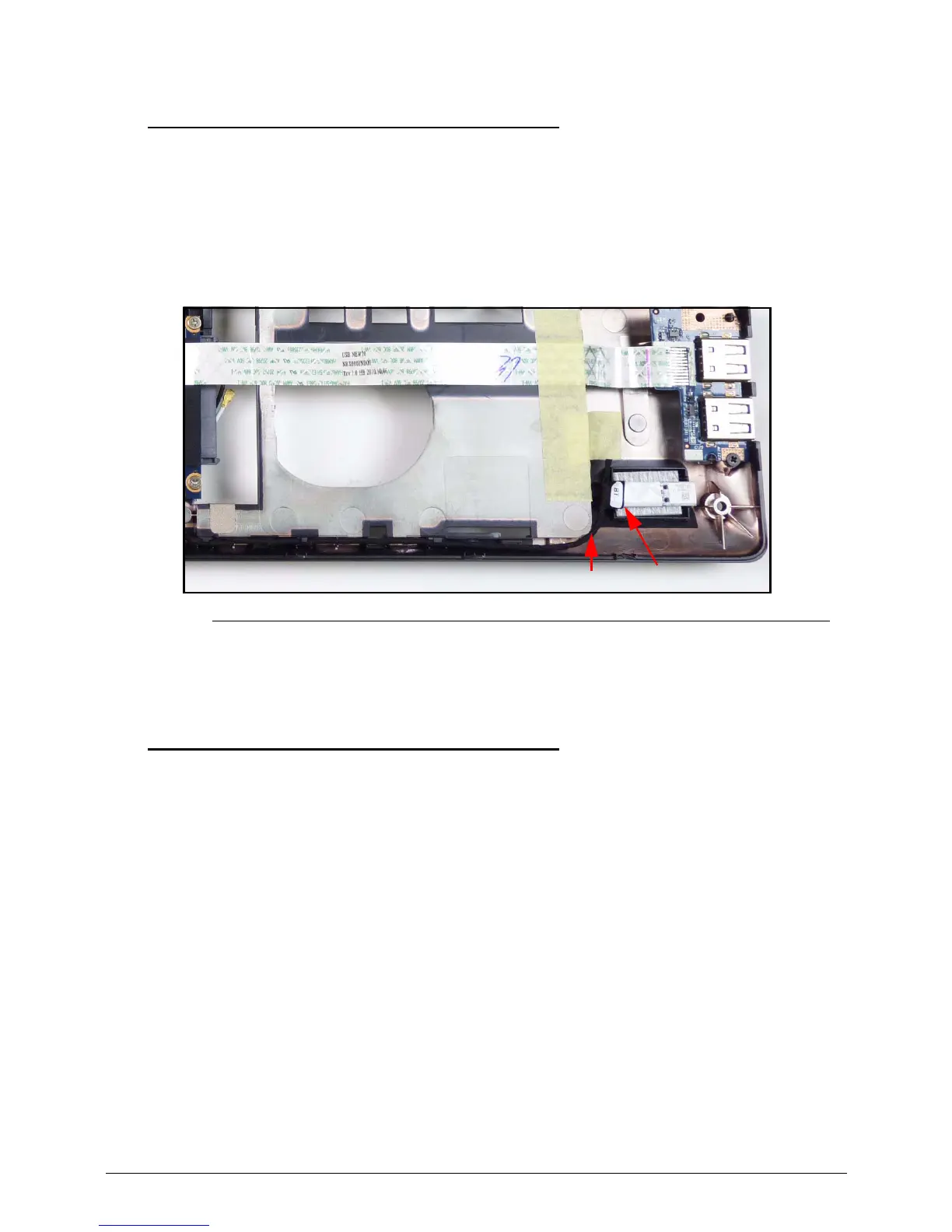

Figure 3-27. Bluetooth Module
3. Remove the Bluetooth board from the lower cover. (Figure 3-27)
Bluetooth Board Installation 0
1. Connect Bluetooth cable (B) to Bluetooth board connector (A). (Figure 3-27)
2. Install and secure Bluetooth board to lower cover. (Figure 3-27)
3. Install upper cover.
