eMachines E644G - Power Board Removal; Power Board Installation

3-26 Machine Maintenance Procedures
Power Board Removal 0
Prerequisite:
Upper Cover Removal
1. Find power board (B) on upper cover. (Figure 3-20)
2. Remove power board FFC (Flat Flex Cable) (A) from upper cover. (Figure 3-22)
3. Remove one (1) screw (B). (Figure 3-22)

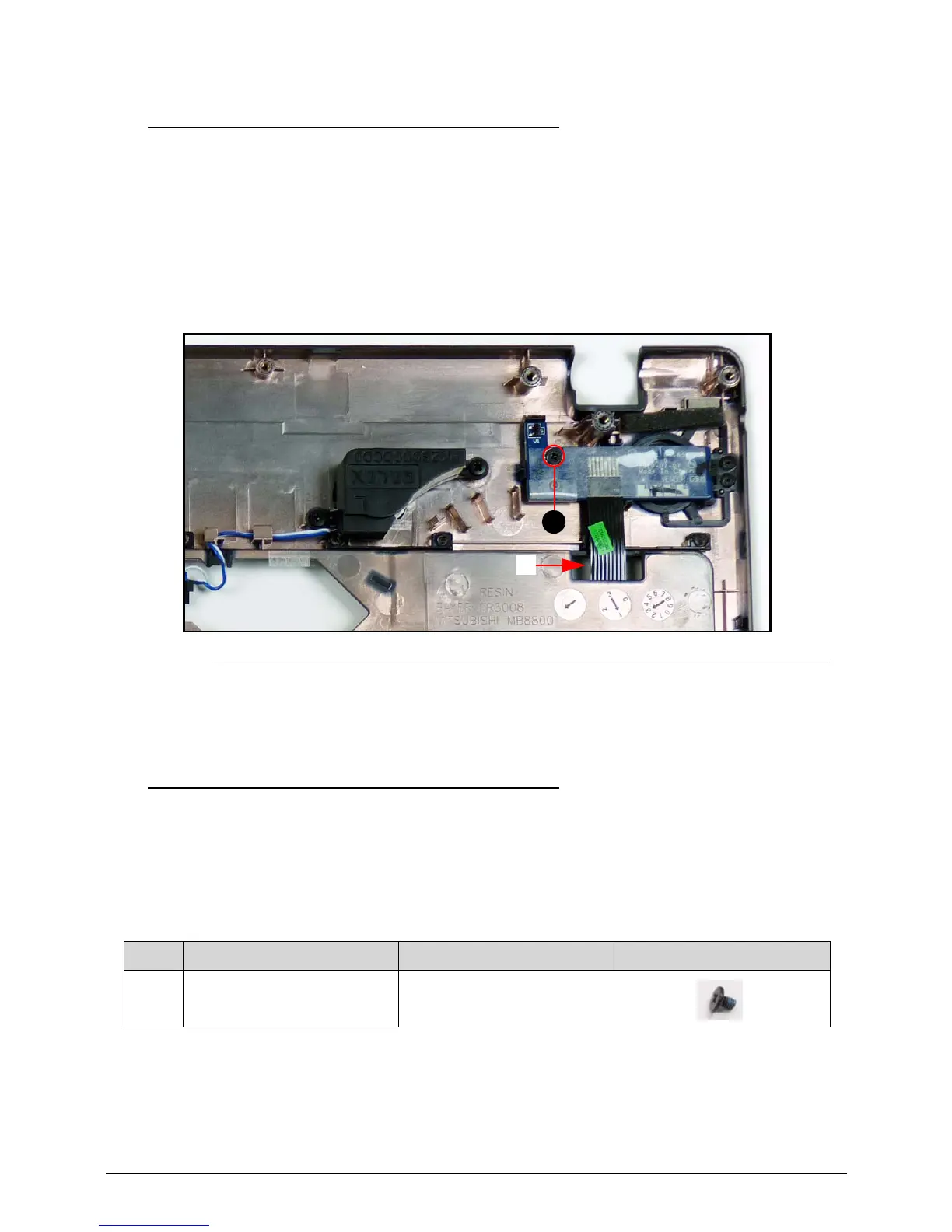

Figure 3-22. Power Board
4. Remove power board from upper cover.
Power Board Installation 0
1. Install power board (B) on upper cover. (Figure 3-20)
2. Install power board FFC (A) on upper cover. (Figure 3-22)
3. Install and secure one (1) screw (B) to lower cover. (Figure 3-22)
4. Install upper cover.
ID Size Quantity Screw Type
B M2.5*3.0 1
B
A
