eMachines E644G - Exploded Diagrams

6-4 FRU (Field Replaceable Unit) List
Exploded Diagrams 0

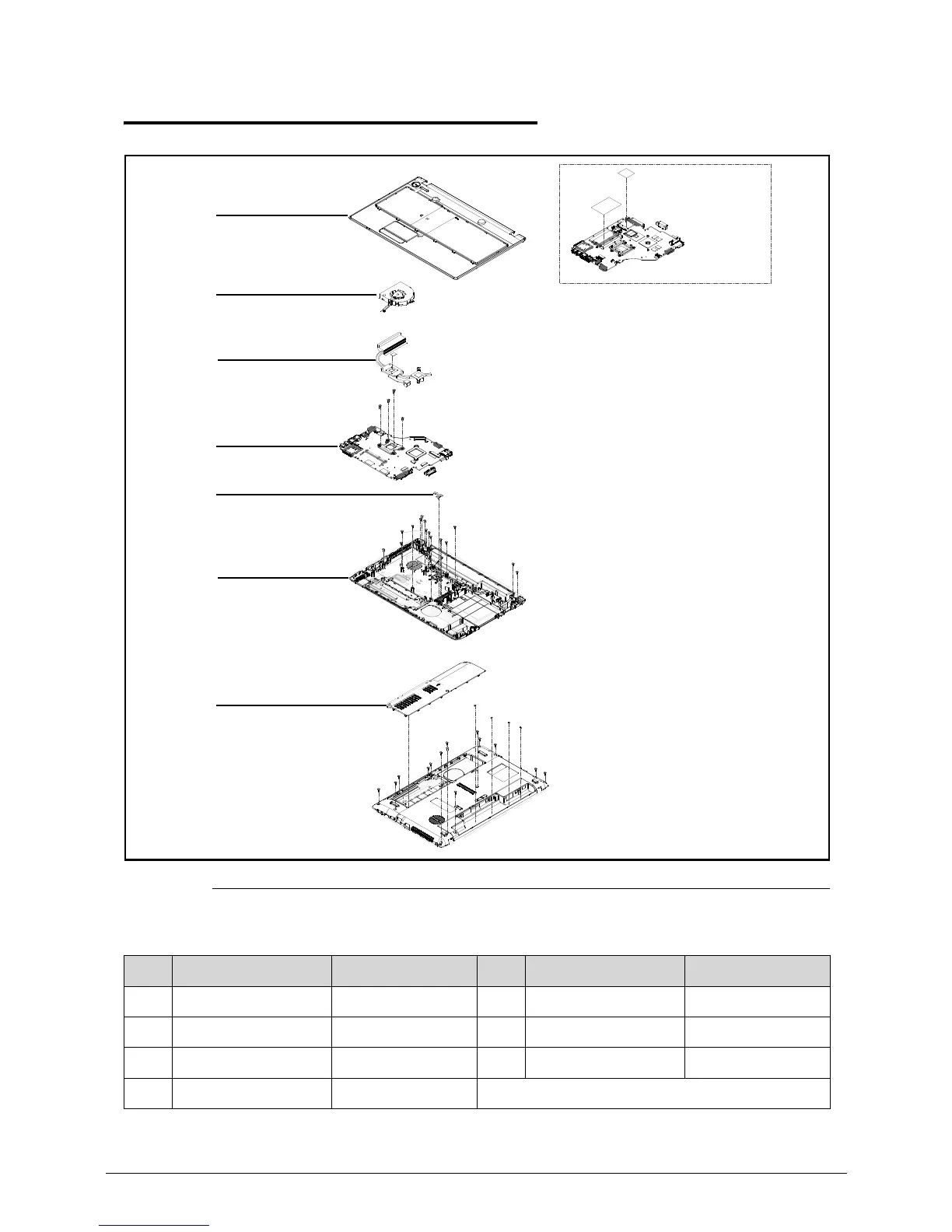

Figure 6-1. Upper & Lower Cover Exploded Diagram
Table 6-1. Upper & Lower Cover Exploded Diagram
No. Description Acer Part No. No. Description Acer Part No.
1 Upper Cover 60.NCV02.001 5 ODD Board 55.WVZ02.003
2 Fan 23.RD502.001 6 Lower Cover 60.R4F02.002
3 Heatsink 60.RDS02.001 7 Lower Logic Door 42.R4F02.001
4 Mainboard MB.NCY02.001
1
2
3
4
5
6
7
