eMachines E644G - WLAN (Wireless Local Area Network) Board Removal; WLAN Board Installation

Machine Maintenance Procedures 3-17
WLAN (Wireless Local Area Network) Board Removal 0
Prerequisite:
Base Door Removal
1. Find WLAN board (B) in the component bay. (Figure 3-10)
2. Disconnect main (B) and auxiliary (A) antenna cables from WLAN board. (Figure 3-12)

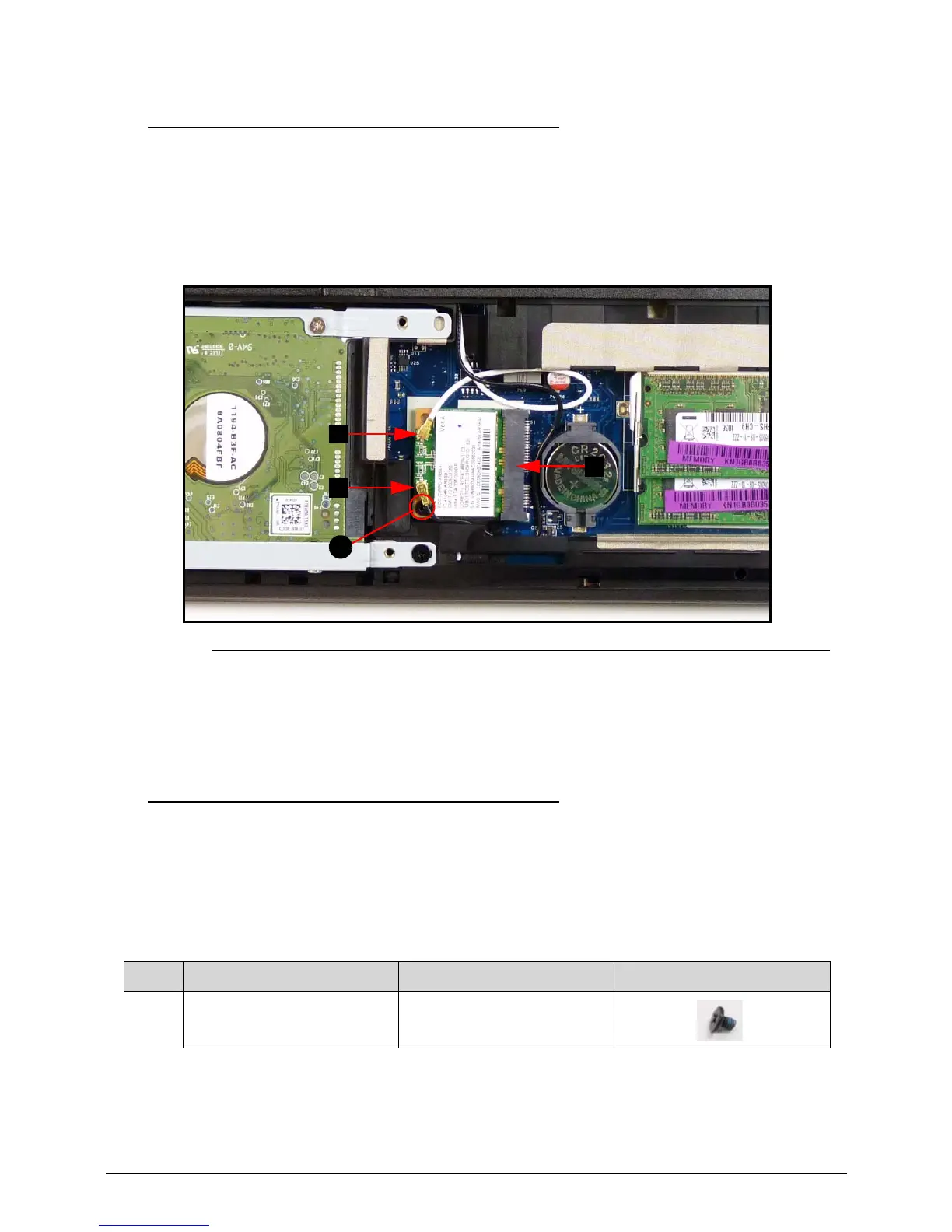

Figure 3-12. WLAN Board
3. Remove one (1) screw (C). (Figure 3-12)
4. Remove WLAN board from mainboard connector (D). (Figure 3-12)
WLAN Board Installation 0
1. Put WLAN board into mainboard connector (D). (Figure 3-12)
2. Install and secure one (1) screw (D). (Figure 3-12)
3. Install main (B) and auxiliary (A) antenna cables on WLAN board. (Figure 3-12)
4. Install base door.
ID Size Quantity Screw Type
D M2.5*3.0 1
C
A
B
D
