Jumper and Connector Locations 5-3
Jumper and Connector Locations
Mainboard Jumper and Connector Locations 0

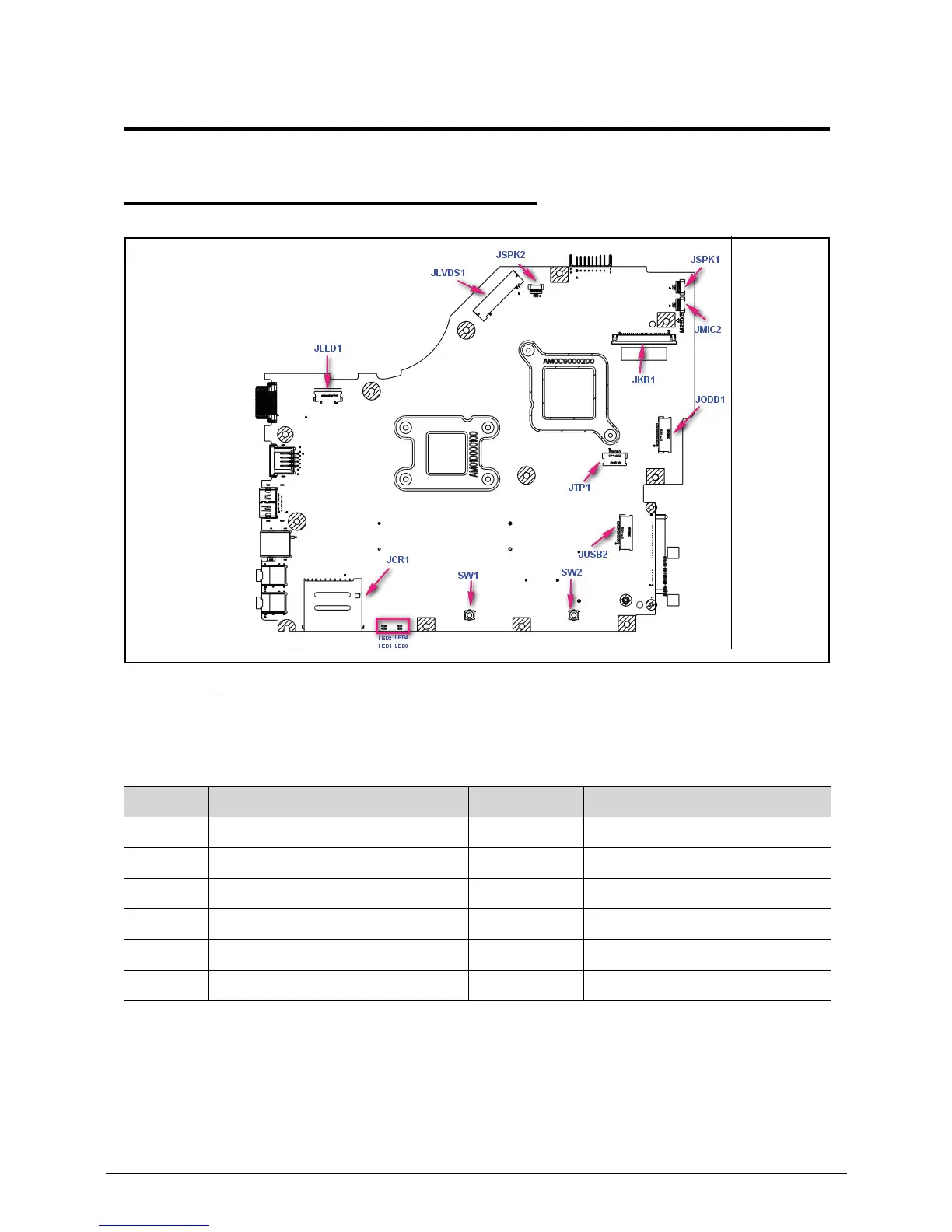

Figure 5-1. Mainboard Top
Table 5-1. Mainboard Top
Item Description Item Description
JLVDS1 Connect to LED / CCFL Panel JCR1
Connector of 2 in 1 Card Reader
JSPK1 Connect to Right Speaker JLED1
Connect to Power board (with FFC)
JSPK2 Connect to Left Speaker JMIC2 Connect to Internal MIC
JKB1 Connect to Keyboard SW1 / SW2 Left button / Right button
JTP1
Connect to Touchpad (with FFC)
LED1 / LED2 Power State Indicator
JUSB2 Connect to USB board (with FFC) LED3 / LED4 Battery Charging Indicator
