3-54 Machine Maintenance Procedures
WLAN Antenna Removal 0
Prerequisite:
LCD Panel Removal
1. Remove black (B) and white (A) WLAN antennas. (Figure 3-52)

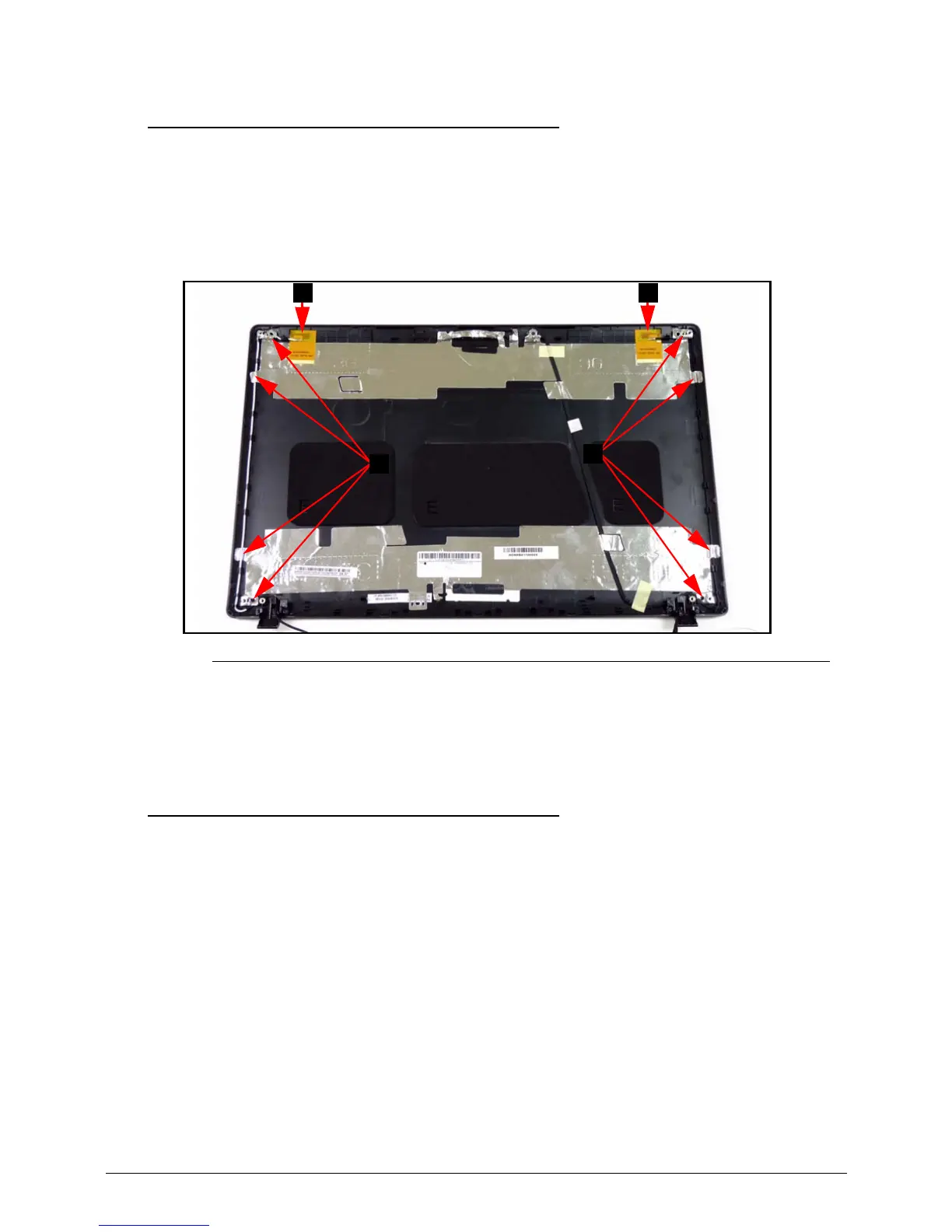

Figure 3-52. WLAN Antenna
2. Lift foil (C) from antenna cables. (Figure 3-52)
3. Remove antenna cables from cable guides. (Figure 3-52)
WLAN Antenna Installation 0
1. Put antenna cables into cable guides. (Figure 3-52)
2. Replace foil (C) to secure antenna cables. (Figure 3-52)
3. Put black (A) and white (B) antennas onto LCD cover. (Figure 3-52)
4. Install LCD panel.
