eMachines E644G - LCD (Liquid Crystal Display) Module Removal

Machine Maintenance Procedures 3-39
LCD (Liquid Crystal Display) Module Removal 0
Prerequisite:
Mainboard Removal

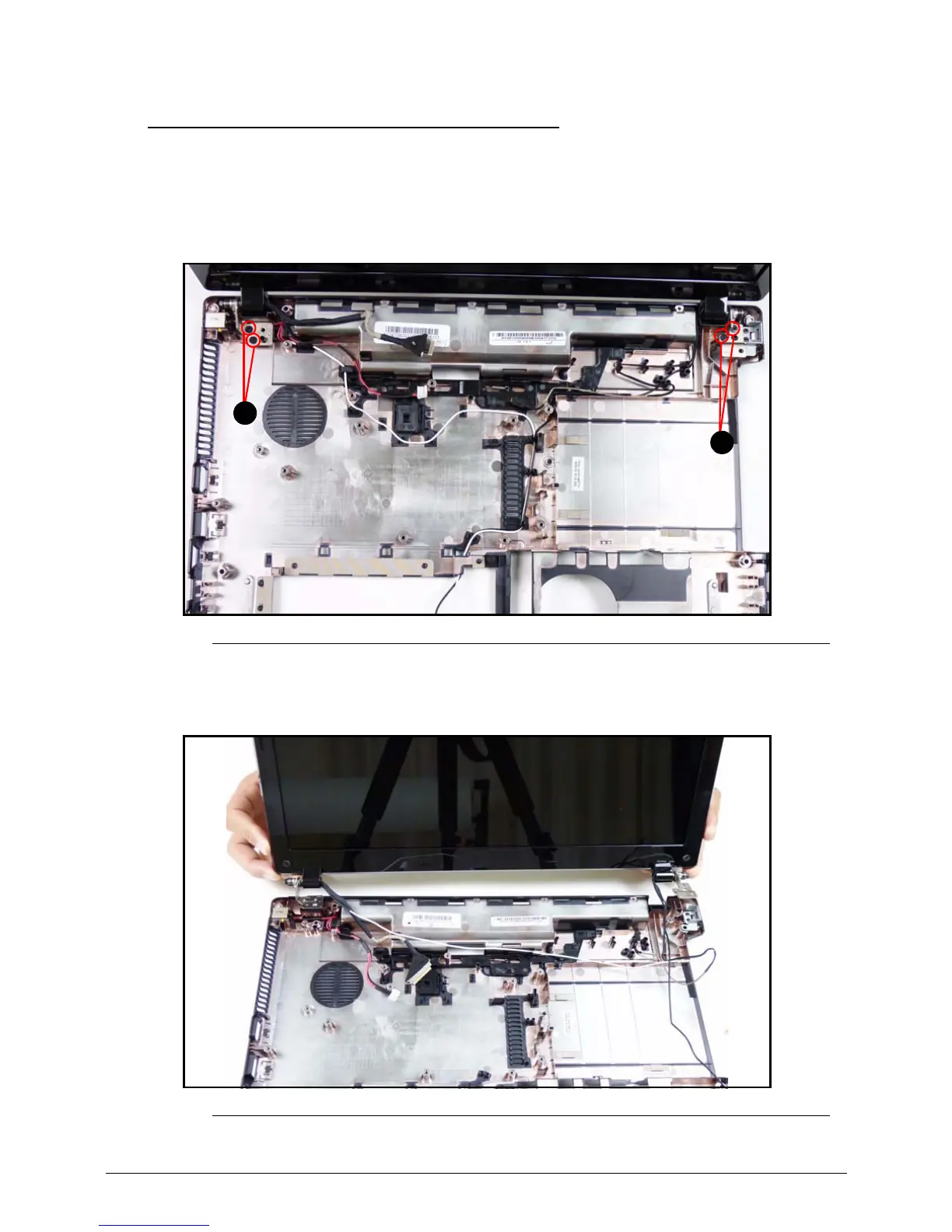

1. Remove four (4) screws (A) from LCD hinges. (Figure 3-36)
Figure 3-36. LCD Hinge Screws
2. Remove the upper cover from the LCD module. (Figure 3-37)
Figure 3-37. LCD Module
A
A
