ODD Board Removal 0
Prerequisite:
Upper Cover Removal
1. Find ODD board (C) on lower cover. (Figure 3-24)
2. Disconnect ODD board FFC from mainboard connector (A). (Figure 3-26)

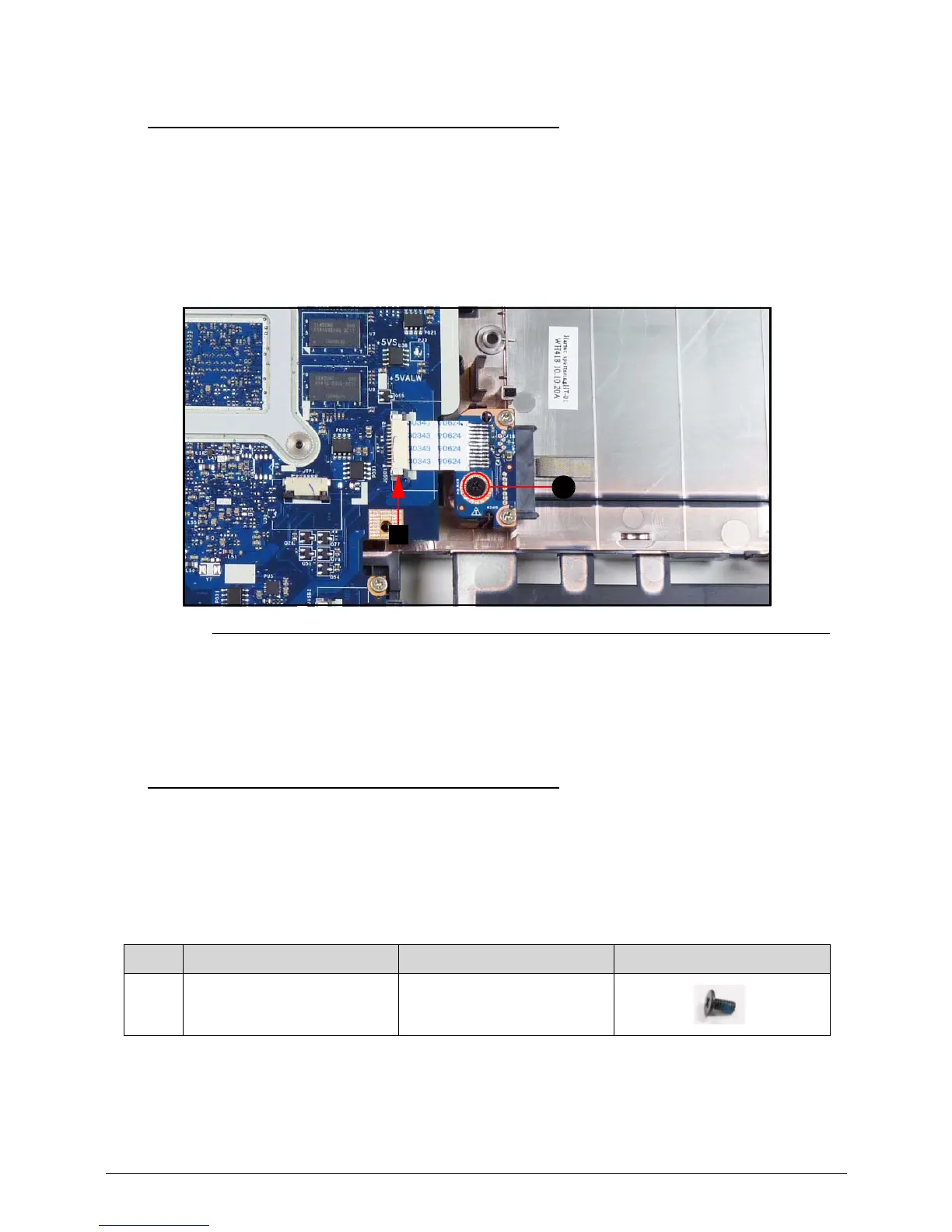

Figure 3-26. ODD Board
3. Remove screw (B) from lower cover. (Figure 3-26)
4. Remove ODD board from lower cover.
ODD Board Installation 0
1. Install USB module (C) on lower cover. (Figure 3-24)
2. Install and secure screw (B) to lower cover. (Figure 3-26)
3. Connect ODD board FFC to mainboard connector (A). (Figure 3-26)
4. Install upper cover.
ID Size Quantity Screw Type
B M2.5*5.0 1
B
A
