Machine Maintenance Procedures 3-13
ODD Module Installation 0
1. Install ODD bezel (E) on ODD module.(Figure 3-8)
2. Install ODD bracket (D) on ODD module and secure two (2) screws (C). (Figure 3-8)
3. Insert ODD module (B) into ODD module bay. (Figure 3-7)
4. Install and secure screw (A) to lower cover. (Figure 3-7)
5. Install battery.

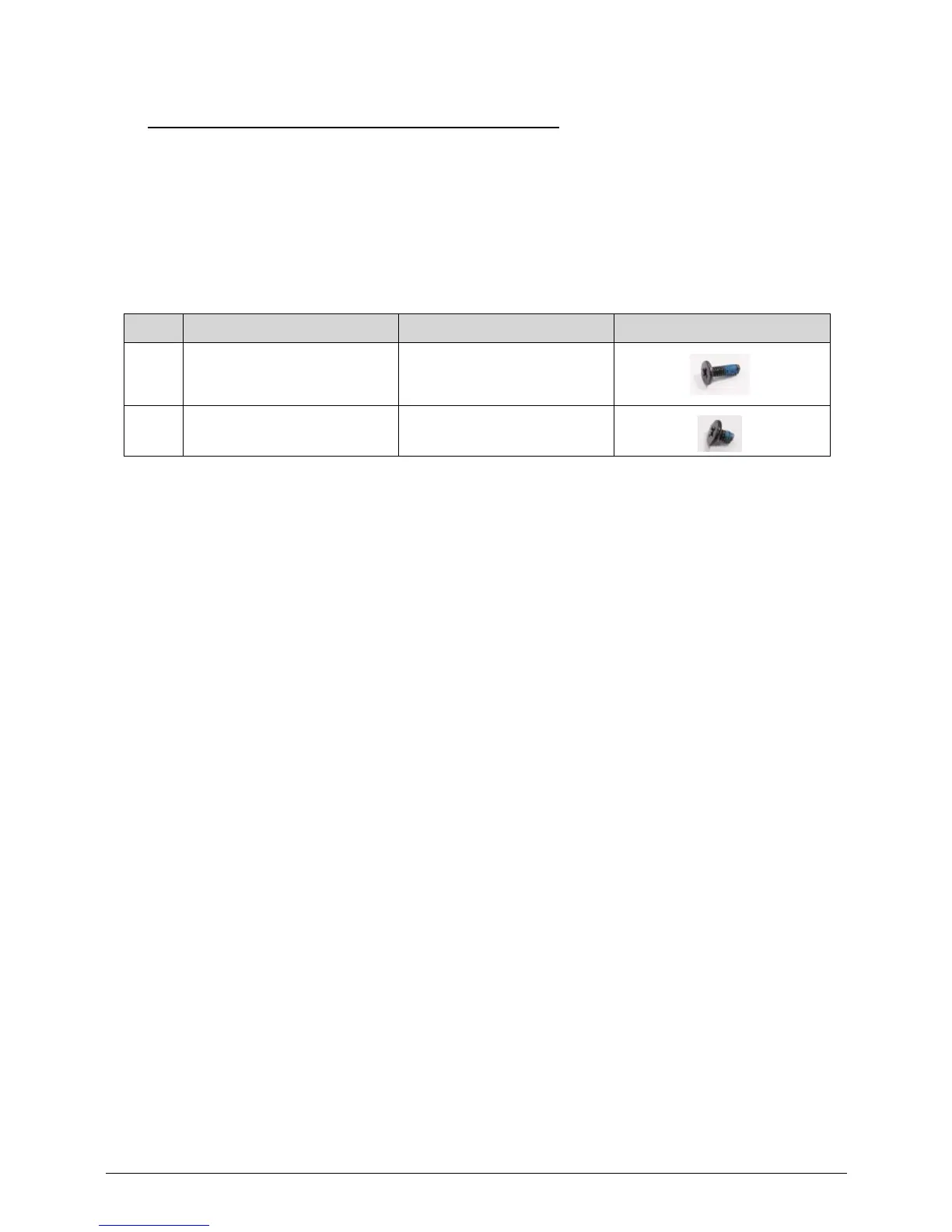

ID Size Quantity Screw Type
A M2.5*6.0 1
C M2.0*3.0 2
