3-14 Machine Maintenance Procedures
Base Door Removal 0
Prerequisite:
Battery Pack Removal
1. Locate base door (B) on lower cover. (Figure 3-9)
2. Remove two (2) screws (A). (Figure 3-9)
3. Remove door from lower cover.

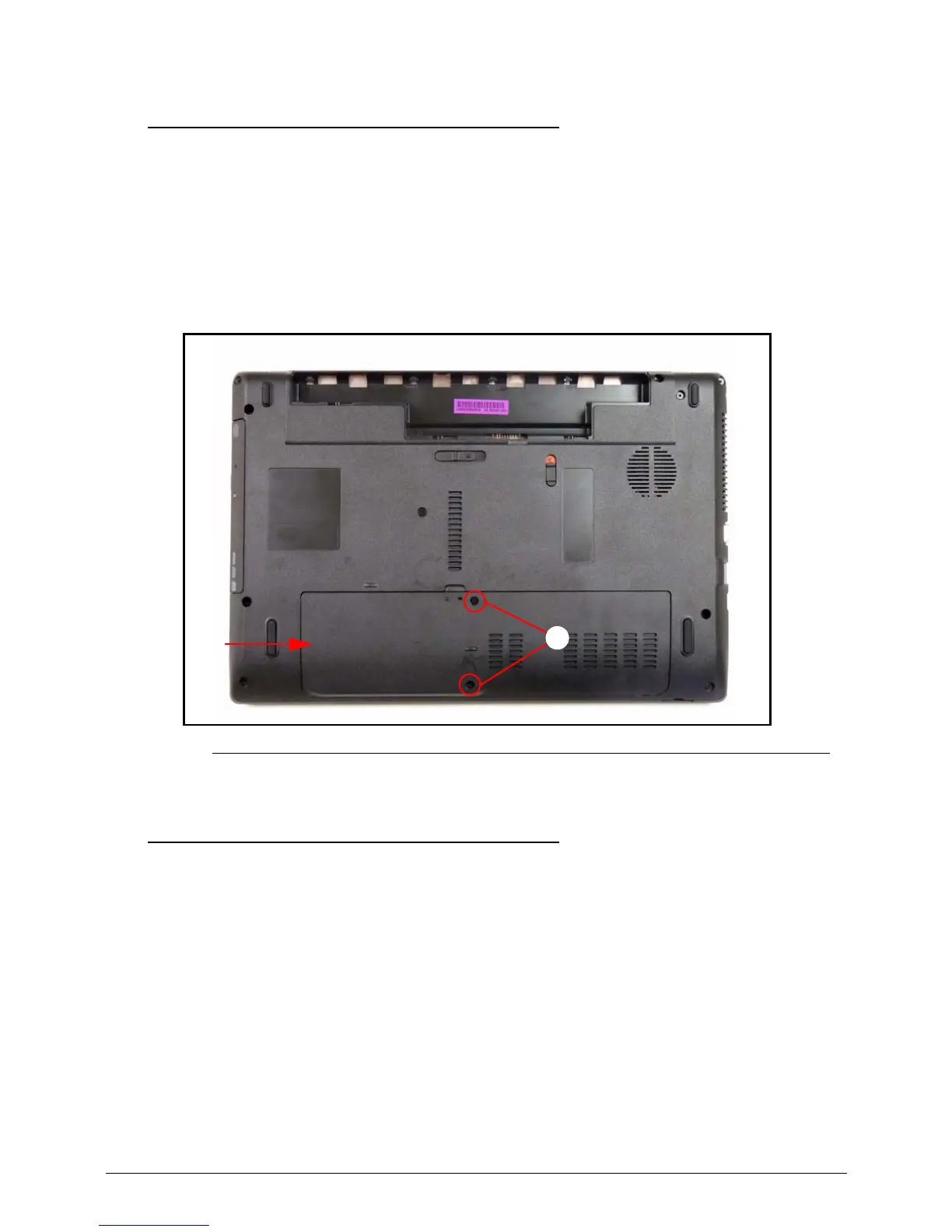

Figure 3-9. Base Door
Base Door Installation 0
1. Insert door flanges into slots (B) on lower cover. (Figure 3-9)
2. Secure door to lower cover with two (2) screws (A). (Figure 3-9)
3. Install battery pack.
