eMachines E644G - Page 177

FRU (Field Replaceable Unit) List 6-5

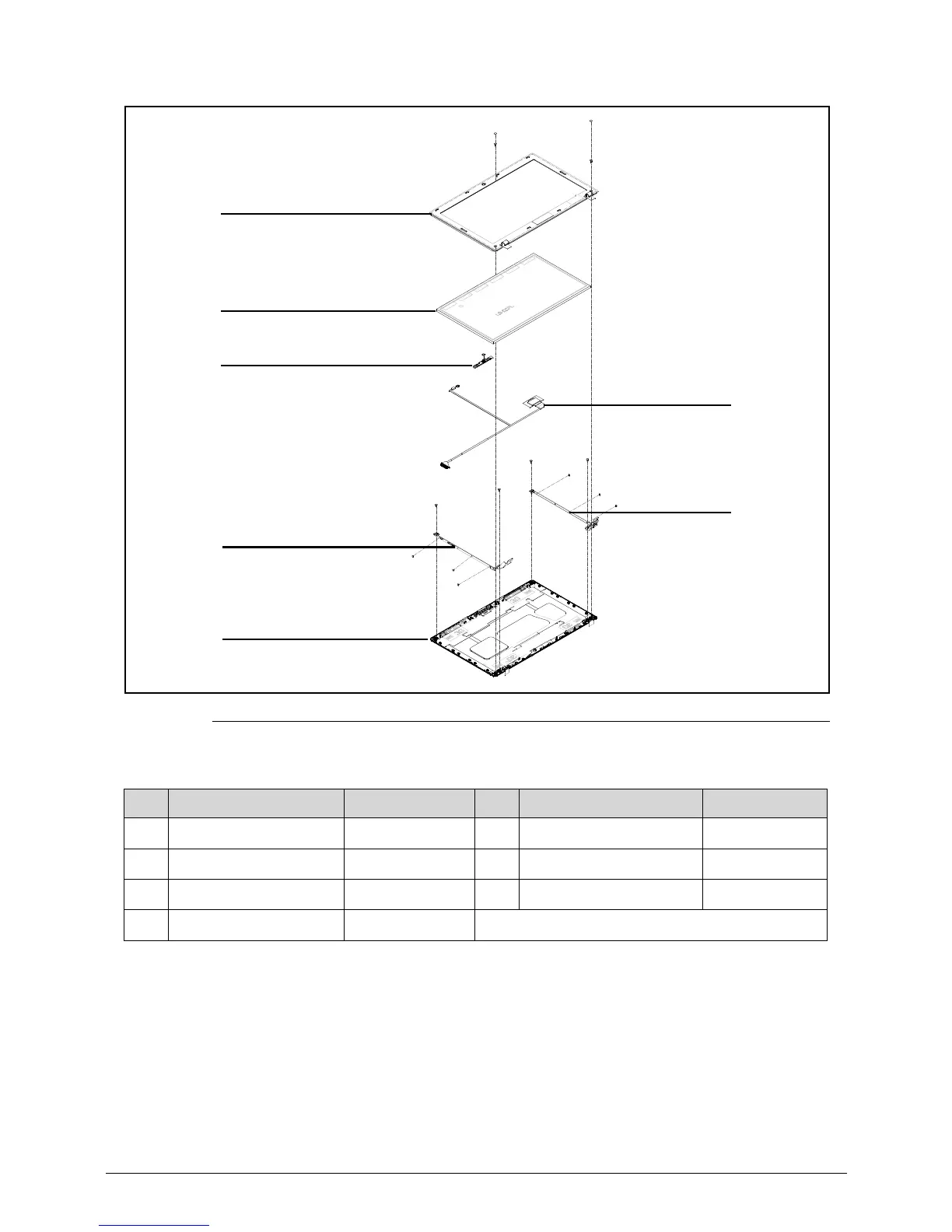

Figure 6-2. LCD Assembly Exploded Diagram
Table 6-2. LCD Assembly Exploded Diagram
No. Description Acer Part No. No. Description Acer Part No.
1 LCD Bezel 60.BQ502.004 5 LCD Cover 60.BQ502.003
2 LED Panel LK.15605.010 6 LVDS w/ Camera 50.R4F02.009
3 Camera 57.WW102.001 7 LCD Bracket (R) 33.R4F02.004
4 LCD Bracket (L) 33.R4F02.004
1
2
3
4
5
6
7
