Emotron VSB Instruction Manual Chapter 6 Specification of Parameters
Parameter values 2 - 6 apply to torque-dropped loads such as fans and water pumps. See Fig.
6-31.

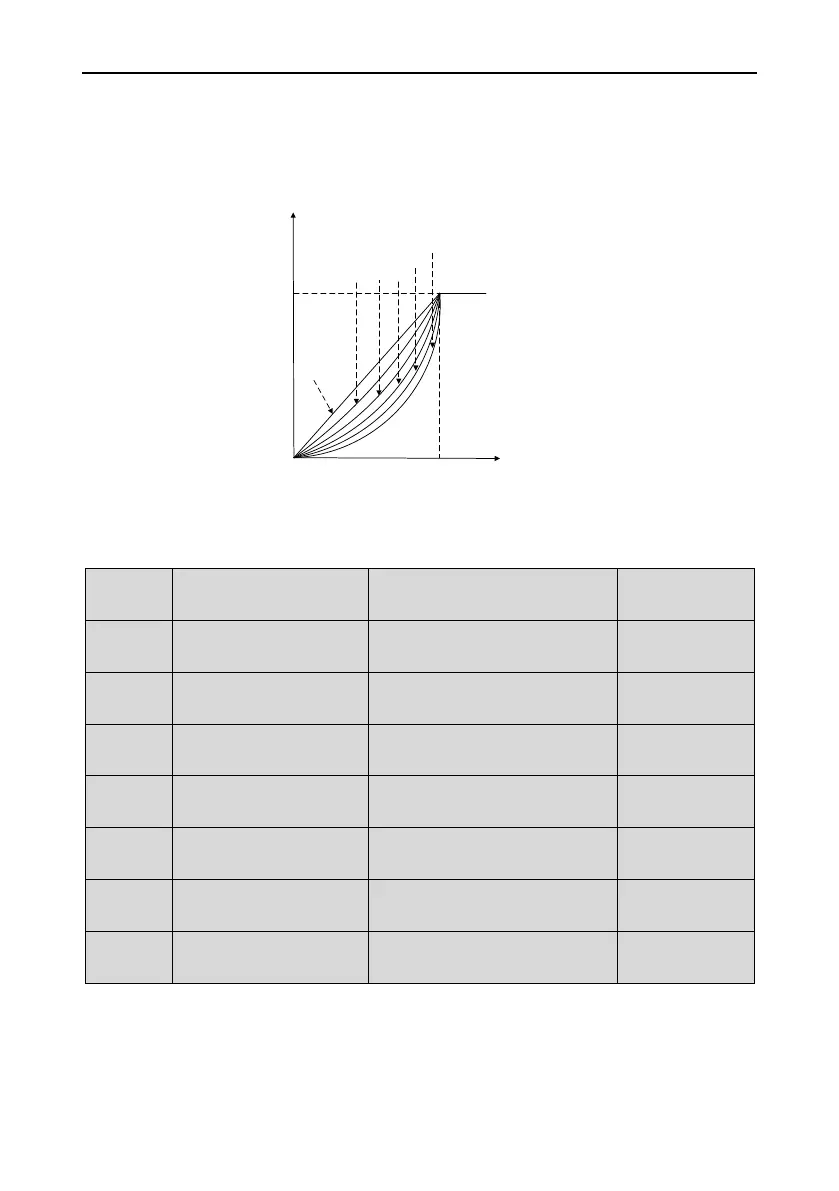

Fig. 6-31 1.2 - 2.0 power V/f curve
d1-01 V/f frequency value f3
Range: 0.00Hz - rated
frequency of motor
Factory default:
50.00Hz
d1-02 V/f voltage value V3 Range: 0.0% - 100.0%
Factory default:
100.0%
d1-03 V/f frequency value f2 Range: d1-05 - d1-01
Factory default:
0.00Hz
d1-04 V/f voltage value V2 Range: 0.0% - 100.0%
Factory default:
0.0%
d1-05 V/f frequency value f1 Range: d1-07 - d1-03
Factory default:
0.00Hz
d1-06 V/f voltage value V1 Range: 0.0% - 100.0%
Factory default:
0.0%
d1-07 V/f frequency value f0 Range: 0.00Hz - d1-05
Factory default:
0.00Hz
d1-08 V/f voltage value V0 Range: 0.0% - 100.0%
Factory default:
0.0%
d1-01 - d1-08 is used for broken line V/f mode. Voltage value 100% corresponds to rated
voltage of motor. Please rationally set the values of frequency and voltage at knees on the
basis of characteristics of motor and load. Improper setting may rise output current even burn
0
输出频率（Hz）
输出电压（V）
直线V/f
1.2次幂
1.4次幂
1.6次幂
1.8次幂
2.0次幂
电机额定电压
电机额定频率
Output voltage (V)
power
Rated voltage of motor
SL V/f
Rated frequency of
motor
Output frequency (Hz)
power
power
power
power
- 116 -
