Emotron VSB Instruction Manual Chapter 6 Specification of Parameters
b2-10 Jog Accel time Range: 0s - 60000s
Factory default:
6.0s
b2-11 Jog Decel time Range: 0s - 60000s
Factory default:
6.0s
b2-10 and b2-11 set the rate of Accel/Decel of Jog, similar with b2-01 - b2-08.
b2-12
Accel/Decele curve
Range: 0 - 2
Factory default: 0
0: Linear Accel/Decel

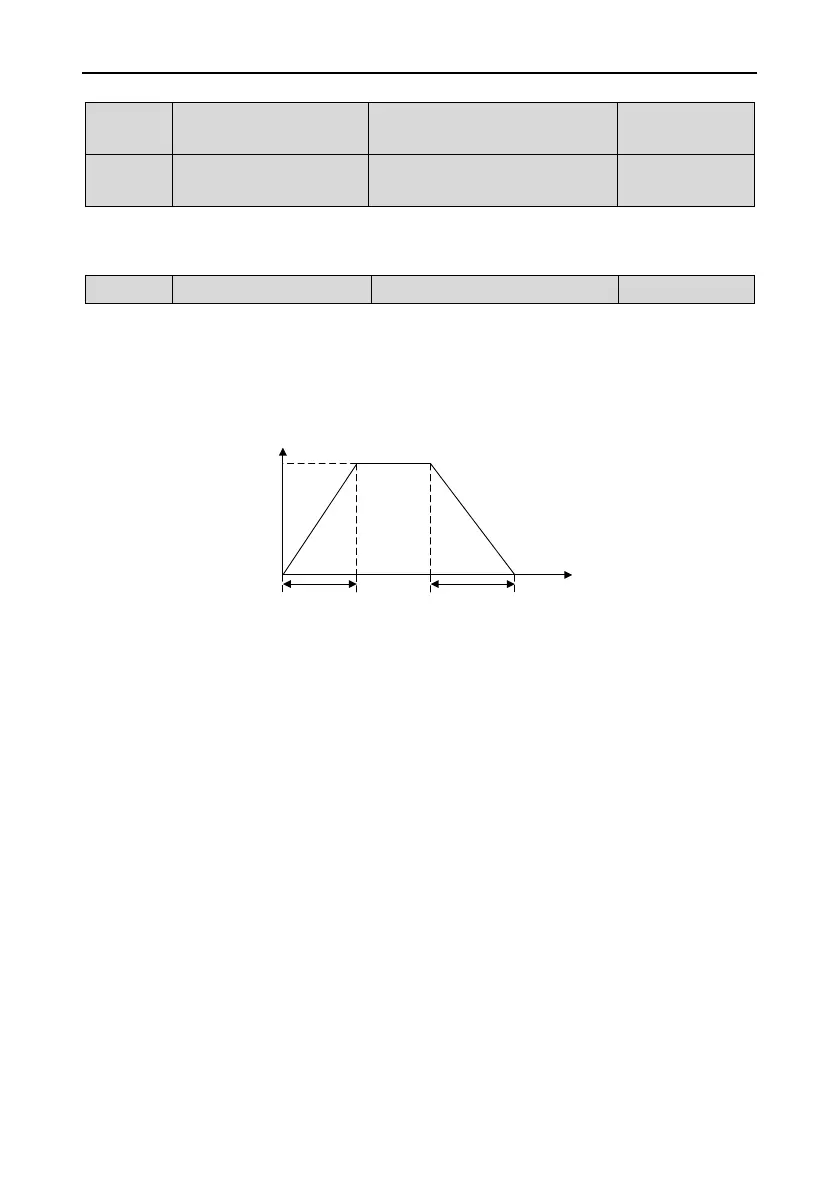

Outputs frequency increases or decreases with a constant rate as shown in Fig. 6-10.
Fig. 6-10
fmax is maximum frequency b0-08.
1: Broken-line Accel/Decel
Accel/Decel time is shifted based on output frequency during Accel/Decel.
When output frequency during Accel is higher than or equal to b2-13 (Accel time switching
frequency of broken-line Accel/Decel), b2-01 (Accel time 1) is enabled. When lower than b2-13,
b2-03 (Accel time 2) will be enabled.
When output frequency during Decel is higher than or equal to b2-14 (Decel time switching
frequency of broken-line Accel/Decel), b2-02 (Decel time 1) is enabled. When lower than b2-14,
b2-04 (Decel time 2) will be enabled.
输出频率
时间
fmax
t2
（减速时间）
t1
（加速时间）
Output frequency
Accel time
Decel time
Time
- 91 -
