Chapter 3 Installation and Wiring
3.1 Installation Environment
1） Ambient temperature is in the range of -10°C - 50°C.
2） Drive should be installed on surface of flame retardant object, with adequate surrounding
space for heat dissipation.
3） Installation should be performed where vibration is less than 5.9m/s
2
(0.6g).
4） Protect from moisture and direct sunlight.
5） Do not install in areas with
grease dirt, dust, metal particles, or salty substances
6） Do not expose to an atmosphere with flammable gases, corrosive gases, explosive gases
or other harmful gases.
3.2 Minimum Mounting Clearances
To ensure favorable heat dissipation, mount the drive upright on a flat, vertical and level surface
as per Fig. 3.1.
Emotron VSB series can be wall-mounted or DIN-rail mounted. When installation is performed
inside cabinet, the product shall be mounted side by side to the greatest extent while adequate
surrounding space shall be preserved for favorable heat dissipation.

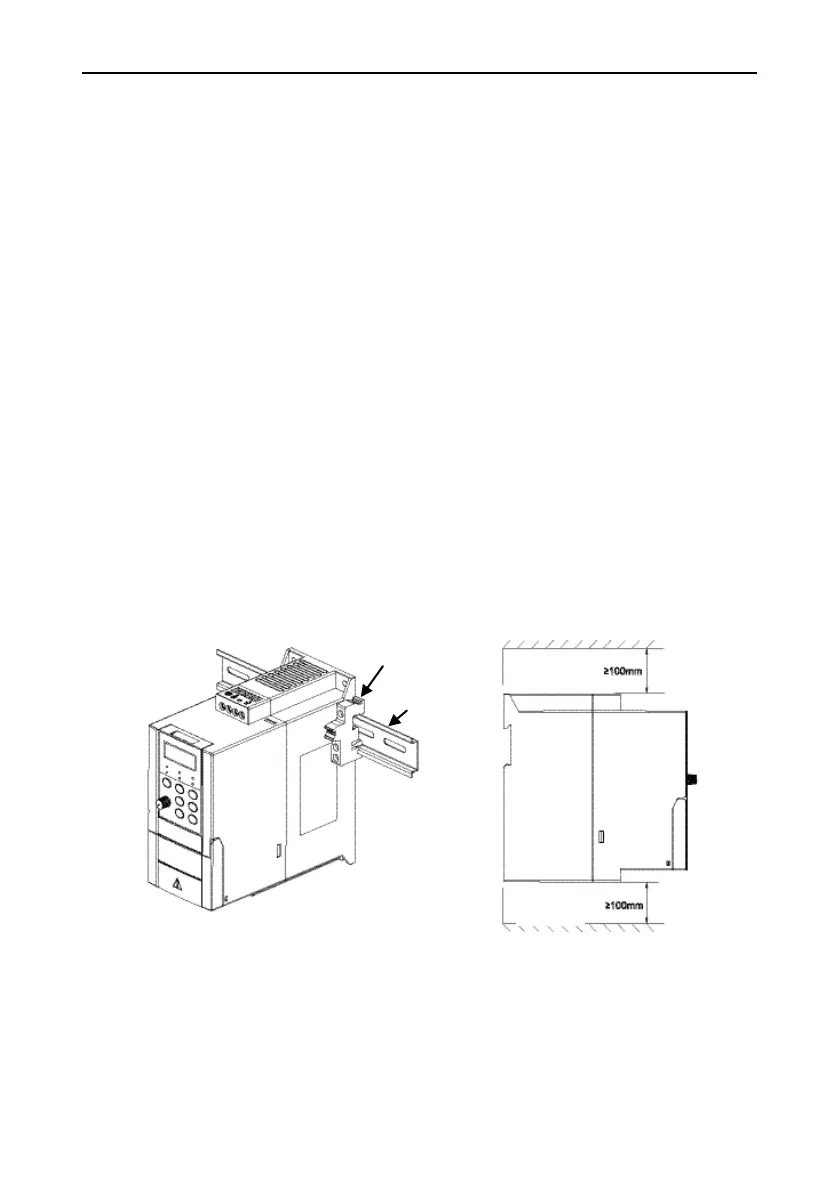

Fig. 3-1 Minimum mounting clearances
Ventilation
clearance
Ventilation
clearance
Fixing buckle
DIN-rail
- 17 -
