3.9 Control Terminal Usage
3.9.1 Lay-out of Control Terminals

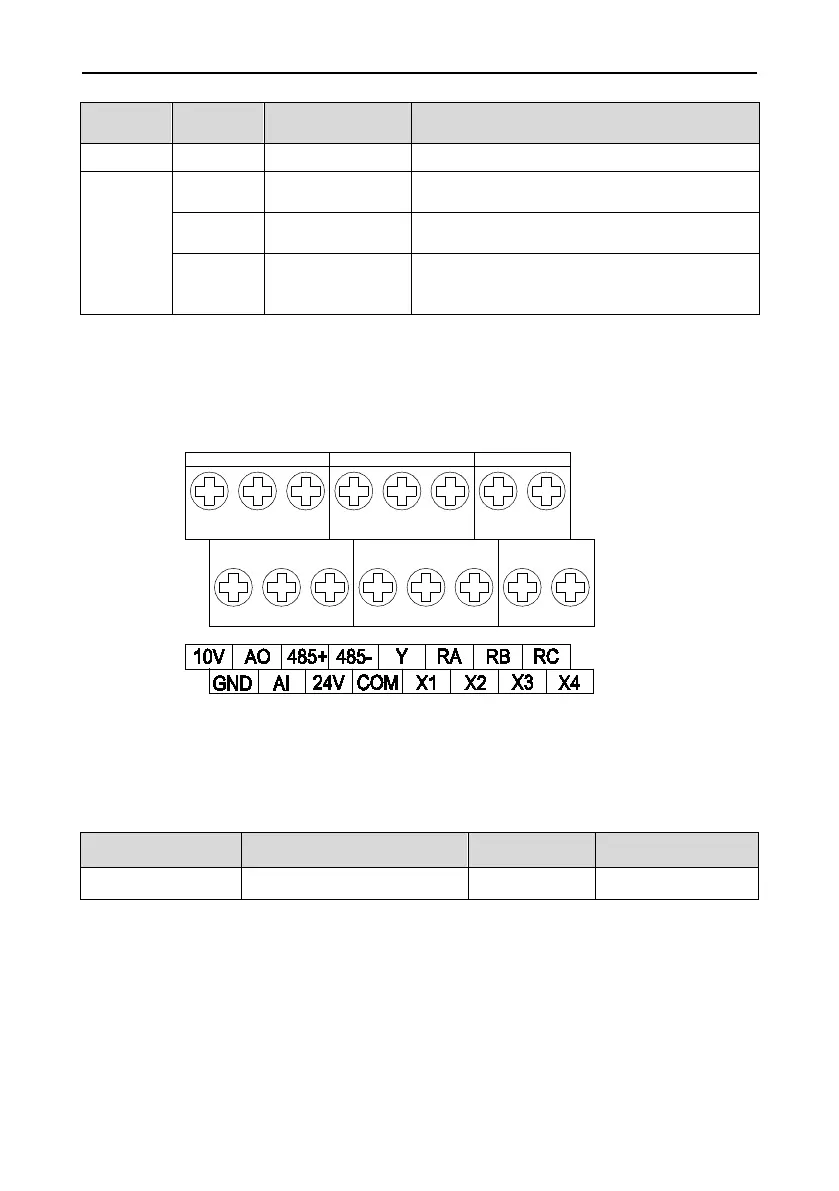

Fig. 3-8 Lay-out of control terminals
3.9.2 Control Te rm inal S crew and W iring Requirement
Table 3-4 Terminal screw and wiring specification
Cable type Cable requirement (mm
2
) Screw Torque (Nm/Lb-In)
Shielded cable 1.0 M3 0.5 / 4.3
3.9.3 Instructions of Analogue Input/Output Terminals
Being particularly vulnerable to noise, analog input & output signals cables should be as short
as possible, shielded, and their shielded layers should be properly grounded close to the side
of drive. The cables should not exceed 20m.
Control cables shall be kept no less than 20cm away from main circuit and strong current
- 27 -
