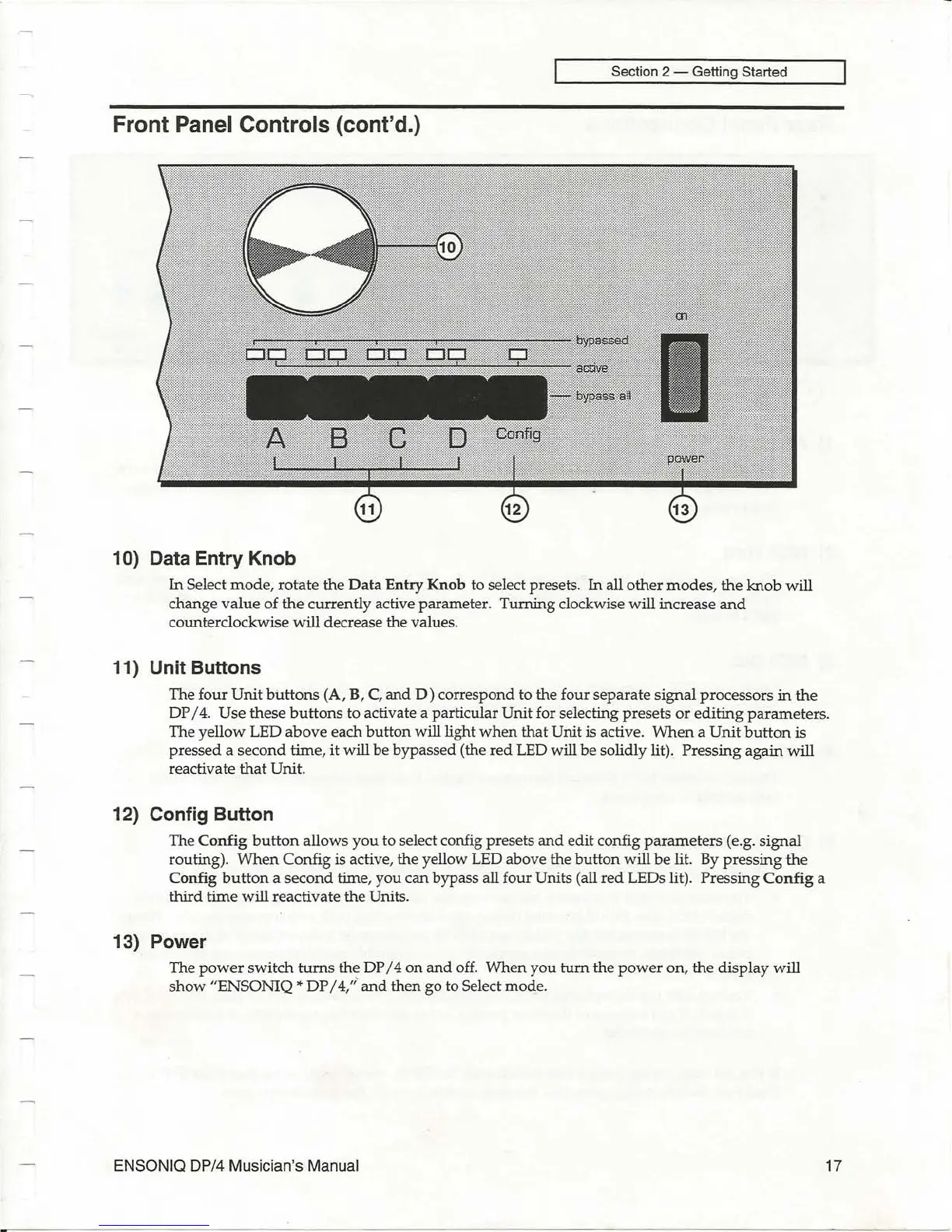

Section 2 - Getting Started
Front Panel Controls (cont'd.)
10) Data Entry Knob
In Select
mode,
rotate the
Data
Entry Knob to select presets. In all
other
modes,
the
knob will
change
value
of
the
currently active parameter. Turning clockwise will increase
and
counterclockwise will decrease the values.
11) Unit Buttons
The four Unit
buttons
(A, B, C, and
D)
correspond to the four separate signal processors
in
the
DP
/4.
Use
these
buttons
to activate a particular Unit for selecting presets
or
editing parameters.
The yellow LED above each
button
will light
when
that Unit is active.
When
a
Unit
button
is
pressed a
second
time, it will be bypassed (the red LED will
be
solidly lit). Pressing again will
reactivate
that
Unit.
12) Config Button
The
Config
button
allows
you
to select config presets
and
edit config
parameters
(e.g. signal
routing).
When
Config is active, the yellow LED above the
button
will
be
lit.
By
pressing
the
Config
button
a
second
time, you can bypass all four Units (all
red
LEDs lit). Pressing
Config
a
third time will reactivate the
Units.
13) Power
The
power
switch
turns
the DP
/4
on
and
off.
When
you
tum
the
power
on, the display will
show
"ENSONIQ *
DP
/
4/
and
then go to Select mode.
ENSONIQ DP/4 Musician's Manual
17
To Next Page
