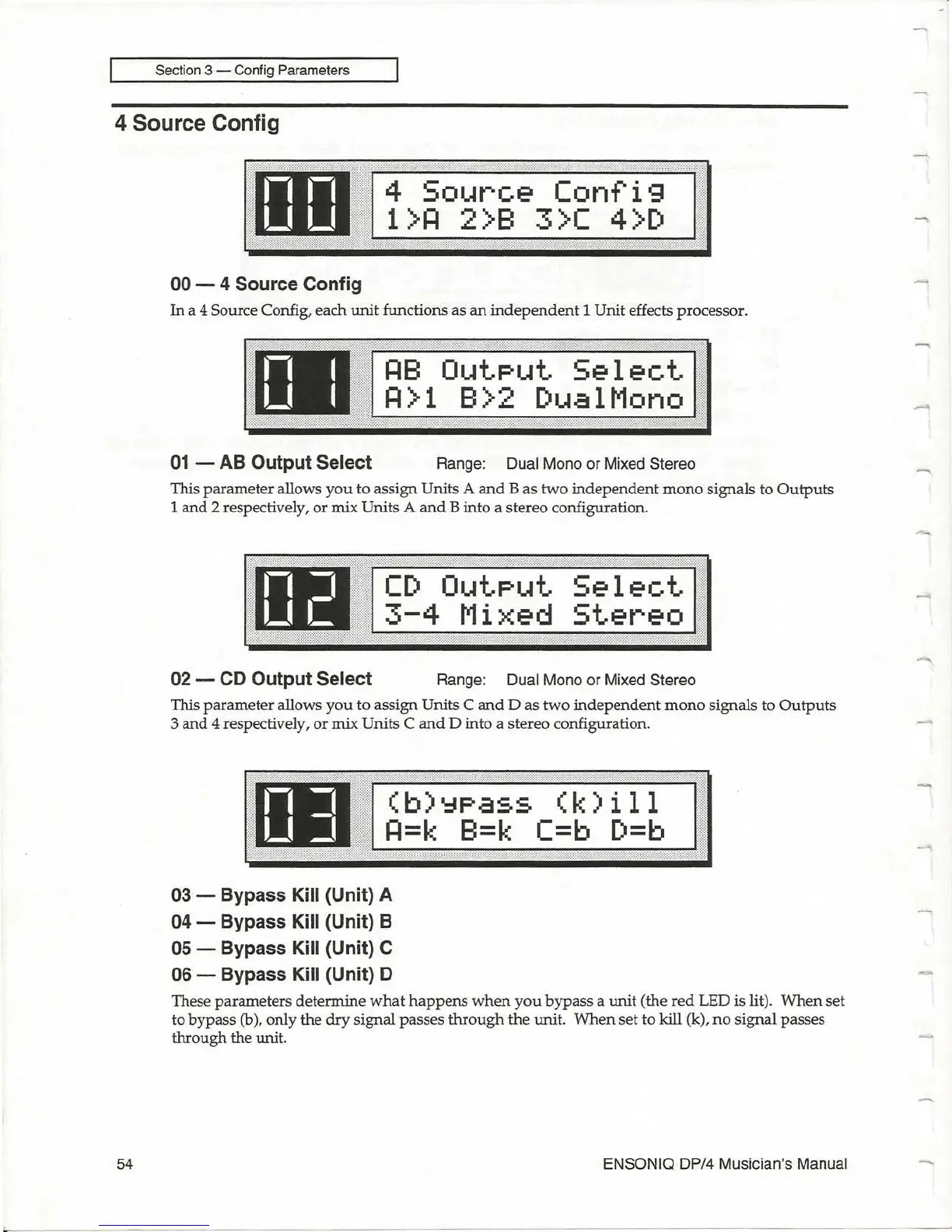

Section 3 - Config Parameters
4 Source Config
54
00 - 4 Source Config
4
Source
Config
1)~
2)B
3)C
4)D
In
a 4 Source Config,
each
unit
functions as
an
independent
1
Unit
effects processor.
01
- AB Output Select
~B
Output
Select
~)1
8)2
DualMono
Range:
Dual Mono or Mixed Stereo
This
parameter
allows
you
to
assign
Units
A
and
B
as
two
independent
mono
signals
to
Outputs
1
and
2 respectively,
or
mix
Units
A
and
B
into
a
stereo
configuration.
CD
Output
3-4
Mixed
Select
Stereo
02 - CD Output Select
Range:
Dual Mono or Mixed Stereo
This
parameter
allows
you
to
assign
Units
C
and
D as
two
independent
mono
signals
to
Outputs
3
and
4 respectively,
or
mix
Units
C
and
D into a
stereo
configuration.
(b)':Ipass
(k)ill
~=k
8=k
C=b
D=b
03 - Bypass Kill (Unit) A
04 - Bypass Kill (Unit) B
05 - Bypass Kill (Unit) C
06 - Bypass Kill (Unit) D
These
parameters
determine
what
happens
when
you
bypass
a
unit
(the
red
LED is lit).
When
set
to
bypass
(b),
only
the
dry
signal
passes
through
the
unit.
When
set
to
kill (k),
no
signal
passes
through
the
unit.
ENSONIQ
DP/4
Musician's Manual
