Enterasys K6 - K6 Chassis Front View

Overview
1-2 Introduction

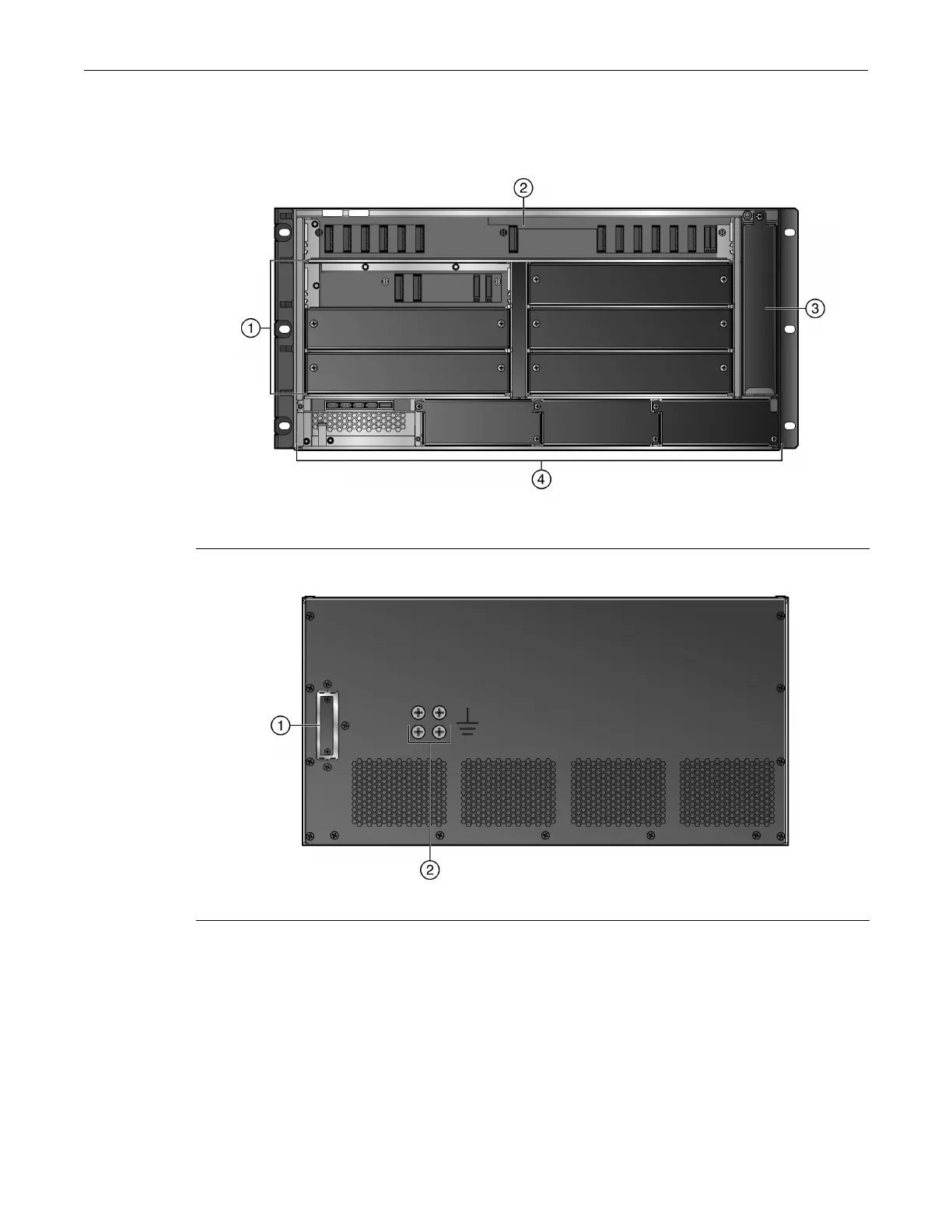

Figure1‐1showstheK6chassiswithslotsforonefabriccard,sixlinecards,andfour1400watt,
dualoutput,redundantpowersupplies.Figure1‐2showsrearoftheK6chassis.
Figure 1-1 K6 Chassis Front View
Figure 1-2 K6 Chassis Rear View
1 Line card slots 3 Fan slot
2 Fabric card slot 4 Power supply slots
1 PoE connector for K-POE-4BAY shelf 2 Grounding screws
