Installing and Removing a Line Card
3-22 Chassis Setup
4. Slidethefabriccardoutofthechassis.SeeFigure 3‐20.

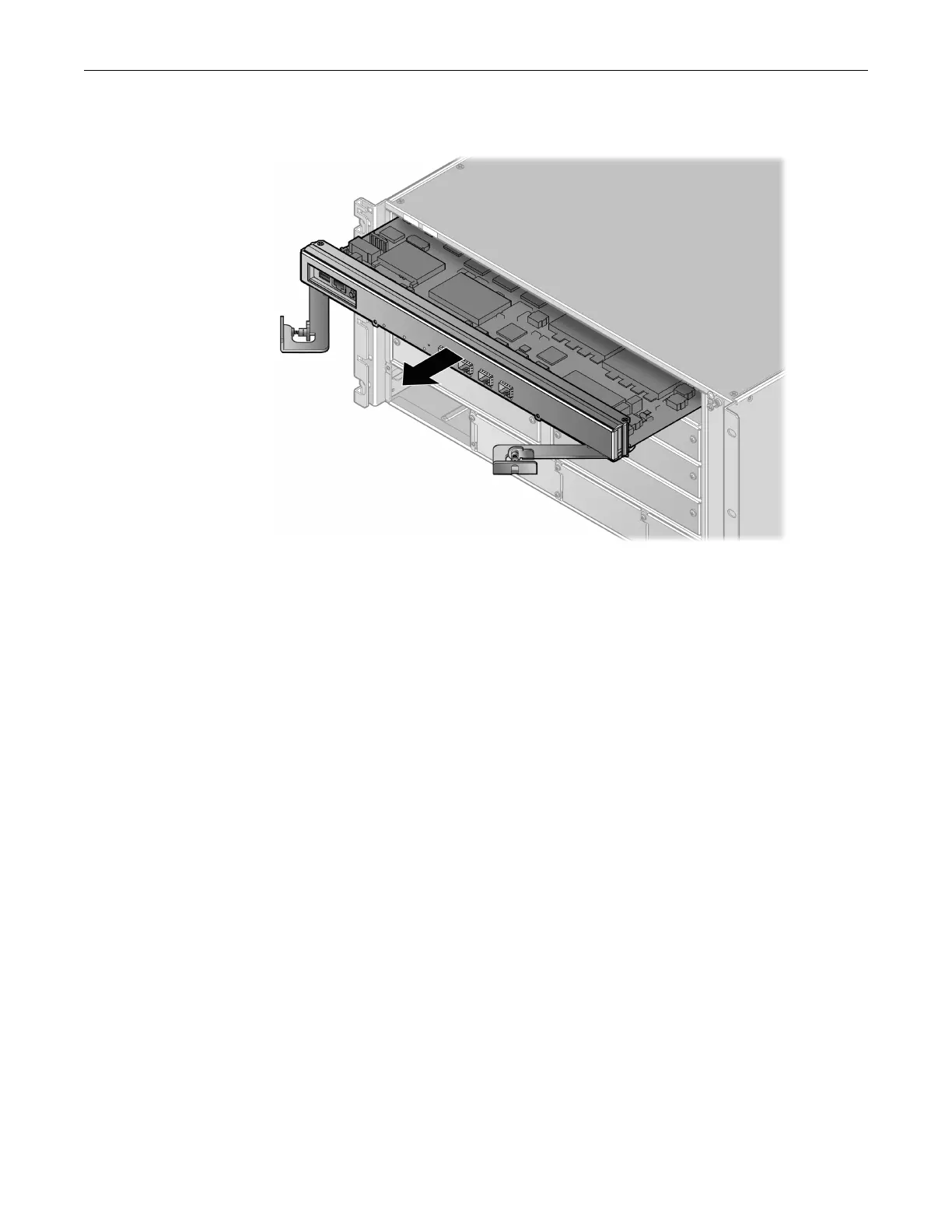

Figure 3-20 Removing the Fabric Card
Installing and Removing a Line Card
Required Tools
Thisinstallationrequiresthefollowingtools:
•Anti‐staticwriststrap
• Phillipsscrewdriver
Preparation
1. Removethelinecardfromtheshippingbox.
Savetheboxandpackingmaterialsintheeventthelinecardneedstobereshipped.
2. Locatetheantistaticwriststrapshippedwiththechassis.Attachtheantistaticwriststrapto
yourwristandplugthecablefromtheantistaticwriststrapinto
theESDgroundingreceptacle
attheupperrightcornerofthechassis.
3. Removethelinecardfromtheplasticbag.
ObserveallprecautionstopreventdamagefromElectrostaticDischarge(ESD).Savethebag
intheeventthelinecardmustbereshipped.
4. Examinethelinecardfordamage.
Ifanydamageexists,
DONOTinstallthelinecard.ImmediatelycontactEnterasysNetworks.
Referto“GettingHelp”onpage xvii.
