Installing the K Chassis
3-10 Chassis Setup
5. Onceyouhaveinstalledandcableda K‐Seriesfabriccardorlinecard,opentheappropriate
cablemanagementclipbypushinguponthelatchofitsswingarmwhereitattachestothe
cablemanagementclipbelow.SeeFigure 3‐9.

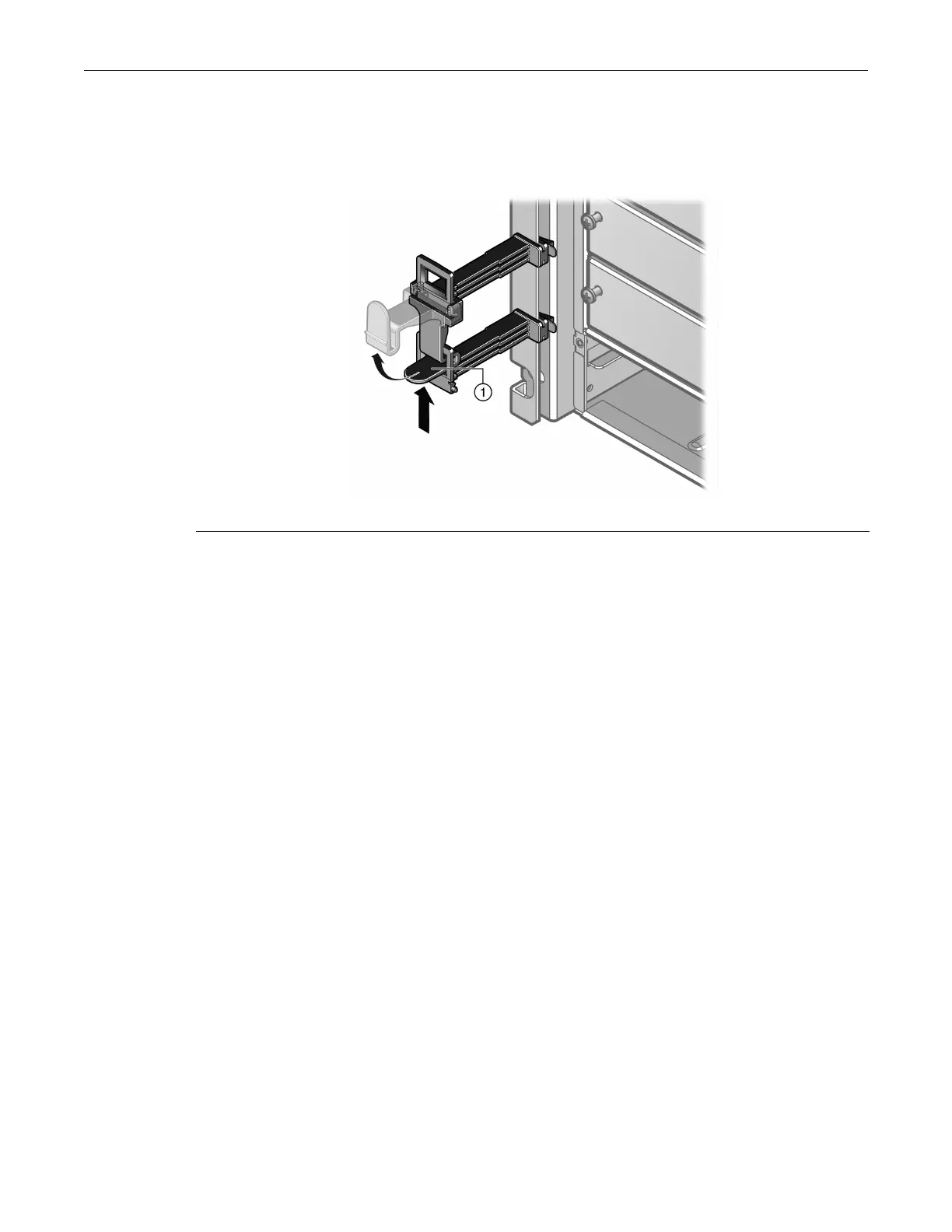

Figure 3-9 Opening a Cable Management Clip
6. Placethebundledcablesinthecablemanagement
clip.
7. Closethecablemanagementclip.
Chassis Bonding and Grounding
Installingthechassisasdescribedinthischaptermeetstheprotectiveearthgrounding
requirementsoftheNationalElectricalCode(NEC)UL60950andIEC60950standards.However,
insomecasesitisnecessarytouseanalternativegroundingmethodatinstallationsitesthatmust
meettheTelcordiaGR‐1089Section9,
BondingandGroundingRequirements,ornational
deviations.Tomeettheserequirements,usethefourtappedholeslocatedonthe rearofthe
chassis.Theseholesmeettheholegroundingboltpatternrequirements,asshowninFigure 3‐10.
1 Push up on the swing arm latch to open the cable management clip
