Installing and Removing the Fabric Card
Enterasys K-Series K6 Chassis Hardware Installation Guide 3-21
Removing the Fabric Card
Toremovethefabriccardfromthechassis:
1. Loosenthecaptivescrewsonthefabriccard’sejectorhandles.
2. PresstheOFFLINE/RESETbutton.
TheCPULEDchangesfromsolidgreentoblinkinggreenandambertosolidamber.
3. Openthefabriccardejectorhandlestoa45°angle.SeeFigure 3‐19.

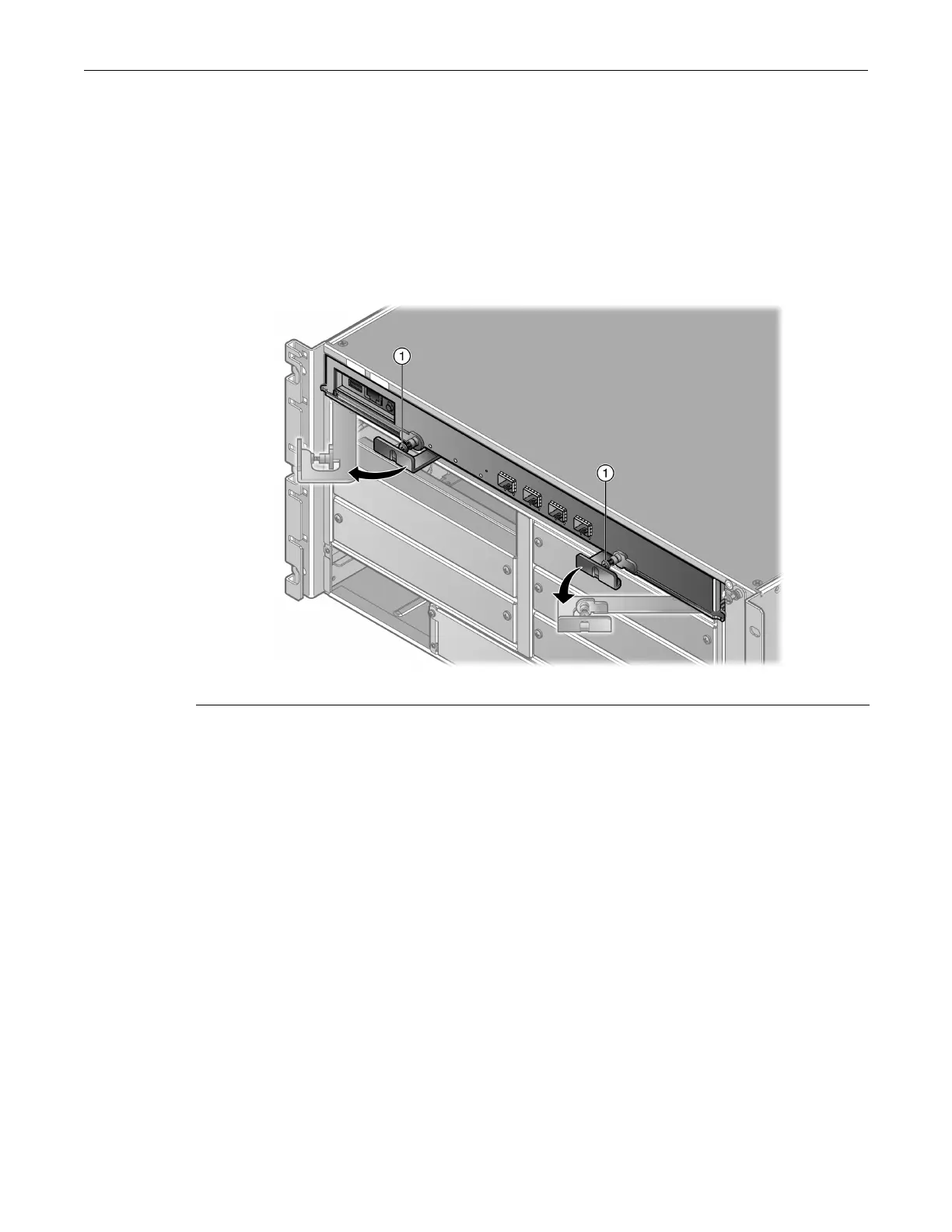

Figure 3-19 Releasing the Fabric Card Ejector Handles
1 Captive screw
