Enterasys K6 User Manual

Installing and Removing the Fabric Card
3-20 Chassis Setup
2. Insertthefabriccardinthechassis.SeeFigure 3‐17.

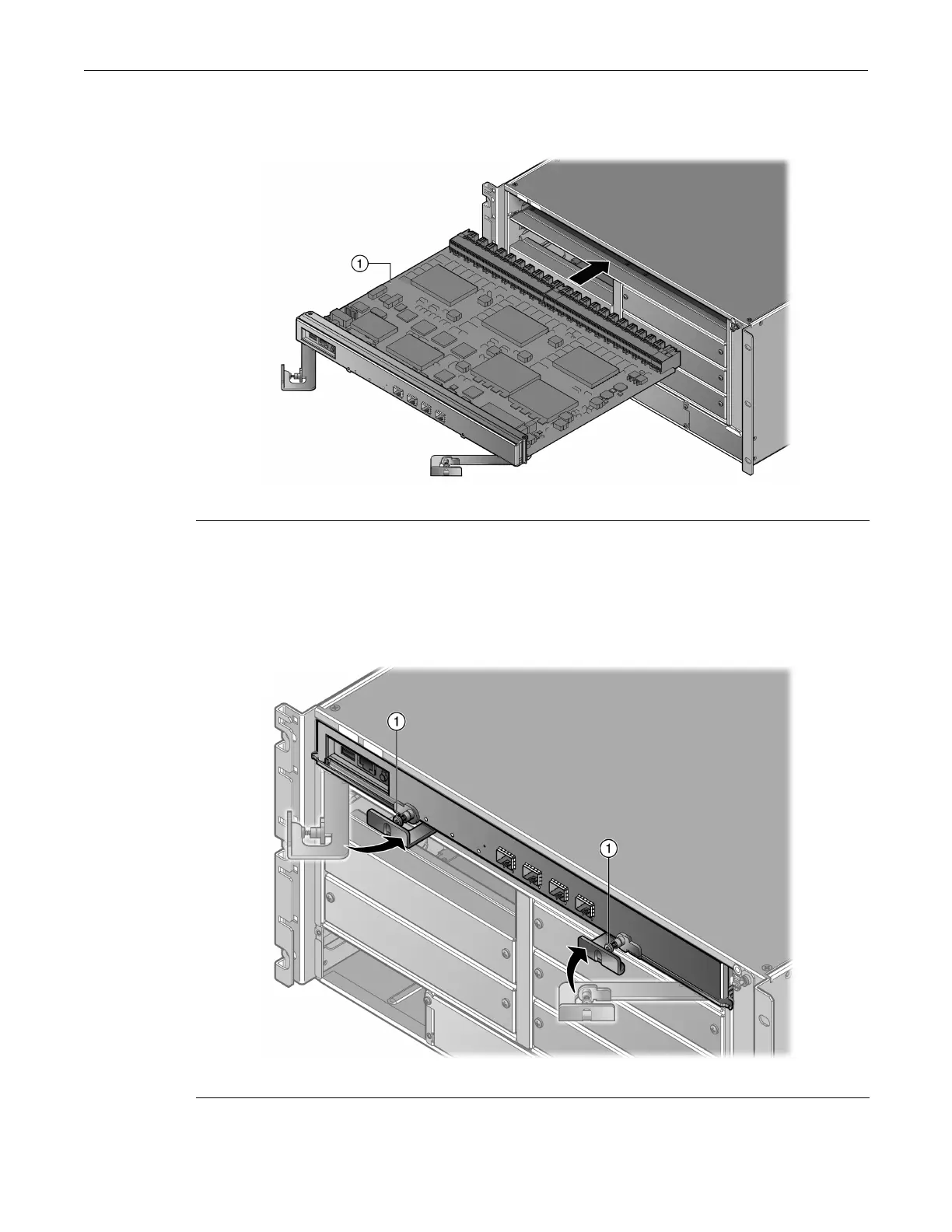

Figure 3-17 Inserting the Fabric Card into the Chassis
3. Gentlyslidethefabriccardintotheslotuntilthefabriccardengagestheconnectoronthe
backplane.
4. Pushtheejectorhandlestowardthecenterofthefabriccard,asshowninFigure 3‐18,untilthe
fabriccardlocks
intoplaceandisflushwiththechassis.
Figure 3-18 Engaging the Fabric Card Ejector Handles
5. Tightenthecaptivescrewsonthefabriccard’sejectorhandles.
1 Fabric card
1 Captive screw
