Installing and Removing the Fabric Card
3-18 Chassis Setup
Removing a Fan Tray
Toremoveafantray:
1. Attachtheanti‐staticwriststrapasdescribedin“AttachingtheElectrostaticDischargeWrist
Strap”onpage 3‐12beforehandlingthefantray.
2. Loosenthecaptivescrewlocatedatthetopofthefantray.
3. Slowlyslidethefantrayoutofitsslotinthe
chassis.SeeFigure 3‐16.

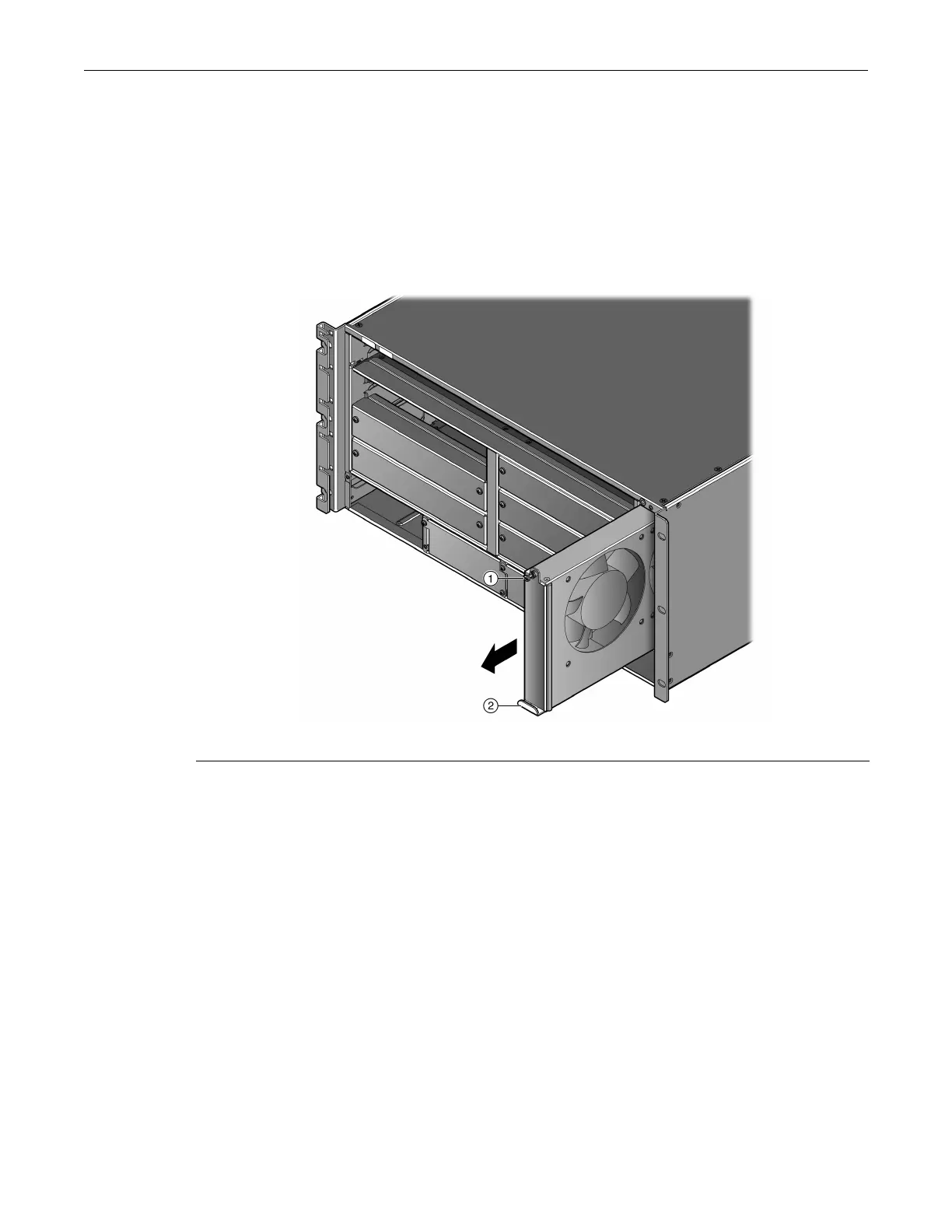

Figure 3-16 Removing the Fan Tray
Installing and Removing the Fabric Card
YoumustinstallafabriccardfortheK6chassistobeoperational.
Required Tools
Thisinstallationrequiresthefollowingtools:
•Anti‐staticwriststrap
• Phillipsscrewdriver
Preparation
1. Removethefabriccardfromtheshippingbox.
Savetheboxandpackingmaterialsintheeventthefabriccardneedstobereshipped.
1 Captive screw 2 Fan tray handle
