Front Mounting a K Chassis
ToinstalltheK6chassisinarackusingtheK6chassisfrontmountingbrackets:
1. Liftthechassisandslideitallthewayintotherackuntilthefrontmountingbracketsare
againstthefrontoftherackposts.
2. Use6screws(3perside)tosecurethechassisto
therack,startingwiththebottomholesand
workingtowardthetopofthechassis.SeeFigure 3‐3.

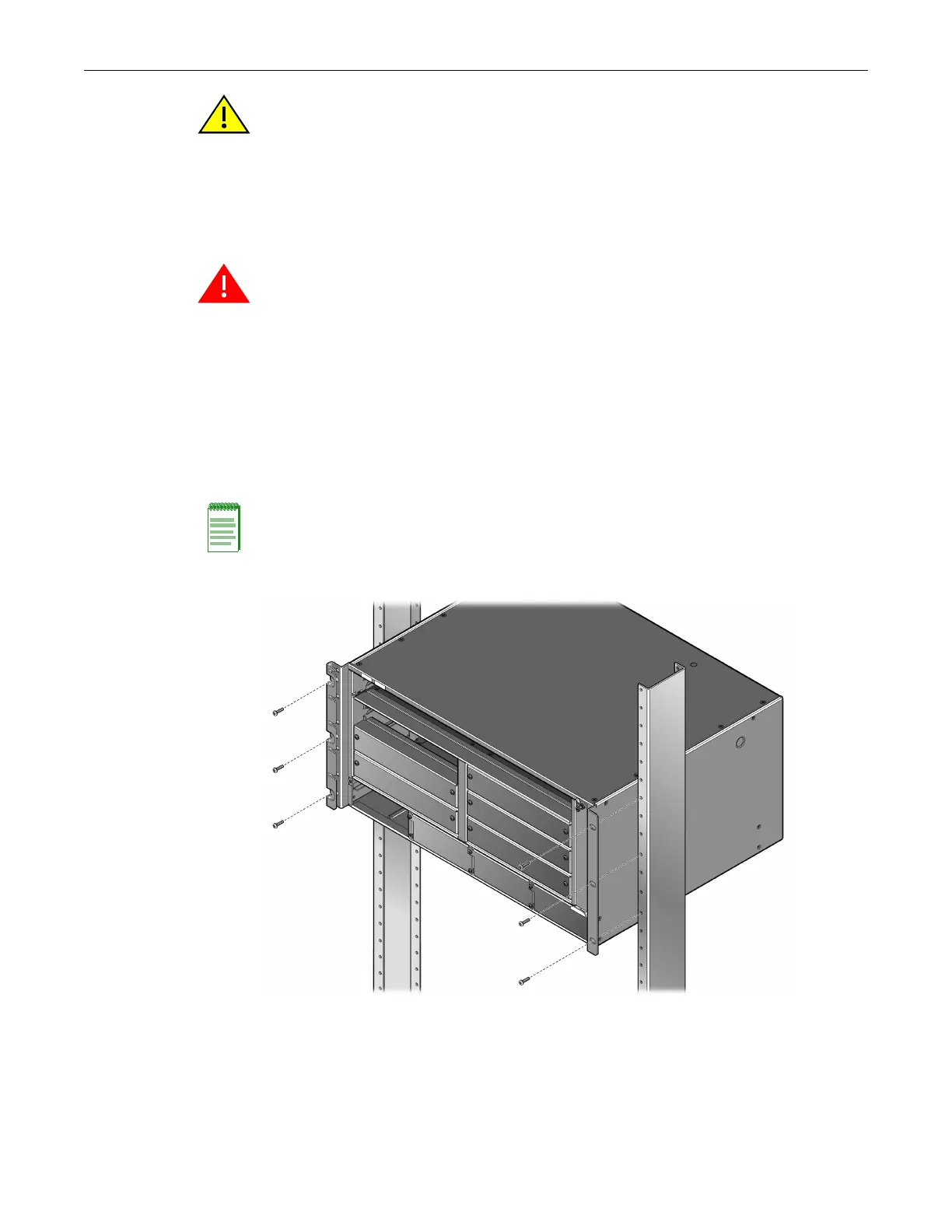

Figure 3-3 Front Mounting the K6 Chassis in a Rack
Caution: Read Chapter 2 before completing the following procedure to ensure that all installation
guidelines are met.
Precaución: Antes de llevar a cabo el siguiente procedimiento, lea Chapter 2 para y asegúrese
de cumplir con todos los requisitos de instalación.
Warning: To help prevent personal injury, at least two people are required to lift the chassis into
the rack.
Advertencia: Para ayudar a prevenir alguna lesión personal , al menos dos personas son
requeridas para levantar el chasis y meterlo al rack.
Warnhinweis: Zum Schutz vor körperlichen Schäden, sollten sie mit min. zwei Personen das
Chassis in das Rack heben.
Note: Refer to Table A-4 on page A-2 for recommended torque values to use when installing the K6
chassis using standard threaded fastener machine screws and bolts.
