Installing the K Chassis
Enterasys K-Series K6 Chassis Hardware Installation Guide 3-9
4. Closeeachcablemanagementclipbysnappingitsswingarmintothecablemanagementclip
below.SeeFigure 3‐7.

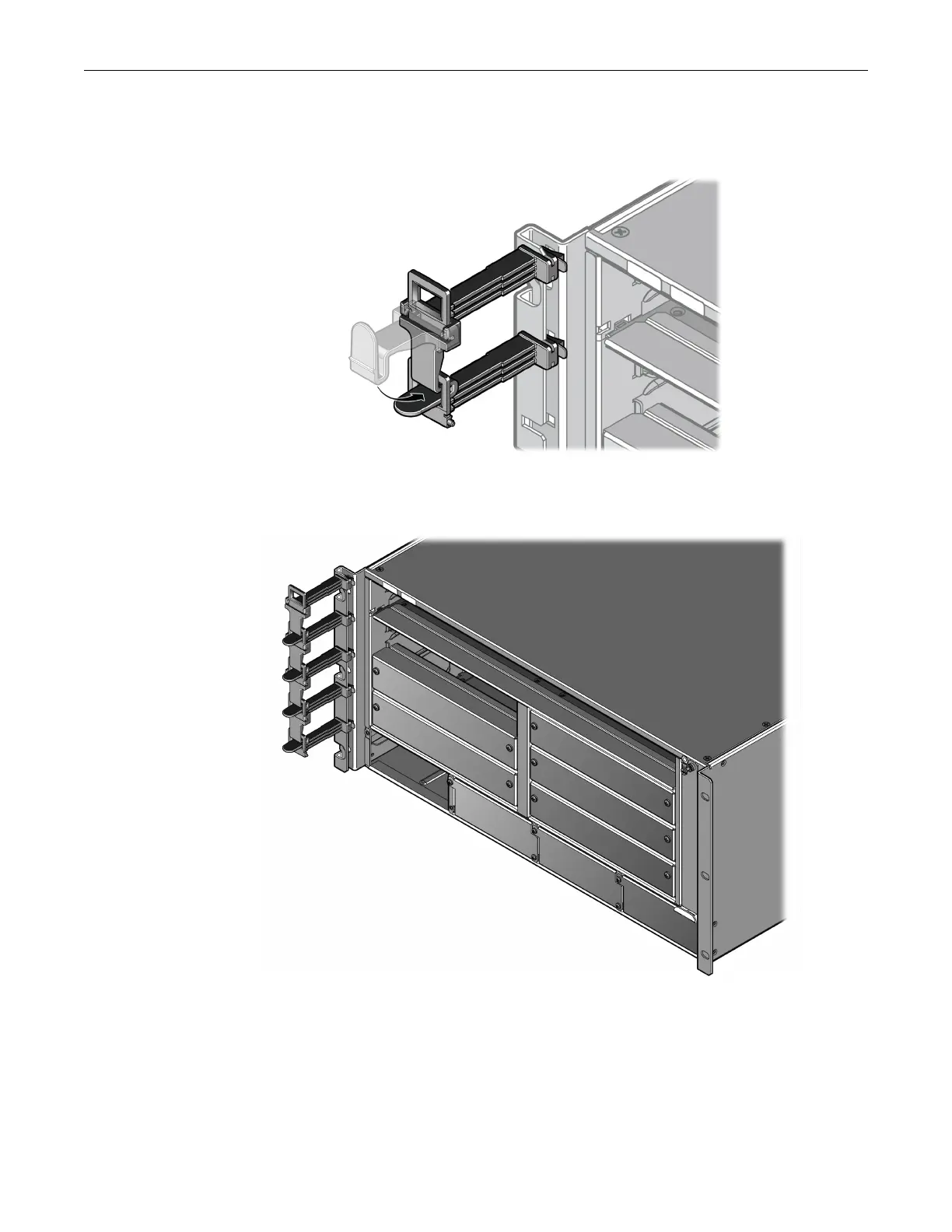

Figure 3-7 Closing a Cable Management Clip
Figure 3‐8showsthecompletedinstallation.
Figure 3-8 K6 Chassis with Cable Management Clips
