Mounting the SSA Switch
Enterasys S-Series Stand Alone (SSA) Hardware Installation Guide 2-7
Flush-Mount Power Supply Facing Front Configuration
The flush-mount, power supply facing front, configuration is depicted in callout 2 of Figure 2-1 on
page 2-3. This SSA switch rack mount configuration requires the repositioning of the rack mount
ears on both sides of the device.
To reposition the rack mount ears for this configuration:
1. Remove the screw by the three holed ear, as shown in Figure 2-4 callout 1, and loosen the
opposite screw, shown by callout 2.
2. Pivot the rack mount ear at the loosened screw, shown by callout 3, repositioning the rack
mount ear so that the three-holed ear is flush with the switch I/O port side of the device.
3. Reinsert the front screw, shown by callout 4, and retighten the middle screw, shown by callout
5.
4. Repeat steps 1–3 on the other side of the chassis.

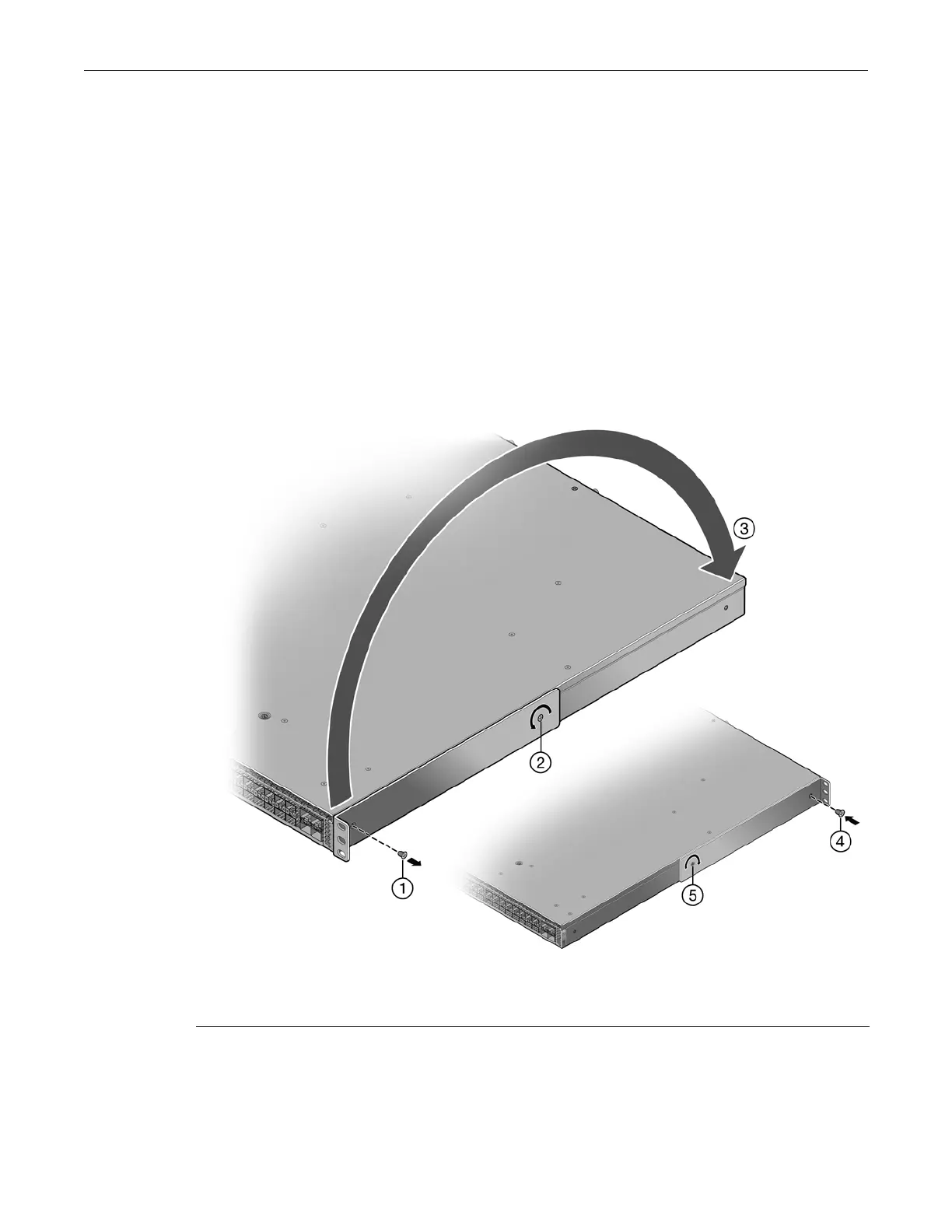

Figure 2-4 Flush Mount Power Supply Front Configuration
1 Ear mount screw removal 4 Ear mount screw insertion
2 Rack mount ear pivot screw 5 Pivot screw retightened
3 Reposition of rack mount ear
