2-Post Rack Mount Installation
Enterasys S-Series Stand Alone (SSA) Hardware Installation Guide C-15
Securing the SSA Switch to the Rack
To secure the SSA switch to the rack:
1. Slide the chassis onto the rail assembly until the chassis adapter plate ears meet the rail
assembly ears. See Figure C-13.
2. For a flush mount rail assembly configuration, secure each side of the chassis using a screw or
fastener appropriate to your rack that you provide.
3. For a mid-mount rail assembly configuration, secure each side of the chassis using a black,
10-32 screw that comes with the rack mount kit. These screws are screwed into the cage nut
installed in the square rail ear opening as described in Step 3 of section “Mid-Bracket to Rail
7.25 Inch Flush Mount or Mid-Mount Assembly” on page C-11.

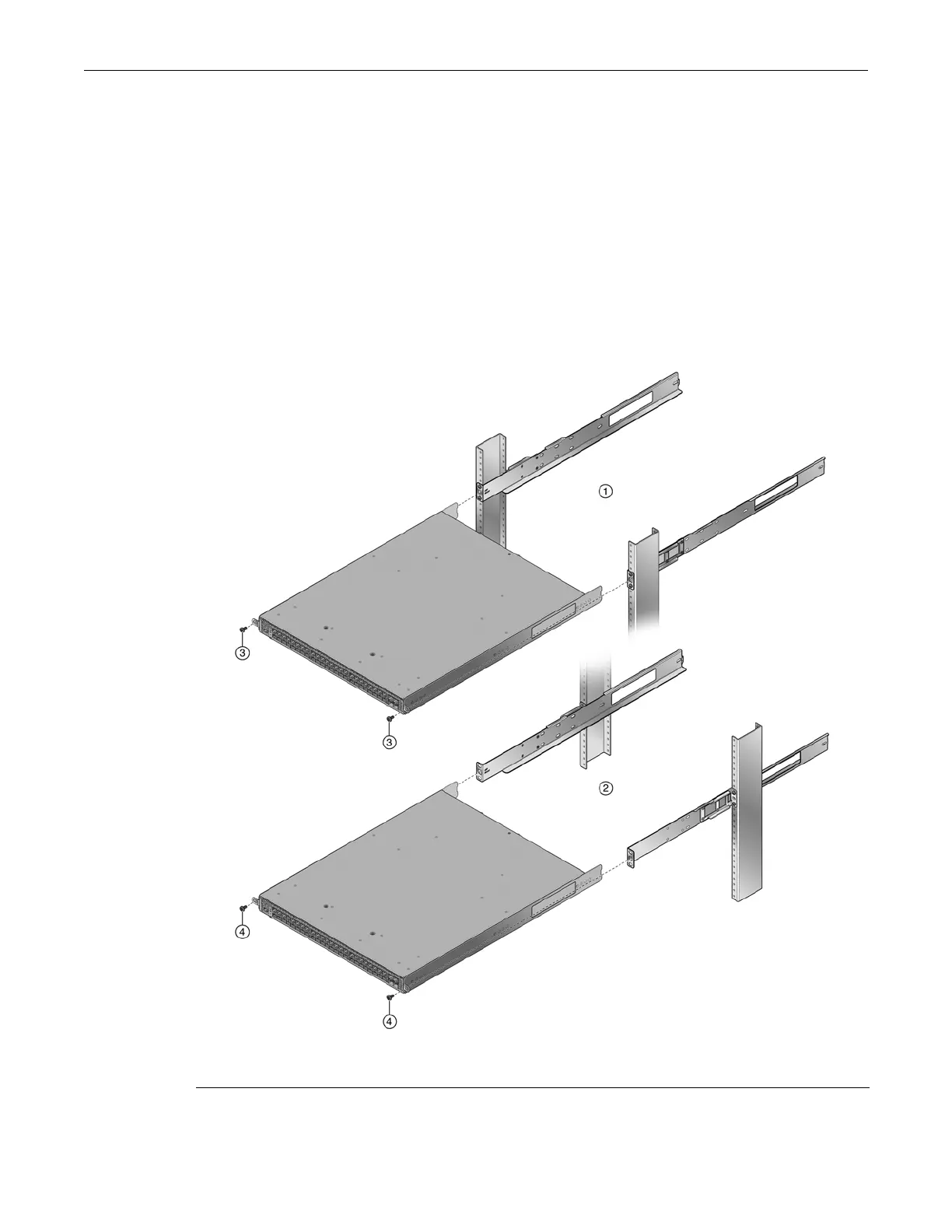

Figure C-13 Securing the SSA Switch to the Rack
1 Flush mount configuration 3 Rack appropriate screws or fasteners (2)
2 Mid-mount configuration 4 Black 10-32 screws (2)
