2-Post Rack Mount Installation
Enterasys S-Series Stand Alone (SSA) Hardware Installation Guide C-13
Securing the Rail Assembly for a 2-Post Flush Mount Configuration
When securing the rail and mid-bracket assembly in a flush mount configuration:
1. Align the rail ear circular openings with outer front flange rack post openings and the
mid-bracket ear openings with outer rear flange rack post openings as shown in Figure C-11.
2. Secure each rail assembly with two screws or fasteners appropriate to the rack at both the rail
ear and mid-bracket ear.

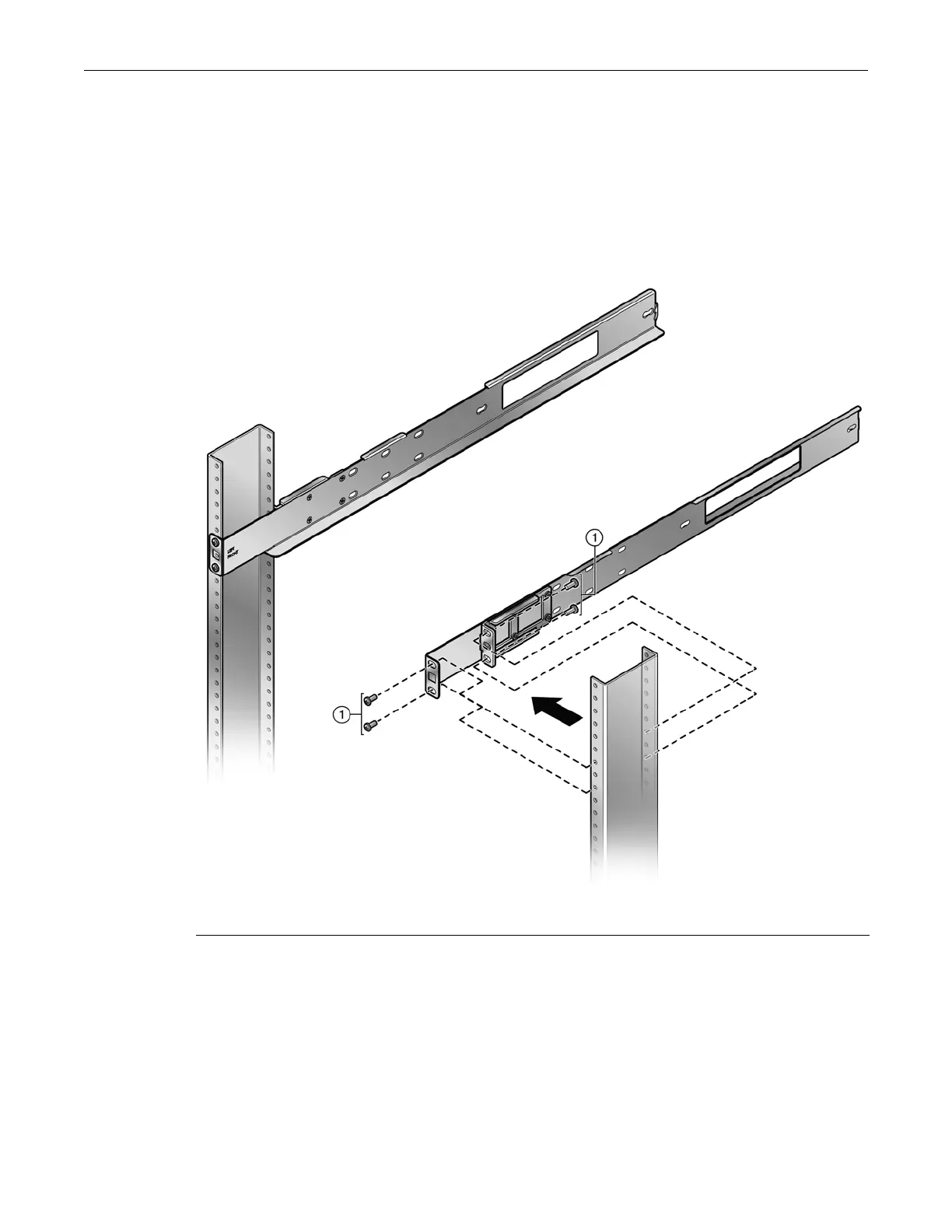

Figure C-11 Securing a Flush Mount Rail Assembly
1 Rack appropriate screws of fasteners (8)
