Mounting the SSA Switch
2-10 Installation
2. Align the rack mount ear holes with the front rack post holes in either a flush (Figure 2-7) or
mid-mount (Figure 2-8 on page 2-11) configuration.
3. Secure the SSA switch to each rack post with at least two screws or fasteners appropriate to
the rack as shown in callout 1 of the appropriate figure (Figure 2-7 or Figure 2-8).

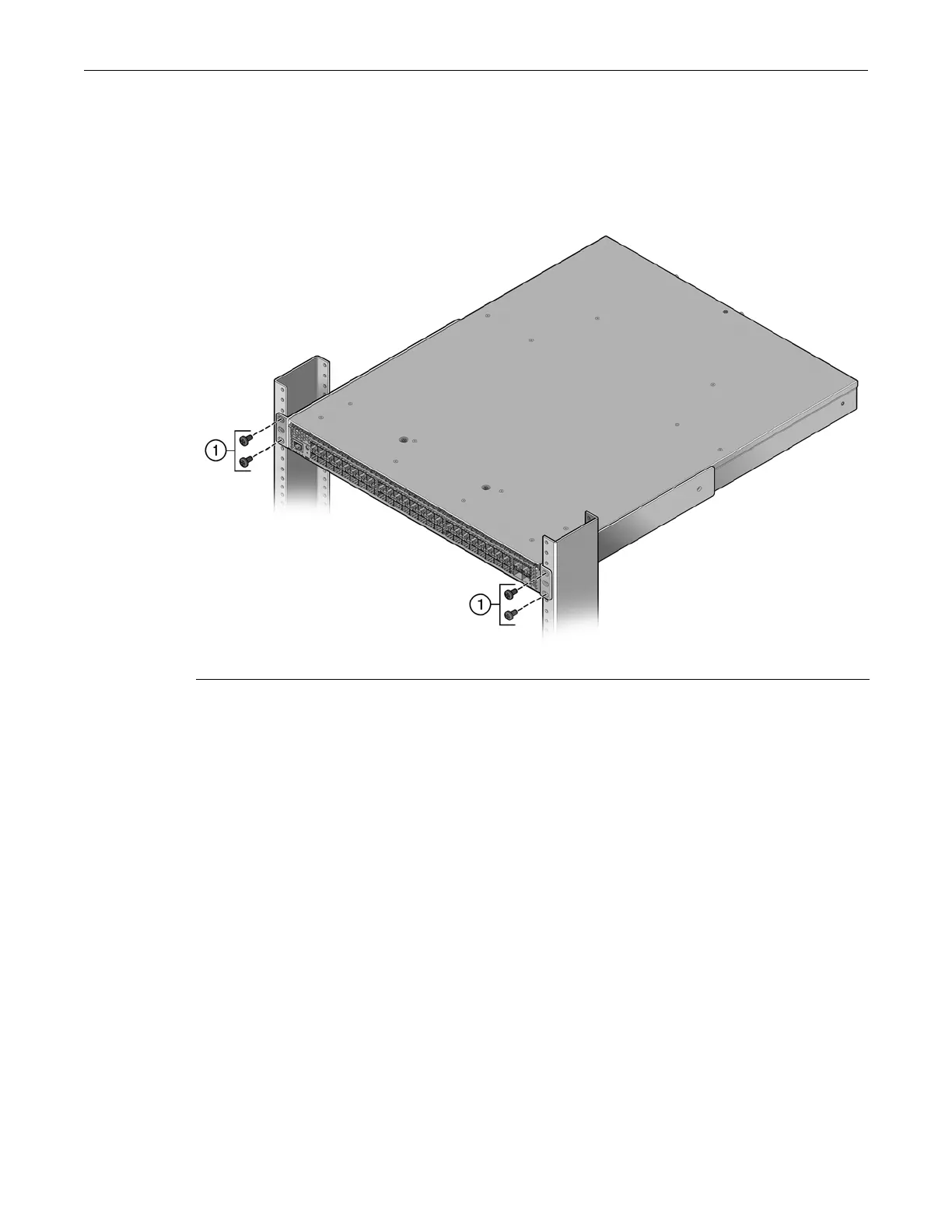

Figure 2-7 Securing the SSA Switch to the Rack in a Flush Mount Configuration
1 4–6 screws or fasteners appropriate to the rack
