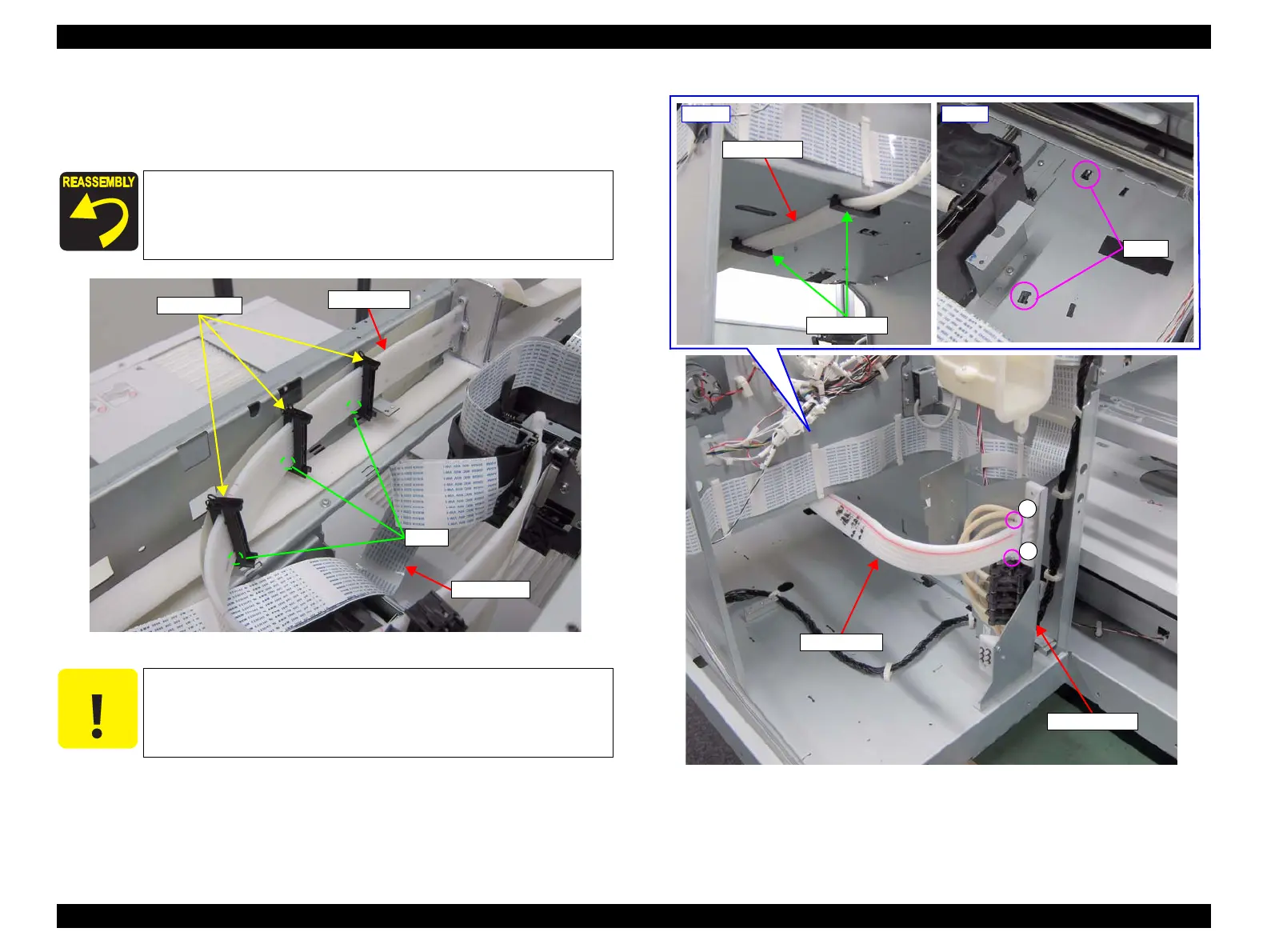

24. Release the HEAD FFC from the three Cable Holder.
25. Disengage the three hooks to open the six Cable Holders, and release the TUBE
ASSY.
Figure 3-99. Releasing from the Cable Holders
26. Remove the two screws, and remove the TUBE ASSY from the BUFFR ASSY.
A) Silver M2.5x16 Bind machine screw: 2 pcs
27. Disengage the two hooks, and remove the two tube clamps.
Figure 3-100. Removing from the BUFFR ASSY
Perform the Clamp Position Adjustment (p233).
When the TUBE ASSY is removed at the following step, ink may
drip off from the tube. Prepare a waste cloth in advance and be
careful not to contaminate the surroundings.
TUBE ASSY
Hooks
Cable Holder
HEAD FFC
Bottom
Tube clamps
TUBE ASSY
