SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 132
Confidential
3.4.5.8 TUBE ASSY
1. Perform the Ink eject.
2. Remove the PRINTER COVER. (p72)
3. Remove the RIGHT HOUSING PLATE. (p74)
4. Remove the RIGHT COVER ASSY. (p88)
5. Remove the LEFT HOUSING PLATE. (p73)
6. Remove the LEFT COVER ASSY. (p86)
7. Remove the REAR COVER SUB ASSY. (p77)
8. Remove the REAR COVER. (p79)
9. Remove the RIGHT IC COVER SENSOR. (p91)
10. Remove the RIGHT IH COVER. (p85)
11. Remove the LEFT IC COVER SENSOR. (p90)
12. Remove the LEFT IH COVER. (p84)
13. Remove the PANEL ASSY. (p75)
14. Unlock the CR UNIT. (p69)
15. Remove the CR COVER. (p103)
16. Remove the PUMP CAP ASSY. (p143)
17. Remove the RIGHT INK HOLDER ASSY. (p161)
18. Remove the PS Shield Plate Assy. (p99)
19. Remove the DAMPER KIT. (p104)
20. Remove the Front Cover Assy. (p127)
21. Remove the Tube Cover. (p128)
22. Remove the two FFC Cover. (p129)
23. Disengage the hook that secures the FFC Cover, and remove the FFC Cover while
sliding in the direction of the arrow.

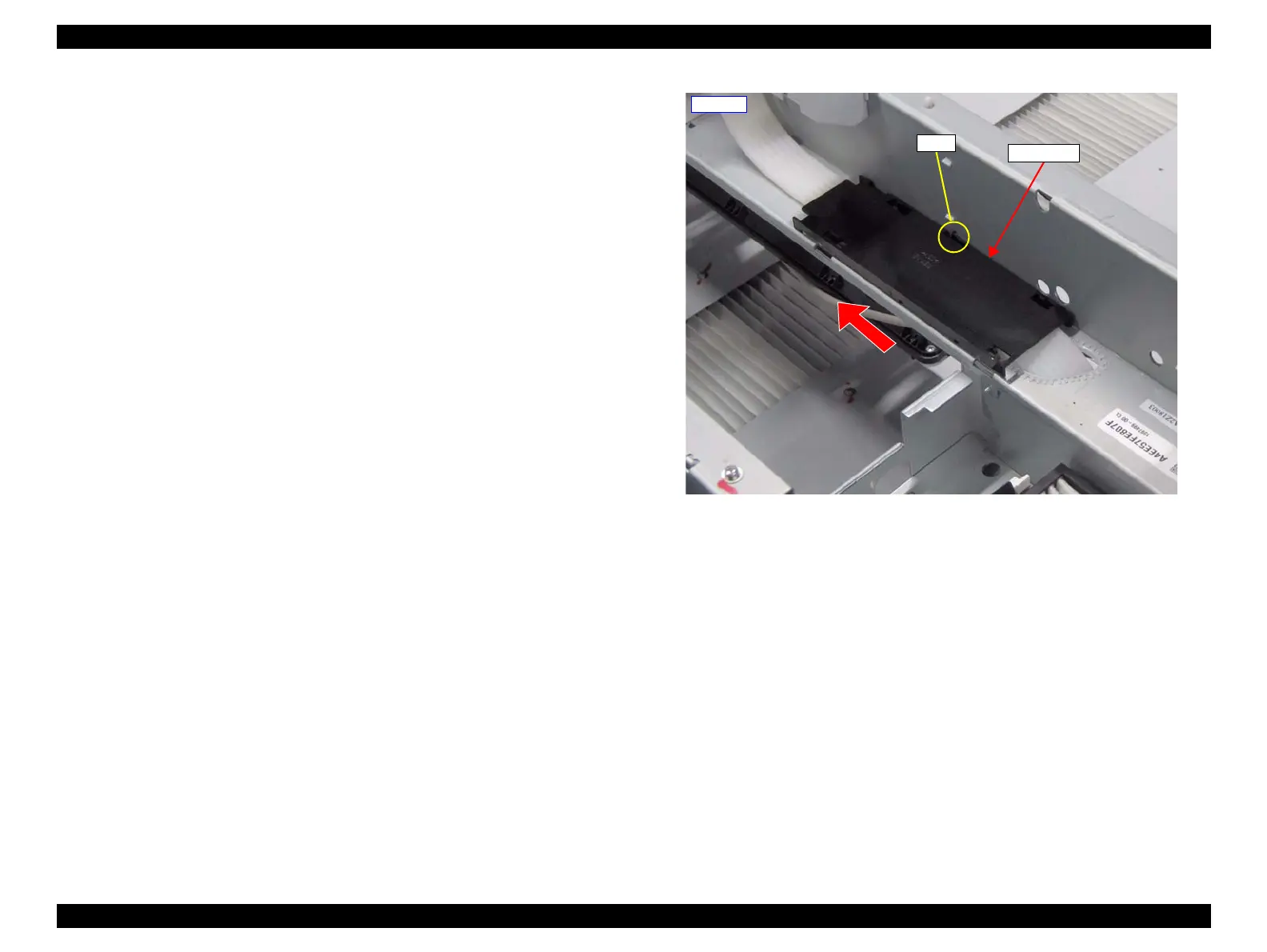

Figure 3-98. Removing the FFC Cover
To Next Page
