DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 145
Confidential

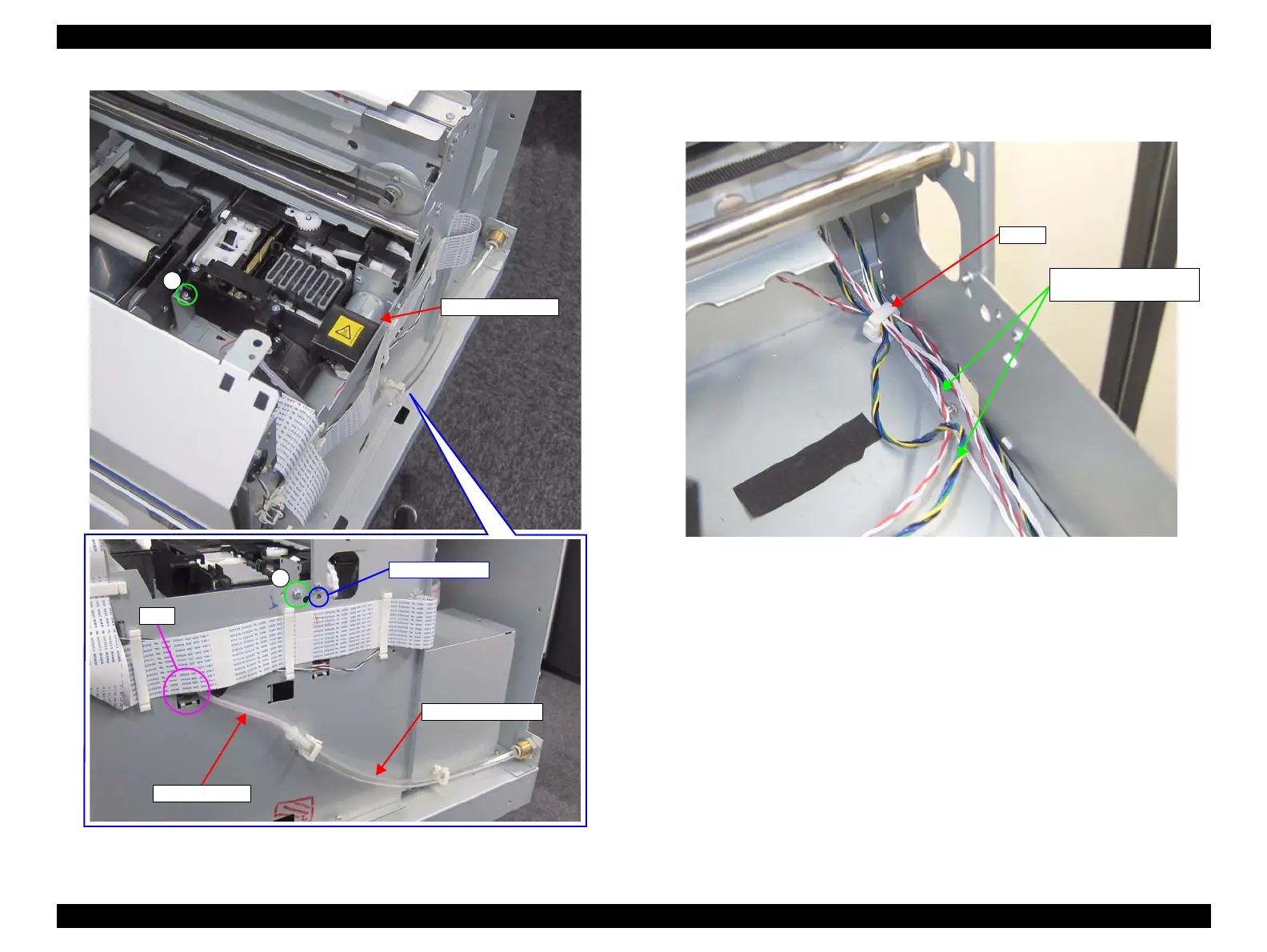

Figure 3-112. Removing the PUMP CAP ASSY
12. Release the cables of the relay connectors (No.23, No.26) from the clamp, and
remove the PUMP CAP ASSY.
Figure 3-113. Releasing the cables
B
Positioning point
DUCT TUBE ASSY
Waste Ink Tube
Hole
B
PUMP CAP ASSY
Clamp
Cables of relay connectors
(No.23, No.26)
