3.4.5.12 CLOTH WIPER CARRIAGE ASSY
1. Remove the PRINTER COVER. (p72)
2. Remove the RIGHT HOUSING PLATE. (p74)
3. Remove the RIGHT COVER ASSY. (p88)
4. Unlock the CR UNIT. (p69)
5. Remove the PUMP CAP ASSY. (p143)
6. Remove the WIPER UNIT. (p70)
7. Remove the RIGHT IC COVER SENSOR. (p91)
8. Remove the RIGHT IH COVER. (p85)
9. Remove the screw, and remove the Maintenance Fixing Plate.
A) Silver M3x6 Cup S-tite screw: 1 pcs

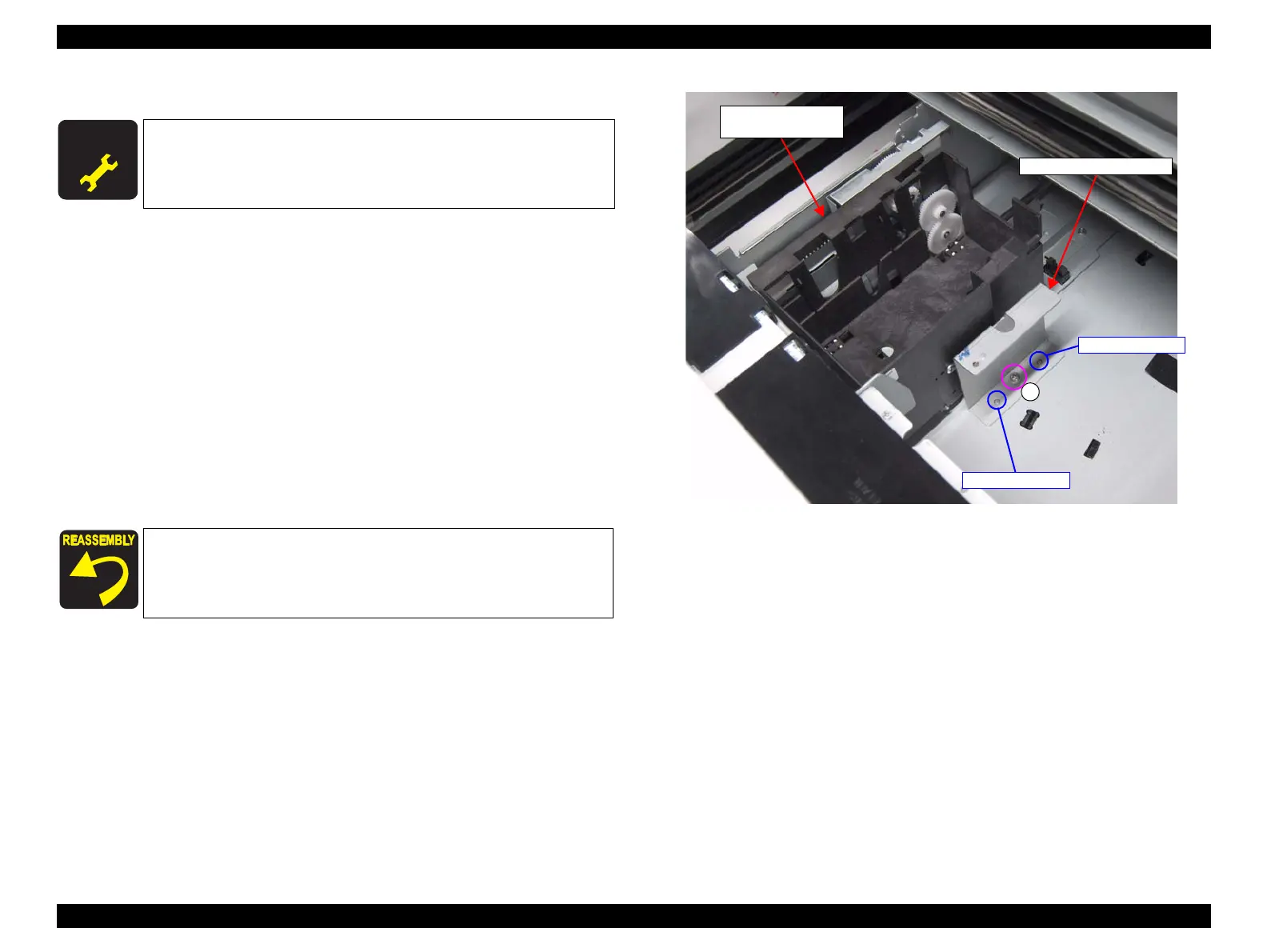

Figure 3-114. Removing the Maintenance Fixing Plate
A D J U S T M E N T
R E Q U I R E D
When replacing this part, refer to “4.1.2 Adjustment Items and
the Order by Repaired Part” (p194) and make sure to perform the
specified operations including required adjustment.
Pay attention to the positioning points (See Figure 3-114).
A
CLOTH WIPER
CARRIAGE ASSY
Maintenance Fixing Plate
Positioning point
Positioning point
