Epson SC-F2000 - Page 147

SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 147
Confidential
10. Release the cables from the clamp.
11. Disconnect the cables from the relay connectors (No.81, No.82, No.83, No.84).
12. Pull the cables in the hole on the frame.

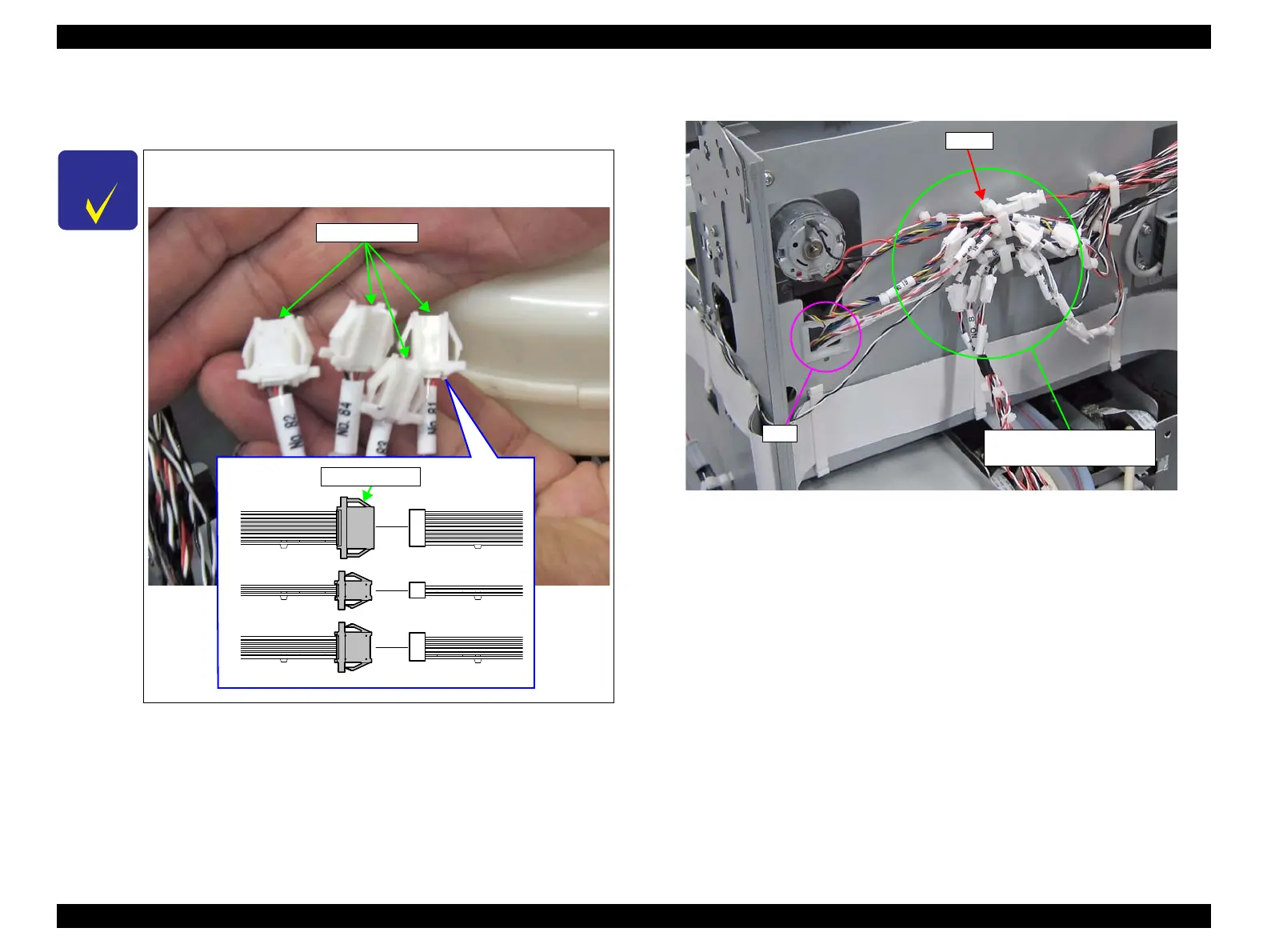

Figure 3-115. Releasing the cables (1)
C H E C K
P O I N T
 Leave the relay connectors at the main body side to reuse them.
 Confirm the relay connectors to disconnect the cables.
Relay connectors
Relay connector
Relay connectors
(No.81, No.82, No.83, No.84)
Hole
Clamp
