SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 148
Confidential

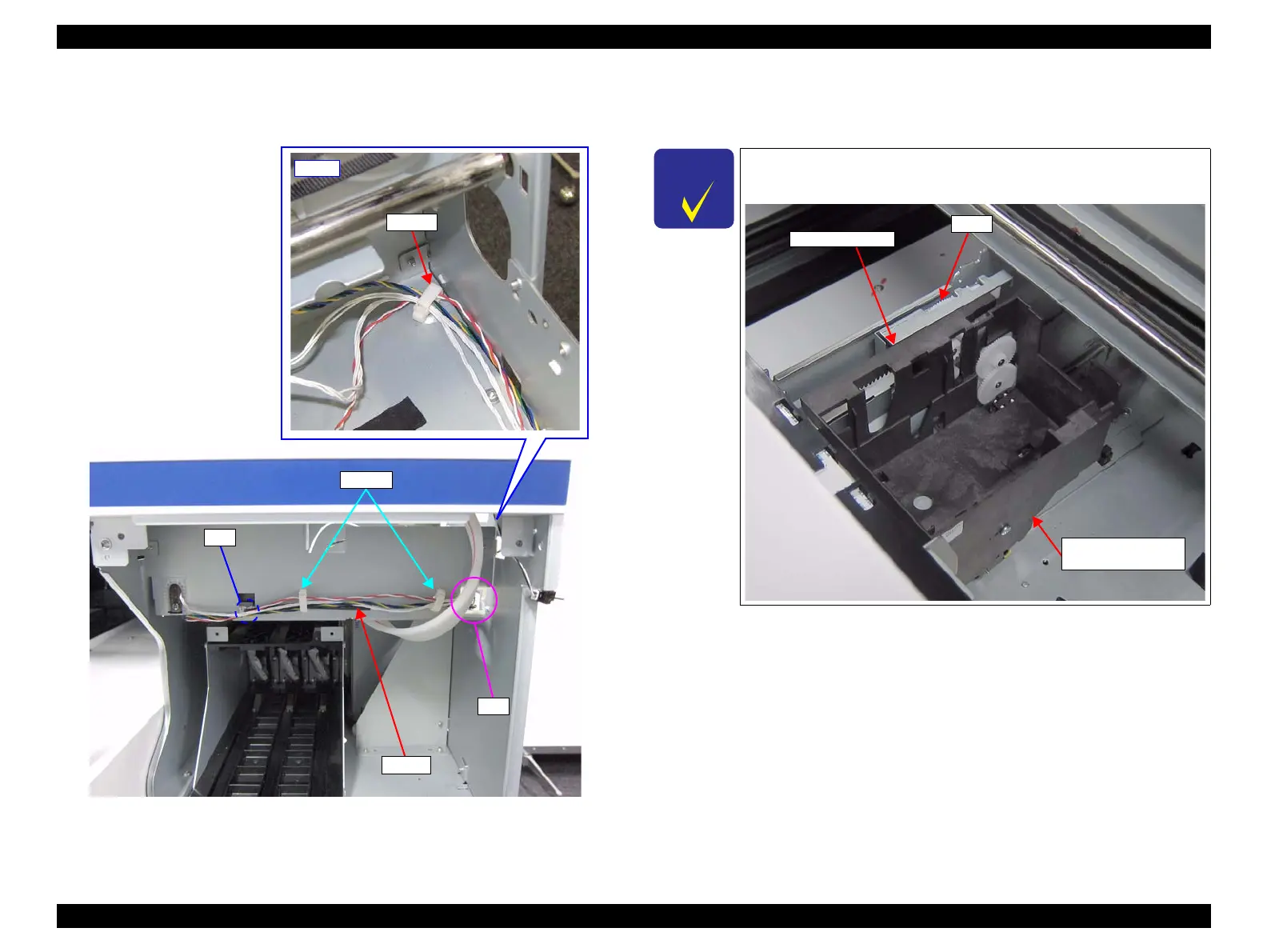

13. Release the cables from the three clamps, and pull out the cables from the two
holes on the frame.
Figure 3-116. Releasing the cables (2)
14. Remove the two screws that secure the CLOTH WIPER CARRIAGE ASSY.
B) Silver M3x6 Cup S-tite screw: 2 pcs
Cables
Hole
Clamp
Upper
Clamps
Hole
C H E C K
P O I N T
When moving the carriage portion of the CLOTH WIPER
CARRIAGE ASSY, move the gear shown in the below figure.
Carriage portion
Gear
CLOTH WIPER
CARRIAGE ASSY
