SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 149
Confidential

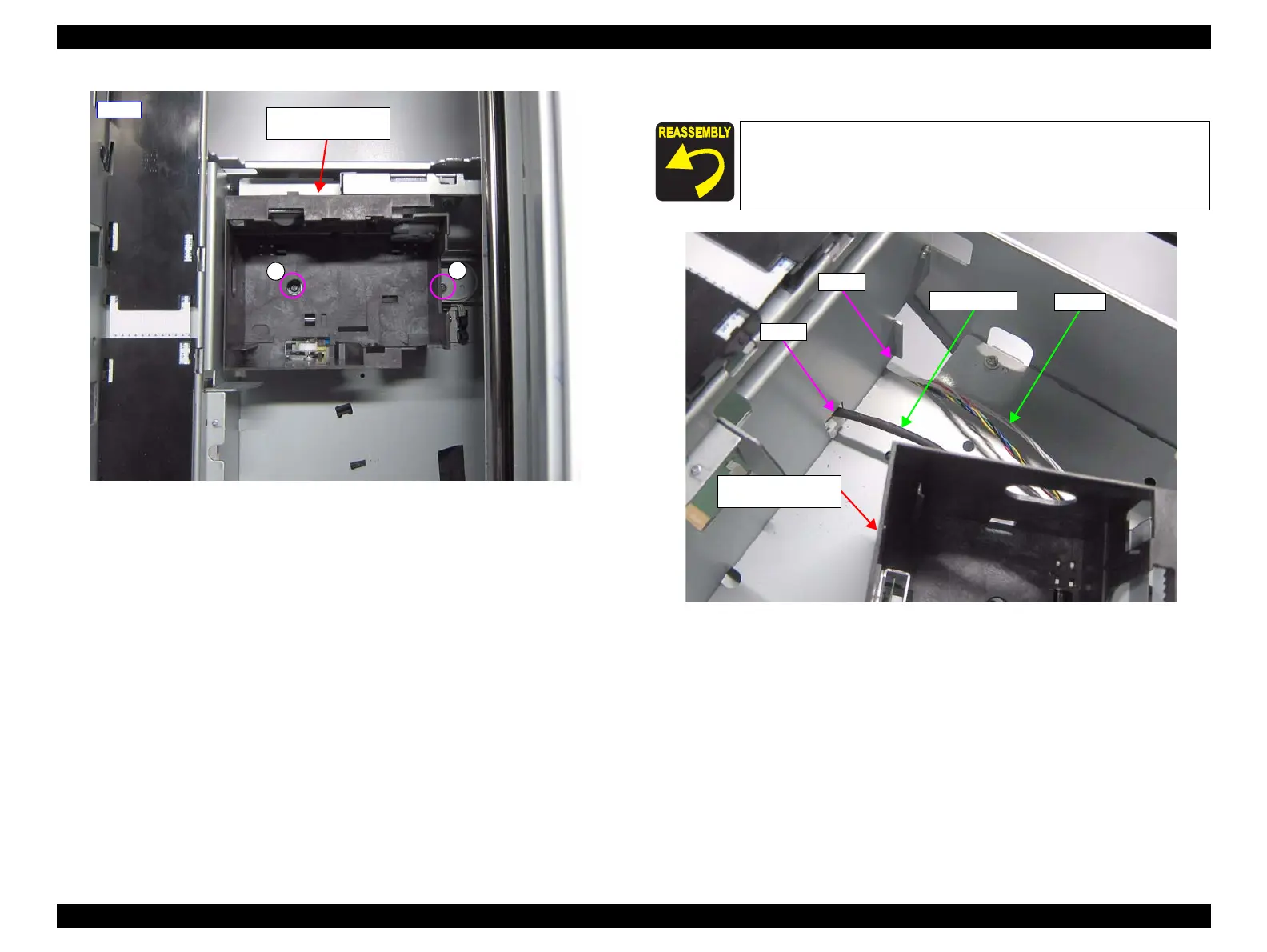

Figure 3-117. Removing the CLOTH WIPER CARRIAGE ASSY (1)
15. Pull out the cables from the two holes on the frame.
Figure 3-118. Removing the CLOTH WIPER CARRIAGE ASSY (2)
A
A
Upper
CLOTH WIPER
CARRIAGE ASSY
Go through the cable (black) into the hole 2. (See Figure 3-118)
CLOTH WIPER
CARRIAGE ASSY
Hole 1
Hole 2
Cables
Cable (Black)
