DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 156
Confidential
3.4.5.16 LEFT INK HOLDER ASSY
x
A D J U S T M E N T
R E Q U I R E D
When replacing this part, refer to “4.1.2 Adjustment Items and
the Order by Repaired Part” (p194) and make sure to perform the
specified operations including required adjustment.
C A U T I O N

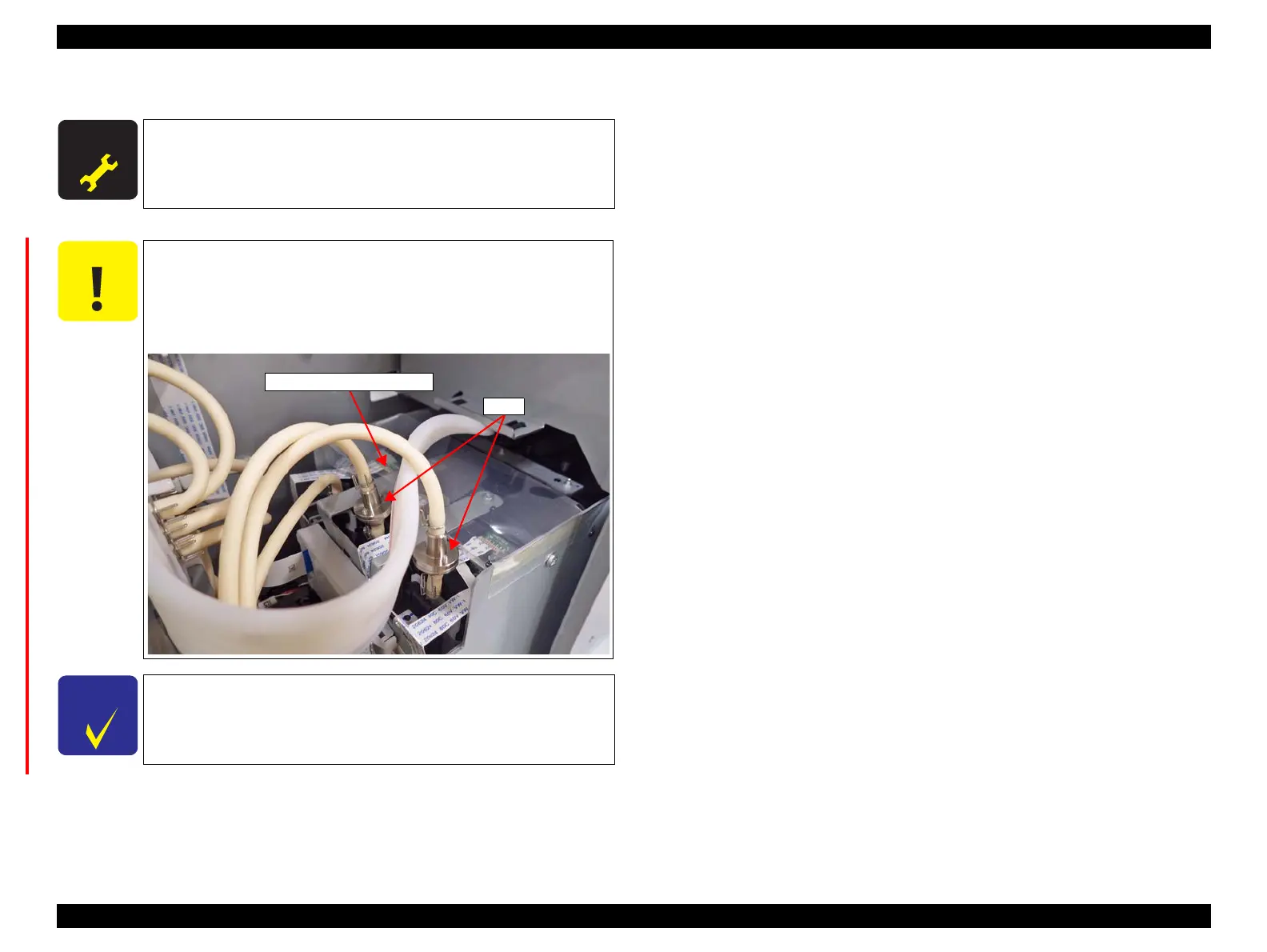

The shape of the INK HOLDER ASSY on the right and the one on
the left differs from each other (with or without valves), so they are
not interchangeable. When replacing the LEFT INK
HOLDERASSY, make sure the part has the valves shown in the
figure below.
C H E C K
P O I N T
Remove film of the INK MISTCAOVER ASSY if attached. (p114)
Valve
LEFT INK HOLDER ASSY
