SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 166
Confidential
13. Pull out the tube while pushing the joint in the direction of the arrow.
14. Release the tube from the clamp.
15. Pull out the tube from the hole on the frame, and remove the INK EJ ASSY.

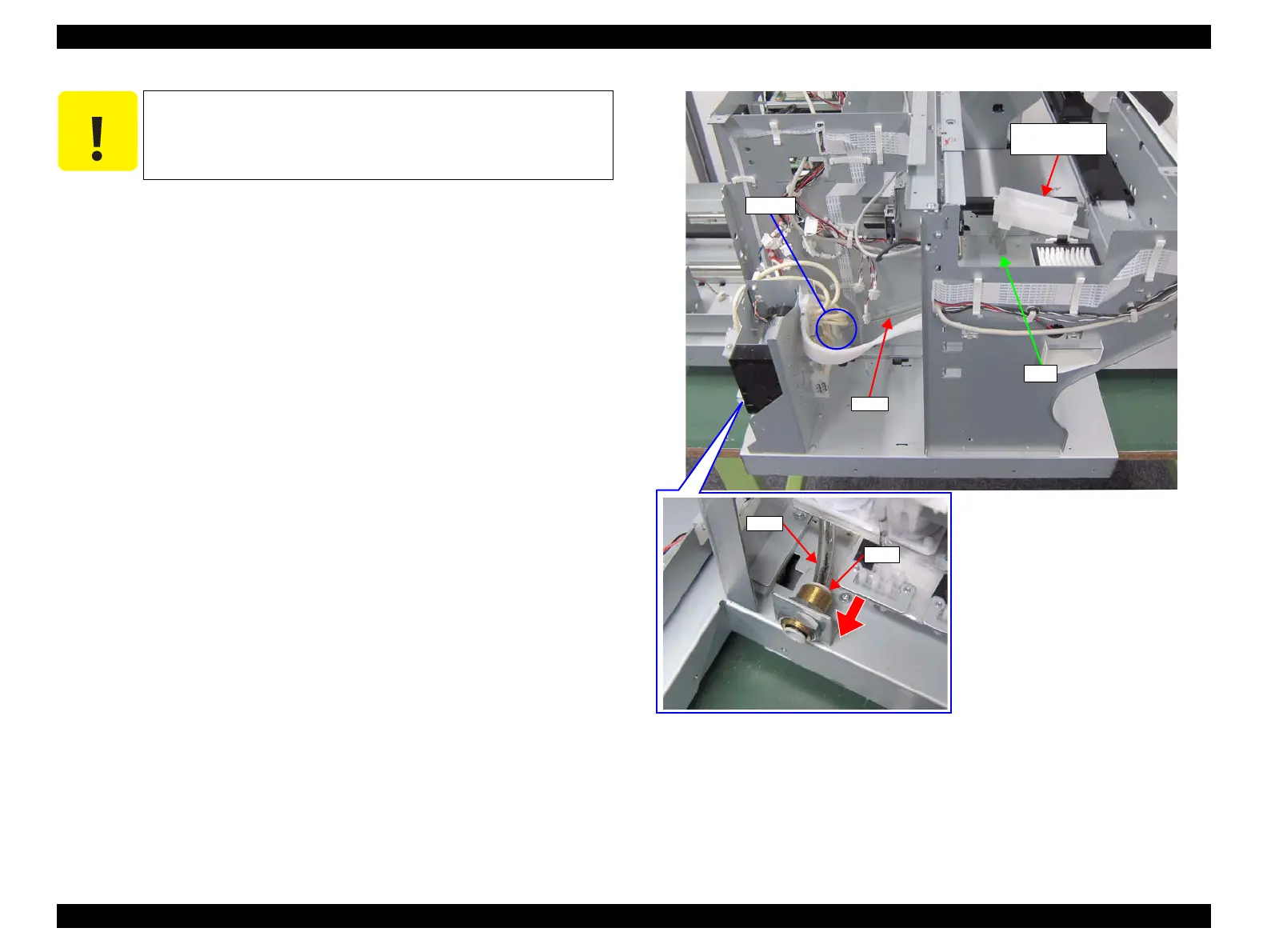

Figure 3-129. Removing the INK EJ ASSY
When the Tube is removed at the following step, waste ink may
drip off from the tube. Prepare a waste cloth in advance
and be careful not to contaminate the surroundings.
INK EJ ASSY
(included tube)
Clamp
Tube
Hole
To Next Page
