DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 165
Confidential
3.4.5.18 INK EJ ASSY
1. Remove the PRINTER COVER. (p72)
2. Remove the RIGHT HOUSING PLATE. (p74)
3. Remove the RIGHT COVER ASSY. (p88)
4. Remove the LEFT HOUSING PLATE. (p73)
5. Remove the LEFT COVER ASSY. (p86)
6. Remove the REAR COVER SUB ASSY. (p77)
7. Remove the REAR COVER. (p79)
8. Remove the LEFT IC COVER SENSOR. (p90)
9. Remove the LEFT IH COVER. (p84)
10. Remove the LEFT INK HOLDER ASSY. (p156)
11. Remove the POROUS PAD FALSH BOX ASSY. (p70)
12. Remove the three screws, and remove the Flashing Box Holder.
A) Silver M3x6 Cup S-tite screw: 3 pcs

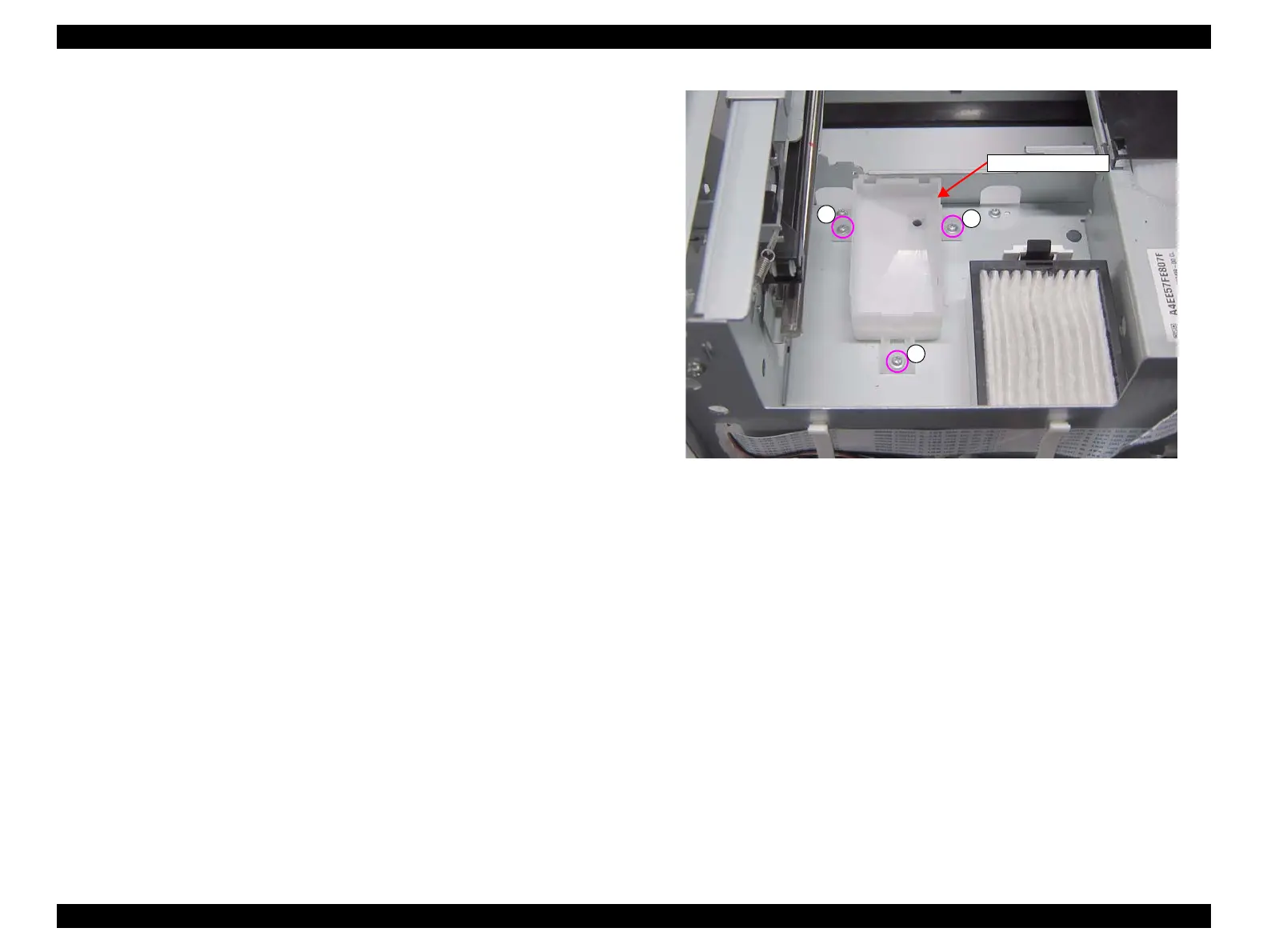

Figure 3-128. Removing the Flashing Box Holder
Flashing Box Holder
A
A
A
