SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 167
Confidential
3.4.6 Table Feed Mechanism
3.4.6.1 FIXING LEVER

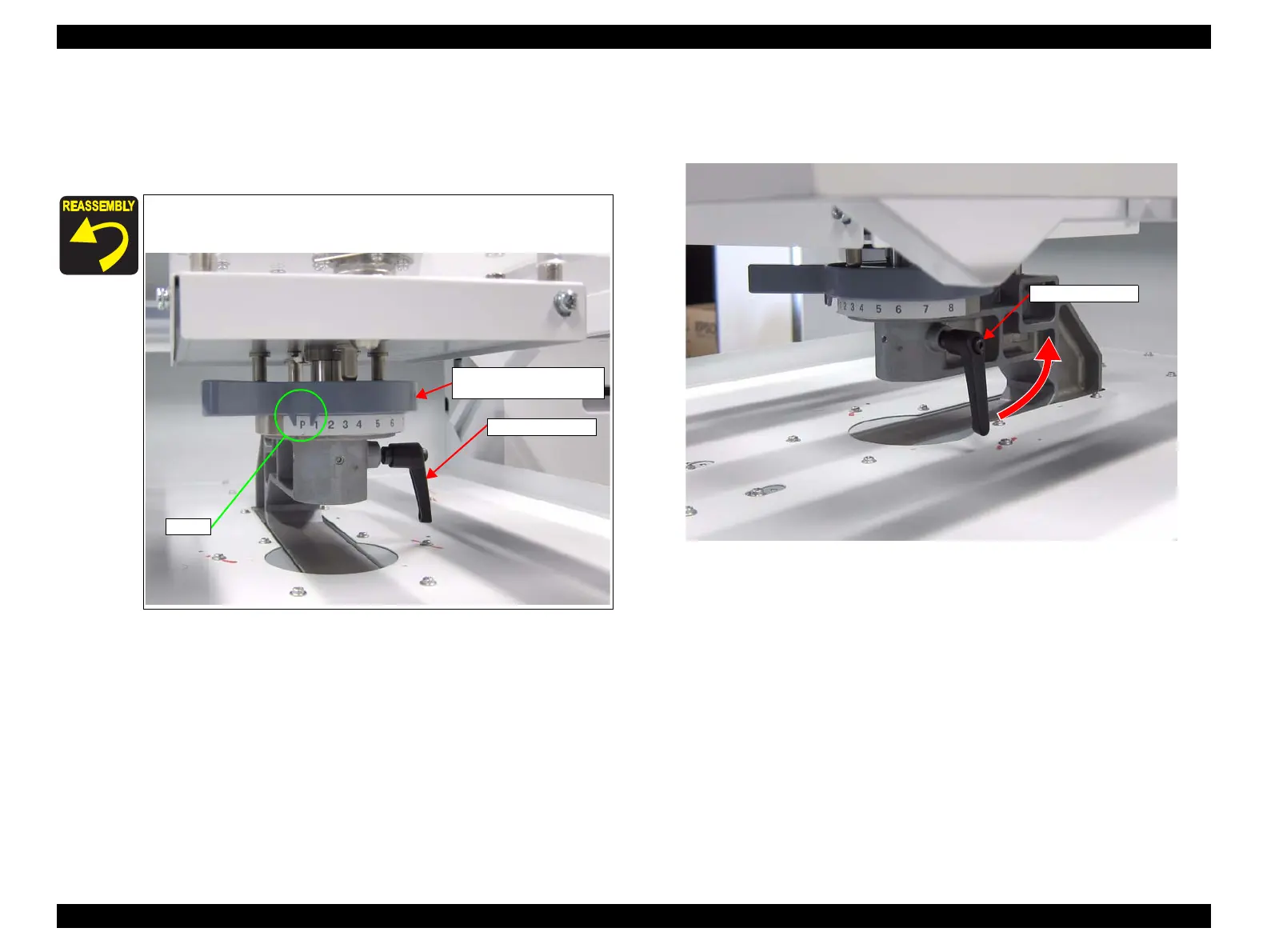

1. Remove the FIXING LEVER while turning it.
Figure 3-130. Removing the FIXING LEVER
Secure the FIXING LEVER while the guide of the HEIGHT
ADJUSTMENT LEVER is placed “P”.
Guide
FIXING LEVER
HEIGHT ADJUSTMENT
LEVER
FIXING LEVER
