Epson SC-F2000 User Manual

SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 168
Confidential
3.4.6.2 PARALLEL ADJUSTMENT PLATE
1. Remove the FIXING LEVER. (p167)
2. Remove the PLATEN. (p71)
3. Remove the screw, and remove the PARALLEL ADJUSTMENT PLATE.
A) Silver M3x4 Bind machine screw: 1 pcs

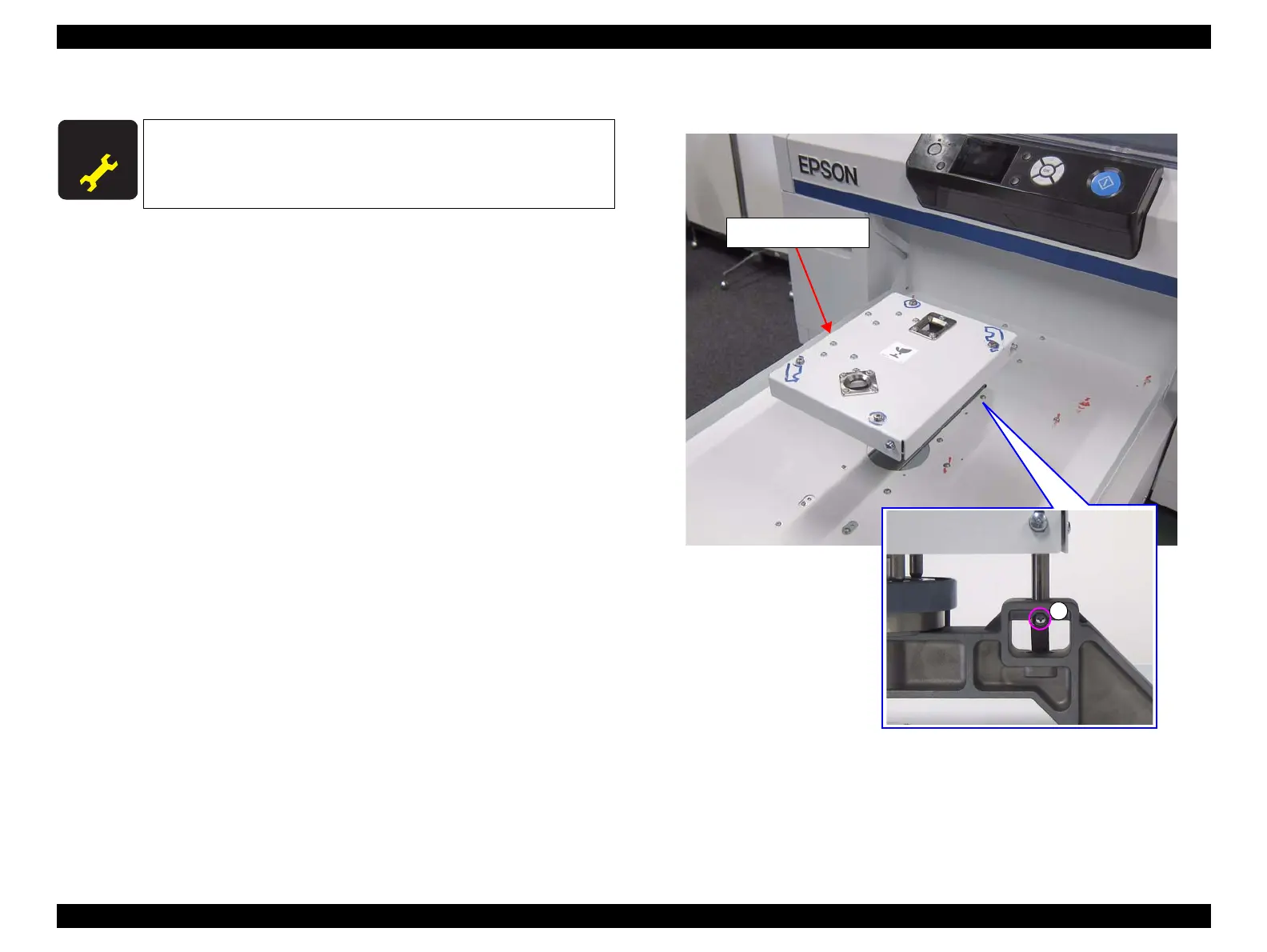

Figure 3-131. Removing the PARALLEL ADJUSTMENT PLATE
A D J U S T M E N T
R E Q U I R E D
When replacing this part, refer to “4.1.2 Adjustment Items and
the Order by Repaired Part” (p194) and make sure to perform the
specified operations including required adjustment.
A
PARALLEL
ADJUSTMENTPLATE
