Epson SC-F2000 User Manual

SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 175
Confidential

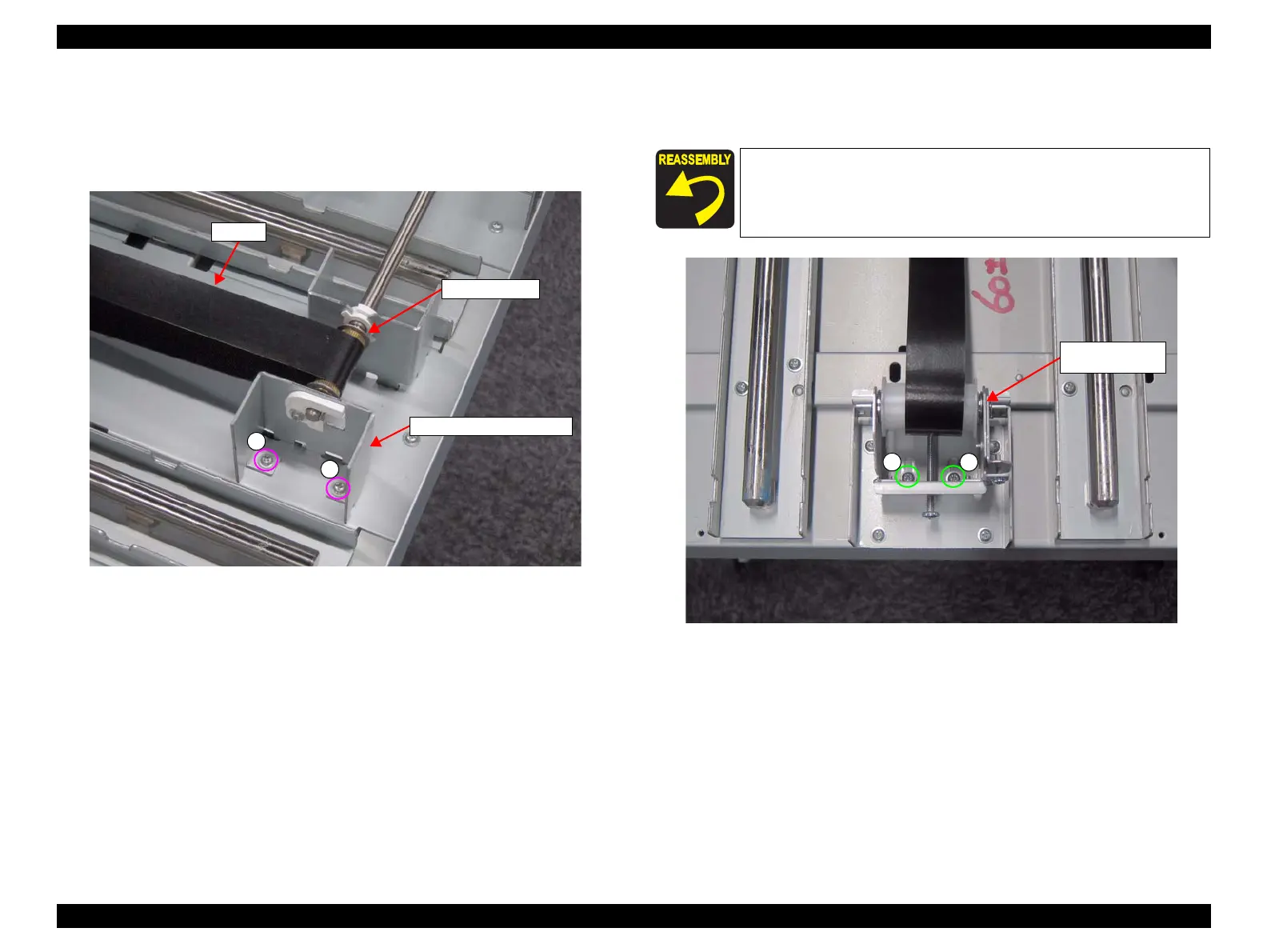

11. Remove the two screws, and remove the Right TF Shaft Frame Assy.
A) Silver M3x6 Cup S-tite screw: 2 pcs
12. Remove the TF Belt from the TF Driven Shaft.
Figure 3-137. Removing the Right TF Shaft Frame Assy
13. Remove the two screws, and remove the TF Driven Pulley Holder.
B) Silver M3x12 S-tite screw with built-in washer: 2 pcs
Figure 3-138. Removing the TF Driven Pulley Holder
TF Driven Shaft
A
A
TF Belt
Right TF Shaft Frame Assy
Perform the TF Belt Position Check & Adjustment (p251).
B
B
TF Driven Pulley
Holder
