SC-F2000 Revision C
ADJUSTMENT Head Related Checks and Adjustments 240
Confidential
[Blue]: Button or menu name on the program screen / [Black]: Button or menu name on the operation panel of the printer
5. Visually check the adjustment pattern and judge whether the adjustment is needed
or not.
For the adjustment method, see
“ PROCEDURE” (Page 240).

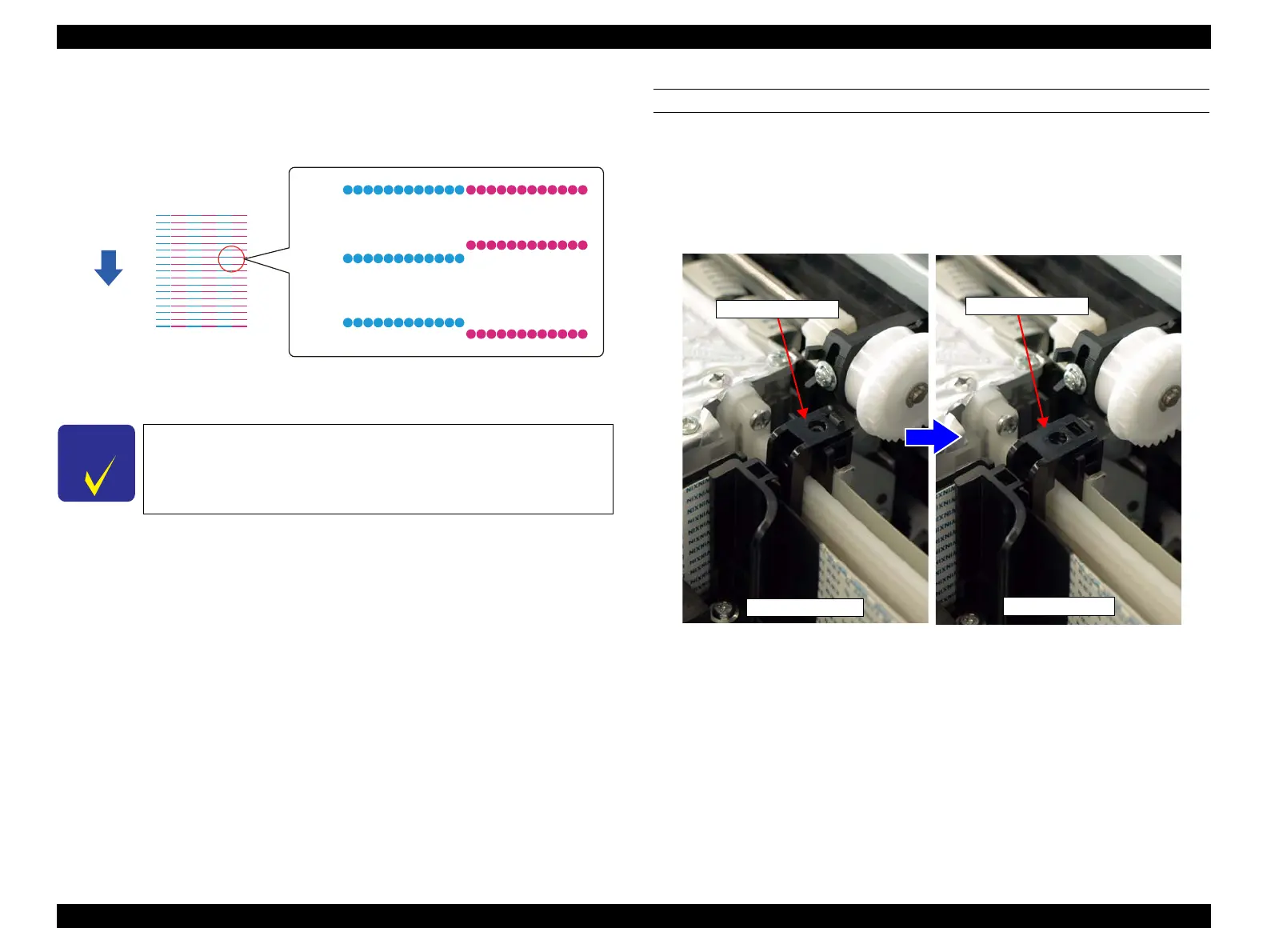

Figure 4-39. Judgment
PROCEDURE
1. Press the F11 key on the keyboard to release the CR lock.
2. Move the CR Unit to the full side.
3. Remove the CR Cover.
(P. 103)
4. Release the hook and disengage the Tube Guide Holder.
Figure 4-40. Disengaging the Tube Guide Holder.
5. Loosen the three fixing screws (A, B, C) that secure the Head Holder by a half turn
in the order given below.
A=>B=>C
The color of the pattern varies depending on the mode of the
printer.
Color Ink Mode/White Ink Mode: Magenta and black
High speed color mode: Magenta and cyan
OK
NG
NG
Paper feed
direction
* Misalignment within one dot can be judged as OK.
Before disengaged
After disengaged
Tube Guide Holder
Tube Guide Holder
To Next Page
