Epson SC-F2000 User Manual

SC-F2000 Revision C
ADJUSTMENT TF Adjustments 267
Confidential
[Blue]: Button or menu name on the program screen / [Black]: Button or menu name on the operation panel of the printer
10. Remove the gauge unit from the origin position adjuster.
11. Set the height of the PLATEN to “8” and secure it with the Fixing Lever.
12. Manually move the TABLE ASSY (PLATEN) slowly to the measurement point.
Check the position of the PLATEN from the hole on the base, and move the
TABLE ASSY until the tip of the gauge comes in contact with a point 5mm from
the end of the PLATEN. The measurement positions and the measuring order are
as follows.

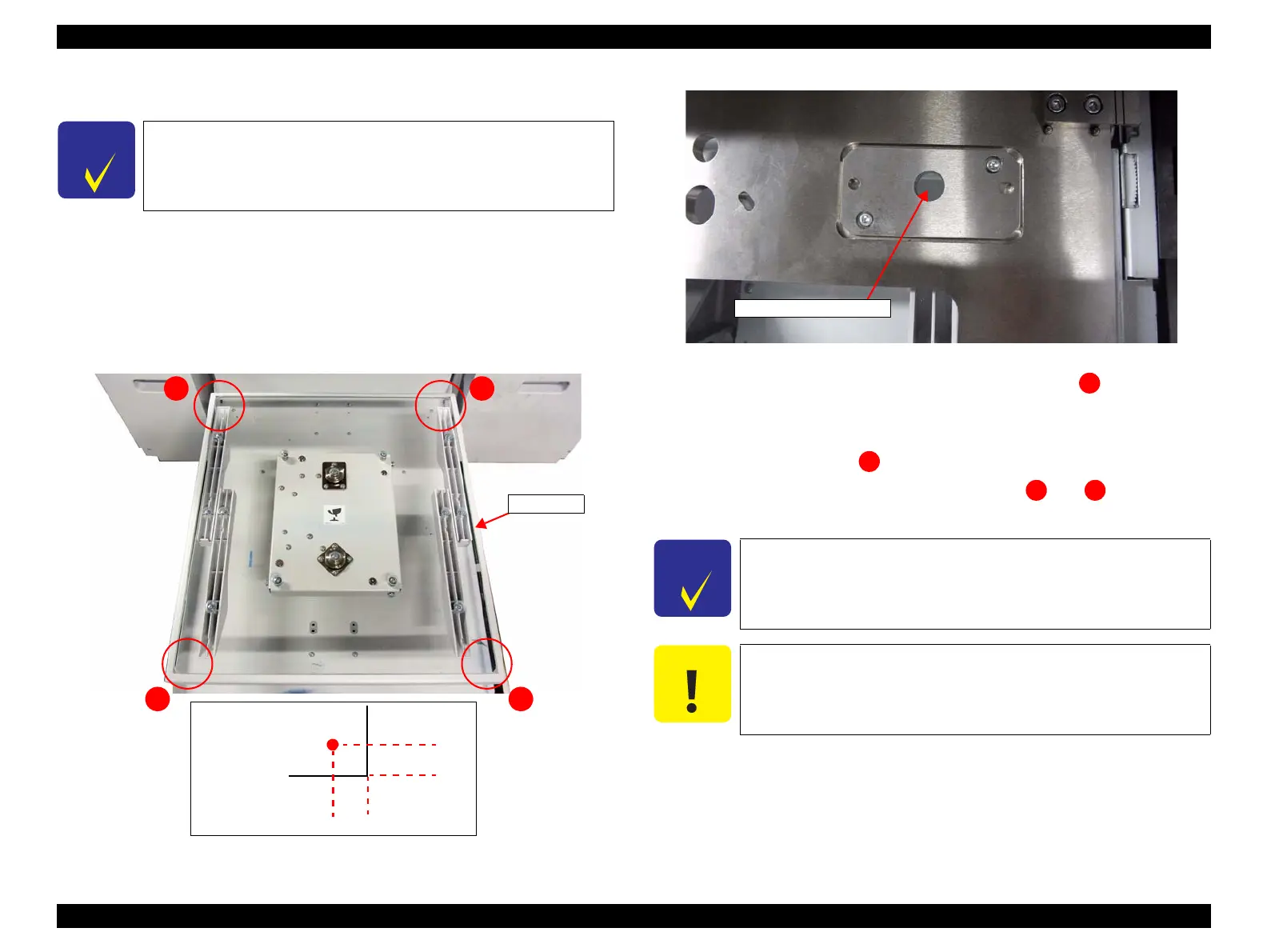

Figure 4-75. The measurement positions and the measuring order for the PLATEN
Figure 4-76. Checking the measurement positions
13. Set the gauge unit on the base and measure the parallelism at and record the
value.
14. Remove the gauge unit.
15. Measure the parallelism at and remove the gauge unit.
16. Move the TABLE ASSY and measure parallelism at and in the same
manner.
17. Calculate the difference between the maximum value and the minimum value
calculated in Step 13 to Step 16.
18. Evaluate the calculated difference for whether it is within the standard or not.
According to the judgment, follow the instruction in “Troubleshooting when color
unevenness and such occurs in the print area” (p.47).
C H E C K
P O I N T
The value on the gauge changes after the gauge is removed from the
adjuster, the value should be changed from “0” is not a problem
and does not affect the result.
12
3 4
PLATEN
5 mm
5 mm
Measurement point
End of PLATEN
C H E C K
P O I N T
Use only one gauge unit at a time when adjusting parallelism. If two
gauge units are used at the same time, adjustment may not be done
correctly.
C A U T I O N
When moving the TABLE ASSY, make sure to remove the gauge
unit from the base. Otherwise, the gauge unit may be damaged.
Check through this hole.
1
2
3
4
