SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 92
Confidential

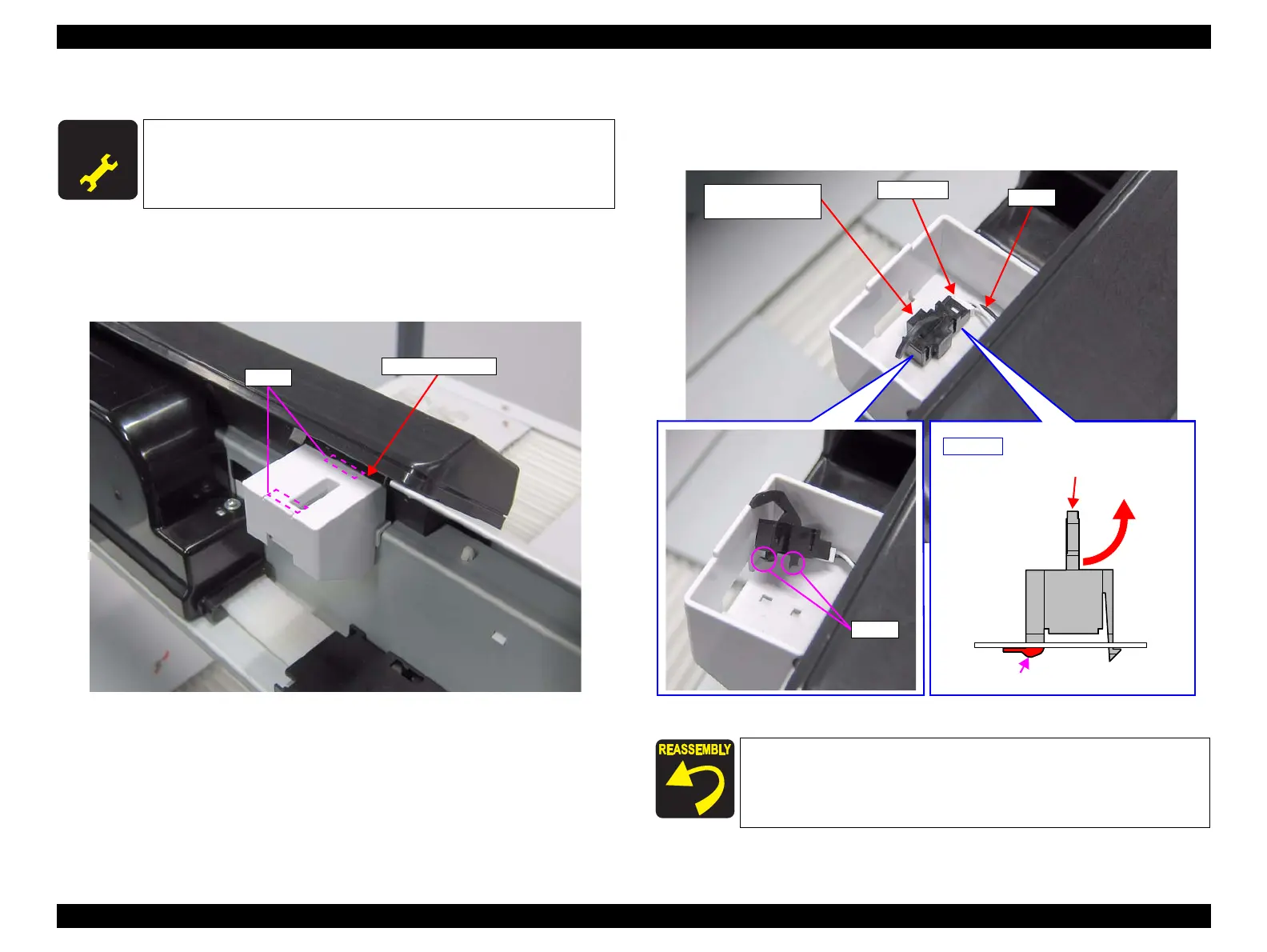

3.4.3.18 PRINTER COVER OPEN SENSOR
1. Open the PRINTER COVER.
2. Disengage the two hooks using flat-blade screwdriver or a similar tool, and
remove the SENSOR COVER.
Figure 3-37. Removing the SENSOR COVER
3. Disengage the two hooks, and remove the PRINTER COVER OPEN SENSOR in
the direction of the arrow.
4. Disconnect the cable from the connector of the sensor.
Figure 3-38. Removing the PRINTER COVER OPEN SENSOR
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p194) and make sure to
perform the specified operations including required adjustment.
Be sure to attach the sensor so that the connector comes inside
of the printer (See Figure 3-38).
Engage the rear hook first when attaching the PRINTER
COVER OPEN SENSOR (See Figure 3-38).
PRINTER COVER
OPEN SENSOR
Connector
Cable
Side view
Hook (rear)
PRINTER COVER OPEN SENSOR
To Next Page
