EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Disassembling the Printer Mechanism 101

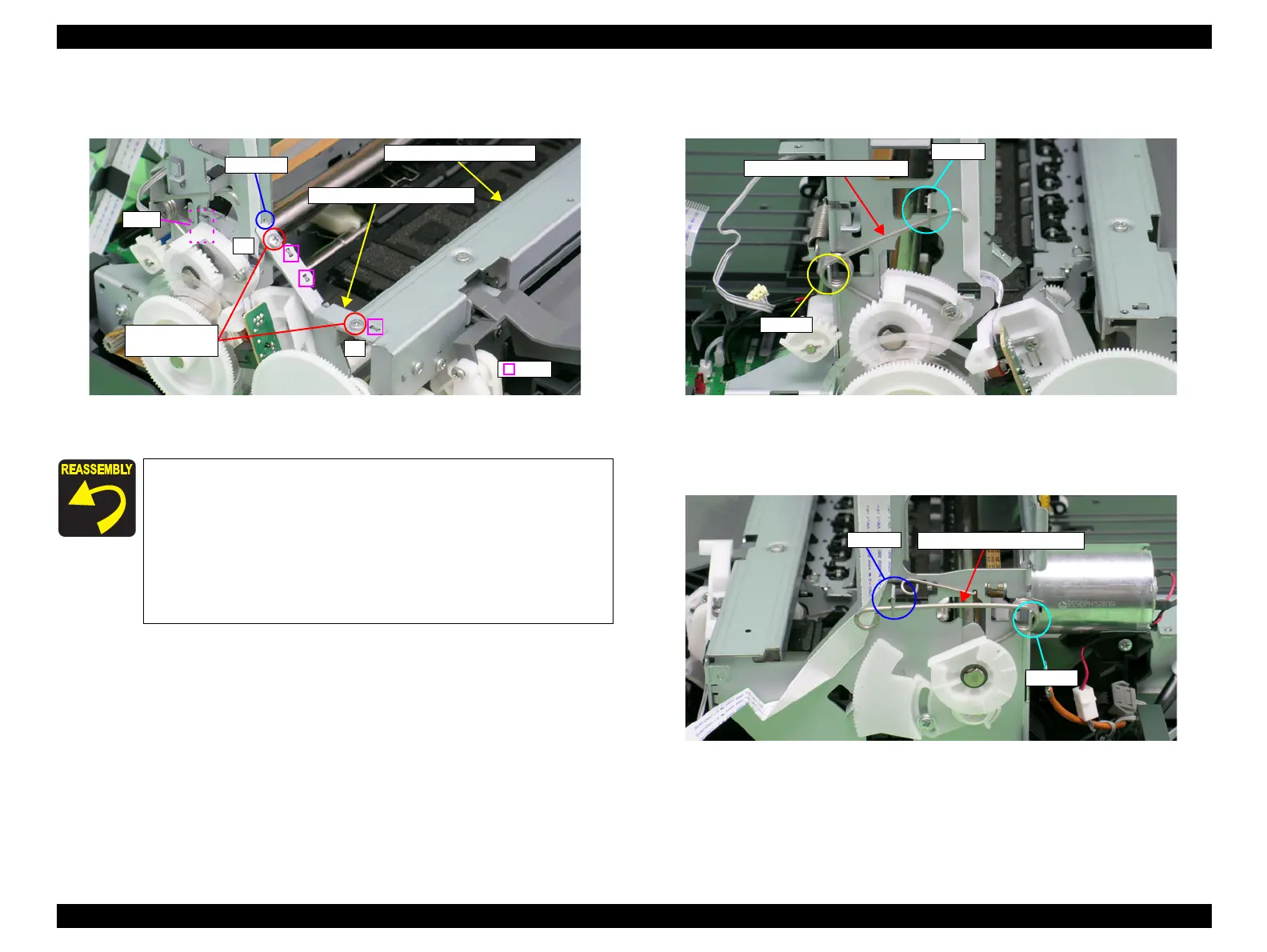

6. Remove the two C.B.S. M3 x 6 screws that secure the Frame Support Plate (Left),
and remove it.
Figure 4-68. Removing the Left Frame Support Plate
7. Remove the foot of Left PG Torsion Spring from tab A, and remove the coil
section from tab B to remove Left PG Torsion Spring from the Main Frame.
Figure 4-69. Removing the Left PG Torsion Spring
8. Remove the foot of Right PG Torsion Spring from tab A, and remove the coil
section from tab B to remove the Right PG Torsion Spring from the Main Frame.
Figure 4-70. Removing the Right PG Torsion Spring
 Insert the Left Frame Support Plate into the notch on the Main
Frame. See Figure 4-68.
 Align the two tabs on the Main Frame and the tab on the Paper
EJ Frame Assy with the three positioning holes on the Frame
Support Plate (Left). See Figure 4-68.
 Align the tab (rear side) of the Left Frame Support Plate with the
outside of the Left CR Shaft Mounting Plate. See Figure 4-68.
 Tighten the screws in the order shown in Figure 4-68
1
2
2) C.B.S. M3x6
(8±1 kgf.cm)
Tab
Tabs
Left Frame Support Plate
Paper EJ Frame Assy
Notch
Left PG Torsion Spring
Tab A
Tab B
Right PG Torsion Spring
Tab A
Tab B

Epson Stylus Photo R2000 Series Specifications

General

Print Technology	Inkjet
Max Print Resolution	5760 x 1440 optimized dpi
Number of Ink Colors	8
Borderless Printing	Yes
Operating Systems	Windows, Mac OS
Ink Type	UltraChrome Hi-Gloss 2
Ink Colors	Cyan, Magenta, Yellow, Red, Orange, Matte Black, Photo Black, Gloss Optimizer
Ink Droplet Size	1.5 picoliters
Connectivity	USB, Ethernet, Wi-Fi
Media Sizes Supported	4" x 6", 5" x 7", 8" x 10", 11" x 14", 13" x 19"
Media Types Supported	Plain paper, photo paper, fine art paper, canvas
Interface	USB, Ethernet
