Epson Stylus Photo R2000 Series User Manual

EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Disassembling the Printer Mechanism 117

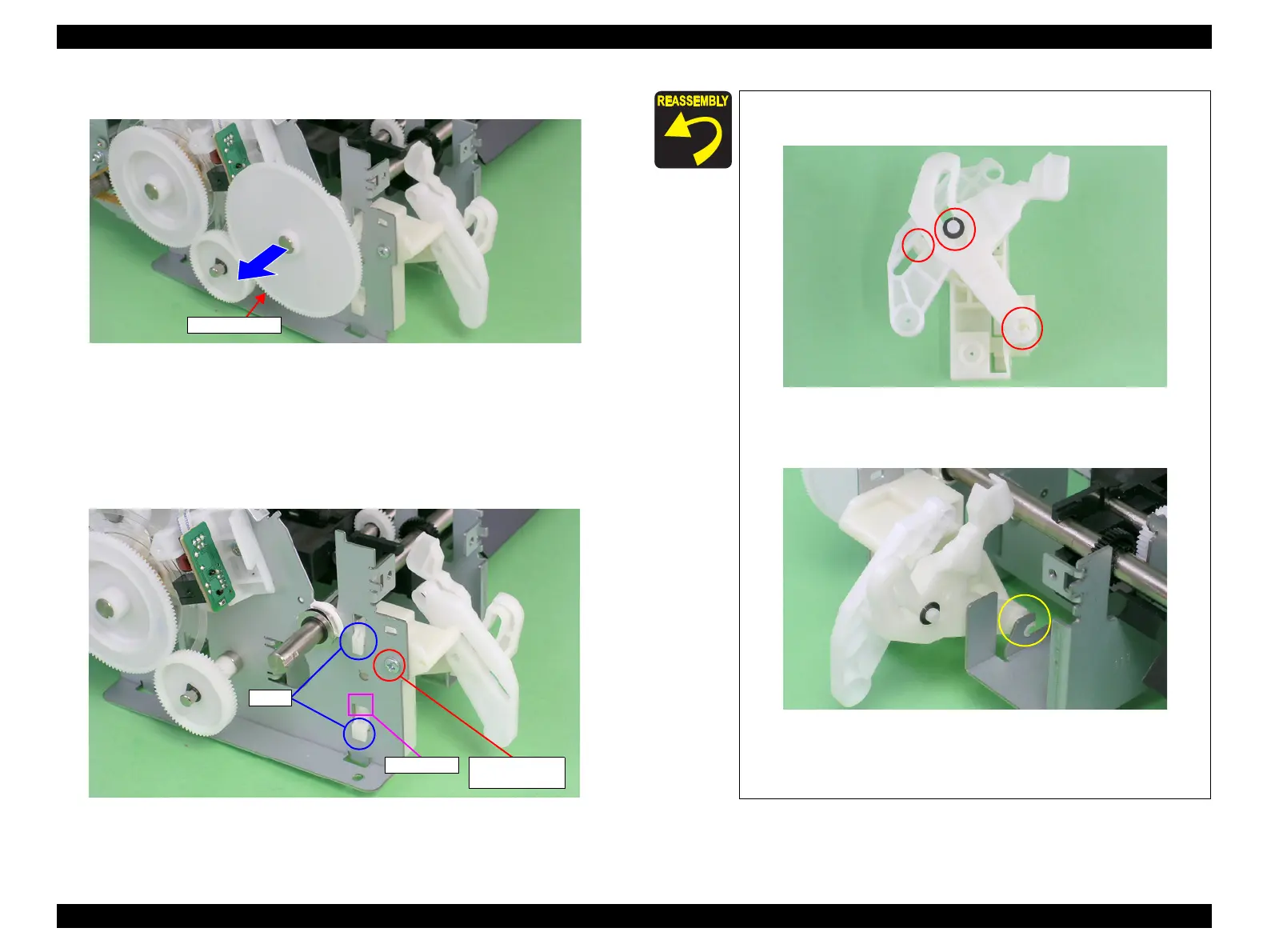

6. Remove the Spur Gear 68 from the Paper EJ Roller Shaft.
Figure 4-115. Removing the Spur Gear 68
7. Remove the C.B.P. M3 x 6 screw that secures the Left CDR Release Lever Sub
Assy.
8. Press the small tab of the Left CDR Release Lever Sub Assy with a flathead
screwdriver, and remove the Left CDR Release Lever Sub Assy upward from the
Main Frame.
Figure 4-116. Removing the Left CDR Release Lever Sub Assy
Spur Gear 68
Tabs
Small tab 9) C.B.P. M3x6
(6±1 kgf.cm)
 Make sure that the Left CDR Release Lever Sub Assy is
correctly assembled as shown in the figure below.
Figure 4-117. Reinstalling the Left CDR Release Lever Sub Assy (1)
 Align the Shaft and Bushing.
Figure 4-118. Reinstalling the Left CDR Release Lever Sub Assy (2)
 Align the two tabs on the Left CDR Release Lever Sub Assy with
the positioning holes on the Main Frame. (See Figure 4-116.)
