Epson Stylus Photo R2000 Series User Manual

Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Stylus Photo R2000/R2000s Disassembly 188
 Panel Unit
1. Remove the screws (C.B.P 3x10) (x2)that secure the Panel Unit.
Figure 8-7. Remove the Panel Unit (1)
2. Disconnect the Panel FFC and CDR Sensor cable from the Panel Board.
Figure 8-8. Remove the Panel Unit (2)
 Be careful not to get the Panel FFC caught underneath
the hooks on the Panel FFC Cover

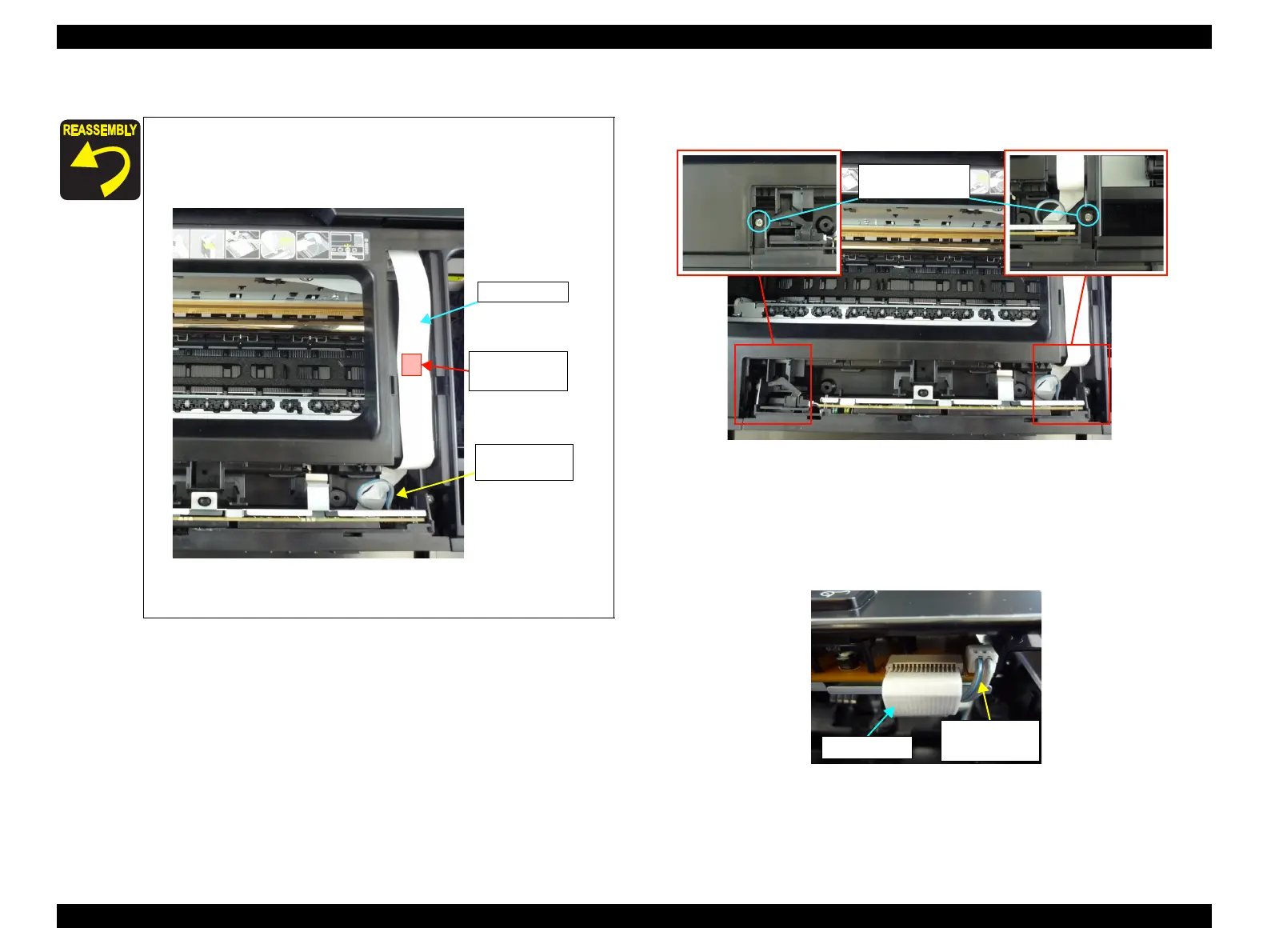

 Secure the Panel FFC with double-sided tape as follows.
Panel FFC
CDR Sensor
Cable
Double-sided
tape
Figure 8-6. Panel FFC
C.B.P 3x10
(6±1kgf.cm)
Panel FFC
CDR Sensor
Cable

Epson Stylus Photo R2000 Series Specifications

General

Print Technology	Inkjet
Max Print Resolution	5760 x 1440 optimized dpi
Number of Ink Colors	8
Borderless Printing	Yes
Operating Systems	Windows, Mac OS
Ink Type	UltraChrome Hi-Gloss 2
Ink Colors	Cyan, Magenta, Yellow, Red, Orange, Matte Black, Photo Black, Gloss Optimizer
Ink Droplet Size	1.5 picoliters
Connectivity	USB, Ethernet, Wi-Fi
Media Sizes Supported	4" x 6", 5" x 7", 8" x 10", 11" x 14", 13" x 19"
Media Types Supported	Plain paper, photo paper, fine art paper, canvas
Interface	USB, Ethernet
